RS roller chain

Product Photos
  • The new generation roller chain "G8" series has debuted, bringing together elemental technologies!
  • This is a roller chain that complies with ISO "A".
  • By developing a rust-preventing lubricant that reduces stickiness, we have achieved a wear life that is 1.2 times longer than the previous model, the G7-EX.
  • *Sizes RS35 and smaller are the same as previous models.

Banner Image

Features

  • ・Amazingly long wear life

    For the previous model, the "G7-EX," Tsubaki developed seamless "solid bush" using its unique processing technology.

    High-precision solid bush and special lube dimple (LD) processing improve the lubricant retention effect, achieving twice the wear life.

    For the current model "G8" series, we have developed our own anti-rust lubricant that improves stickiness, achieving a wear life 1.2 times longer than the G7.

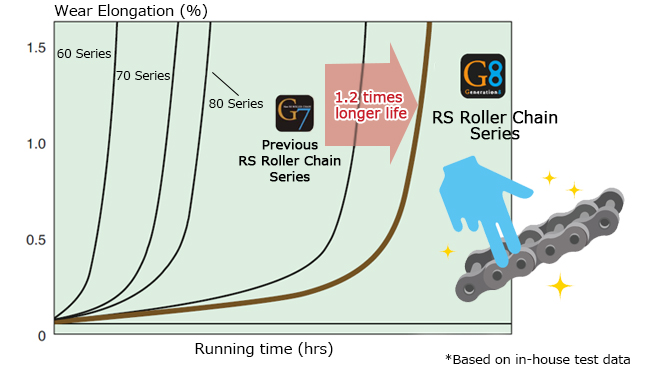

  • - Changes in wear life of Tsubaki RS roller chain

    Change in wear life

When selecting sprocket specifications

It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications.

Use standard steel RS sprockets with RS roller chain.

Please see the chain and sprocket compatibility chart here.

Chain and sprocket compatibility table

Catalogs and Instruction Manuals

Product List

*Click to display detailed information.

Pitch
mm		 No. of strands Size & No. of strands
(Size & specifications & No. of strands)		 Roller diameter
(Bush diameter)
mm		 Inner link
Inner width
mm		 Pitch
mm		 No. of strands Size & No. of strands
(Size & specifications & No. of strands)		 Roller diameter
mm		 Inner link
Inner width
mm
4.7625 1 RS15-1 2.48 2.38 38.10 1 RS120-1 22.23 25.40
6.35 1 RS25-1 3.30 3.18 2 RS120-2
2 RS25-2 3 RS120-3
3 RS25-3 4 RS120-4
1 BF25-H-1 5 RS120-5
9.525 1 RS35-1 5.08 4.78 6 RS120-6
2 RS35-2 44.45 1 RS140-1 25.40 25.40
3 RS35-3 2 RS140-2
12.70 1 RS37-1 7.80 3.40 3 RS140-3
1 RS38-1 7.80 4.80 4 RS140-4
1 RS41-1 7.77 6.38 5 RS140-5
1 RS40-1 7.92 7.95 6 RS140-6
2 RS40-2 50.80 1 RS160-1 28.58 31.75
3 RS40-3 2 RS160-2
4 RS40-4 3 RS160-3
5 RS40-5 4 RS160-4
6 RS40-6 5 RS160-5
15.875 1 RS50-1 10.16 9.53 6 RS160-6
2 RS50-2 57.15 1 RS180-1 35.71 35.72
3 RS50-3 2 RS180-2
4 RS50-4 3 RS180-3
5 RS50-5 4 RS180-4
6 RS50-6 5 RS180-5
19.05 1 RS60-1 11.91 12.70 6 RS180-6
2 RS60-2 63.50 1 RS200-1 39.68 38.10
3 RS60-3 2 RS200-2
4 RS60-4 3 RS200-3
5 RS60-5 4 RS200-4
6 RS60-6 5 RS200-5
25.40 1 RS80-1 15.88 15.88 6 RS200-6
2 RS80-2 76.20 1 RS240-1 47.63 47.63
3 RS80-3 2 RS240-2
4 RS80-4 3 RS240-3
5 RS80-5 4 RS240-4
6 RS80-6 5 RS240-5
31.75 1 RS100-1 19.05 19.05 6 RS240-6
2 RS100-2 101.6 1 RF320-T-1 63.50 63.65
3 RS100-3 2 RF320-T-2
4 RS100-4 3 RF320-T-3
5 RS100-5 4 RF320-T-4
6 RS100-6 127.0 1 RF400-T-1 79.38 79.3
2 RF400-T-2
3 RF400-T-3
4 RF400-T-4
