Product Info Plastic modular chain
Plastic modular chain is a type of conveyor belt that can achieve a wide conveying surface by combining plastic modular links like bricks, and is available in wide and mold-to-width types.
Chain types such as "closed type," "open type," "net type," "flight type," "rubber type," and "magnet type" can be selected according to the application and shape of the transported goods.
We also have a wide range of conveyor peripheral parts, such as dedicated sprockets, idlers, Plastic rail, chain guide parts, and bearing units.
table of contents
Plastic modular chain Related Information
-
Selection
-
Materials
-
Operation
Features of Plastic modular chain
Common Features
- Feature 1: All parts are made of plastic, making it lightweight and easy to handle. >>See details
- Feature 2: Chain can be easily cut and connect, allowing for partial repairs and reduced maintenance time. >>See details
- Feature 3: A wide range of layouts are possible with the extensive lineup >>See details
All parts are made of plastic, making them lightweight and easy to handle
Plastic modular chain are made up of three plastic components: "module links," "pins," and "plugs," and are much lighter than metal chains.
Chain can be easily cut and connect, allowing for partial repairs and reduced maintenance time.
No special tools are required for disconnection and connection, making the process easy. Please refer to the instruction manual for each product for instructions on how to disassemble and connect each part.
| Wide type pinning method | mold-to-width type pinning method | |||
|---|---|---|---|---|
| Slide plug | plug | Snap attachment | Slit pin | Special stepped plastic pin |
 |
 |
 |
 |
 |
A wide range of layouts are possible thanks to the extensive lineup
It can be used in a variety of layouts, environments and locations, including not only horizontal conveyance but also inclined conveyance, 90-degree, 180-degree and S-curve conveyance, forward and reverse conveyance, and shower equipment.
| Inclined conveyance | S-curve conveyance | Forward and reverse transport |
|---|---|---|
 |
 |
 |
Features of the wide and mold-to-width types
This chain has a single module configuration, while retaining the advantages of plastic modular chain, which allows for standardization of conveyor design when used in combination with wider types from the same series.
Ideal for conveying materials in single strand from wide conveyors or for dividing the stream.
hinge
Chain Type

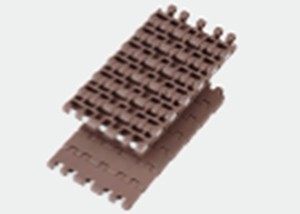

Closed type
- - The top surface of the plate is smooth and has no holes
- - Lineup of magnet types with magnets built into the chain

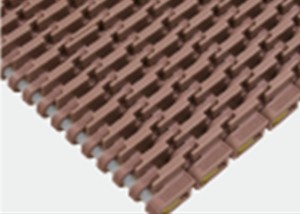

Transover type
- ・One side of the main body is tapered, allowing for 90-degree rotation and transfer
- ・Used at the connection point of orthogonal conveyors to eliminate remaining conveyed material
- - There is a right-hand tapered and a left-hand tapered in the direction of travel.
- *Taper: A state in which the diameter, width, thickness, etc. of a long, slender structure tapers off.

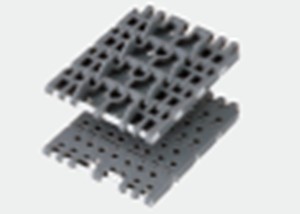

Open type
- - There is a hole on the top surface of the plate
- - Superior cleaning performance compared to closed types, ideal for draining and cooling applications

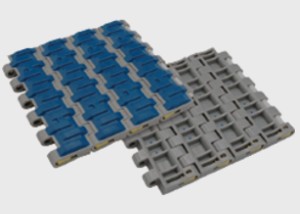

Rubber type
- - High friction type with rubber two-color molding (integral molding) on the conveying surface
- ・The inclined conveyance of the plate upper surface prevents the case and other conveyed items from slipping.
mold-to-width type list
Chains from the same series have the same chain pitch value.
-
WT0700 series
(Chain pitch: 7.5mm)- Closed type
-
BT4 Series
(Chain pitch: 12.7mm)- Closed type
-
WT1500 Series
(Chain pitch: 15mm)- Closed type
- Transover type
-
WT1510 Series
(Chain pitch: 15mm)- Closed type
-
BT8 Series
(Chain pitch: 25.4mm)- Closed type
- Open type
-
WT2500 Series
(Chain pitch: 25.4mm)- Closed type
- Transover type
-
WT2510 Series
(Chain pitch: 25.4mm)- Closed type
-
WT2520 Series
(Chain pitch: 25.4mm)- Closed type
- Rubber type
-
WTM2530 Series
(Chain pitch: 25.4mm)- Closed type
-
WT3000 Series
(Chain pitch: 30mm)- Closed type
-
WT3080 Series
(Chain pitch: 30mm)- Closed type
- Open type
-
WT3830 Series
(Chain pitch: 38.1mm)- Closed type
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 7.5 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT0705-M |
 |
|
| Chain width mm | 30 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 12.7 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | BTC4-M |
 |
|
| Chain width mm | 50 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 15 | ||
|---|---|---|---|
| Purpose | For straight running | ||
| Chain Type | Closed type | ||
| - | Transover type | ||
| Main body chain specifications | - | ||
| Pin Type | - | ||
| Pin Material | - | ||
| Pin Shape | - | ||
| Top plate thickness mm | - | ||
| Pusher Material | - | ||
| Other features | Meandering prevention attachment available | Meandering prevention attachment available For 90 degree conversion transfer |
|
| Model | WT1505G-M | WT1505GTO-M | WT1505TOD-M |
 |
 |
 |
|
| Chain width mm | 75.8 | 82.8, 158.8 | 160 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 15 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WT1515G-M |
 |
|
| Chain width mm | 50, 100 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 | ||
|---|---|---|---|
| Purpose | For straight running | ||
| Chain Type | Closed type | Open type | |
| - | Magnet type | - | |
| Main body chain specifications | - | ||
| Pin Type | - | ||
| Pin Material | - | ||
| Pin Shape | - | ||
| Top plate thickness mm | - | ||
| Pusher Material | - | ||
| Other features | - | ||
| Model | BTC8H-M | BTM8H-M | BTO8-M |
 |
 |
 |
|
| Chain width mm | 82.6 | 83 | |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 | ||
|---|---|---|---|
| Purpose | For straight running | ||
| Chain Type | Closed type | ||
| - | Transover type | ||
| Main body chain specifications | - | ||
| Pin Type | - | ||
| Pin Material | - | ||
| Pin Shape | - | ||
| Top plate thickness mm | - | ||
| Pusher Material | - | ||
| Other features | - | Meandering prevention attachment available | Meandering prevention attachment available For 90 degree conversion transfer |
| Model | WT2505-M | WT2505G-M | WT2505TOD-M |
 |
 |
 |
|
| Chain width mm | 82.6, 114.3 | 160, 236.2 | |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WT2515G-M |
 |
|
| Chain width mm | 83.8 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Magnet type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WTM2535G-M |
 |
|
| Chain width mm | 82.6 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 | |
|---|---|---|
| Purpose | For straight running | |
| Chain Type | Closed type | |
| - | Rubber type | |
| Main body chain specifications | - | |
| Pin Type | - | |
| Pin Material | - | |
| Pin Shape | - | |
| Top plate thickness mm | - | |
| Pusher Material | - | |
| Other features | - | |
| Model | WT2525-M | WT2525VG-M |
 |
 |
|
| Chain width mm | 100 | |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 30 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WT3005G-M |
 |
|
| Chain width mm | 75.8, 113.8 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 30 | |
|---|---|---|
| Purpose | For curved transport | For straight running |
| Chain Type | Closed type | Open type |
| - | ||
| Main body chain specifications | - | |
| Pin Type | - | |
| Pin Material | - | |
| Pin Shape | - | |
| Top plate thickness mm | - | |
| Pusher Material | - | |
| Other features | - | Meandering prevention attachment available |
| Model | WT3085-C | WT3086G-M |
 |
 |
|
| Chain width mm | 82.6 | 84.5 |
Lineup
*Click on the format to display detailed information.
| Chain pitch mm | 38.1 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WT3835G-M |
 |
|
| Chain width mm | 82.6 |
