Helical gear head GMTK

Product Photos
  • General-purpose gear heads for servo applications achieving high economic efficiency and short lead-time.
  • The GMTK helical gearhead is a high-efficiency type with a parallel shaft.
  • Supports Foot mount, flange mounting, and face mounting.
  • Output shaft: solid
  • Compatible servo motor: 0.2 to 2.0kW Reduction ratio: 1/5 to 1/200

Features

  • Economy

    We have adapted general-purpose gearheads for servo applications, allowing us to deliver products economically and with Quick delivery.

  • -High efficiency

    Highly efficient helical gears are used, making the most of the servo motor's capabilities.

  • ・Low noise and long life

    The reducer unit provides low-noise operation and long service life that were achieved through our years of experience manufacturing gear motors.

  • ・Installation direction is free

    There are no restrictions on installation angle, such as horizontal, vertical, or tilt.

  • ・Output shaft backlash (approximate value)

    Unit: minutes
    Reduction ratio 5～10 15～100 120～200
    angle 70 40 30

    *This is not a guaranteed value.

Mounting type and output shaft rotation direction

L U F
Illustrated Illustrated Illustrated
[Output shaft rotation direction]
Two-stage type: Same direction as input
3-stage type: opposite direction to input
[Output shaft rotation direction]
Two-stage type: Same direction as input
3-stage type: opposite direction to input

Catalogs and Instruction Manuals

Model number display example


GMTK 0738 U 30 - □□□C
｜
type		 ｜
size		 ｜
Mounting Type		 ｜
Reduction ratio		 ｜
Mount Code
L: Foot mount
U: Face mount type
F: Flange mounting		 (clamp type)

■ Tsubaki model No. navigation

Selectable model number:

View product details

*To generate the correct model number, select items in order from left to right.

Type Name size Frame No. Mounting Type Reduction ratio Shaft arrangement Mount Code

20

30


5～60

5～200






Please refer to the motor mount dimension diagram below.
Please refer to the following.
Please select the mount code.

Type Name

HMTK: Right-angle shafttype using hypoid gears.

GMTK: A parallel shaft type that uses helical gears.

size

Indicates the rated input capacity.

Frame No.

This indicates the size of the reducer. For most models, this is the same value as the output shaft diameter.

It is automatically determined from the motor capacity and reduction ratio.

Mounting Type

L: Foot mount mounted type.

U: Face-mounted type.

F: Flange mounting type.

Face mount or flange mount?
It is automatically determined by the frame number.

Reduction ratio

Indicates the reduction ratio.

The range division corresponds to the frame number.

Shaft arrangement

For HMTK type

No symbol: If the mounting format is a hollow shaft type (H), the shaft arrangement symbol is not required.

S: When the mounting format is face mount (U), the solid output shaft protrudes toward the mounting surface.

T: A type with a solid output shaft on both sides.

For GMTK type

No symbol: No shaft arrangement symbol is required.

Mount Code

Specify the mount code that matches the motor you are installing.

Product List

*Click on the model number to display detailed information. Open all Close all

Rated input 0.2kW (Model number GMTK02~)

Rated input 0.4kW (Model number GMTK04~)

Mount Code Reduction ratio Foot mount type Face mount type Flange mounting type




Lower motor mount
Please refer to the dimension drawing.
Select Mount Code
Please do.

 1/5 GMTK0424L5 GMTK0424U5 Face mount type
+
UFS27 (eccentric type)
UFS25 (eccentric, small)
UFM26 (concentric type)
1/10 GMTK0424L10 GMTK0424U10
1/15 GMTK0424L15 GMTK0424U15
1/20 GMTK0424L20 GMTK0424U20
1/25 GMTK0424L25 GMTK0424U25
1/30 GMTK0428L30 GMTK0428U30 Face mount type
+
UFS37 (eccentric type)
UFM39 (concentric type)
1/40 GMTK0428L40 GMTK0428U40
1/50 GMTK0428L50 GMTK0428U50
1/60 GMTK0428L60 GMTK0428U60
1/80 GMTK0428L75 GMTK0428U75
1/100 GMTK0438L100 GMTK0438U100 Face mount type
+
UFM48 (concentric type)
1/120 GMTK0438L120 GMTK0438U120
1/160 GMTK0438L165 GMTK0438U165
1/200 GMTK0438L200 GMTK0438U200
Back to top of this page

Rated input 0.75kW (Model number GMTK07~)

Mount Code Reduction ratio Foot mount type Face mount type Flange mounting type










Lower motor mount
Please refer to the dimension drawing.
Select Mount Code
Please do.

 1/5 GMTK0728L5 GMTK0728U5 Face mount type
+
UFS37 (eccentric type)
UFM39 (concentric type)
1/10 GMTK0728L10 GMTK0728U10
1/15 GMTK0728L15 GMTK0728U15
1/20 GMTK0728L20 GMTK0728U20
1/25 GMTK0728L25 GMTK0728U25
1/30 GMTK0738L30 GMTK0738U30 Face mount type
+
UFM48 (concentric type)
1/40 GMTK0738L40 GMTK0738U40
1/50 GMTK0738L50 GMTK0738U50
1/60 GMTK0738L60 GMTK0738U60
1/80 GMTK0738L75 GMTK0738U75
1/100 GMTK0742L100 --- GMTK0742F100
1/120 GMTK0742L120 --- GMTK0742F120
1/160 GMTK0742L165 --- GMTK0742F165
1/200 GMTK0742L200 --- GMTK0742F200
Back to top of this page

Rated input 1.5kW (model number GMTK15~)

Mount Code Reduction ratio Foot mount type Face mount type Flange mounting type






Lower motor mount
Please refer to the dimension drawing.
Select Mount Code
Please do.

 1/5 GMTK1538L5 GMTK1538U5 Face mount type
+
UFM48 (concentric type)
1/10 GMTK1538L10 GMTK1538U10
1/15 GMTK1538L15 GMTK1538U15
1/20 GMTK1538L20 GMTK1538U20
1/25 GMTK1538L25 GMTK1538U25
1/30 GMTK1538L30 GMTK1538U30
1/40 GMTK1542L40 --- GMTK1542F40
1/50 GMTK1542L50 --- GMTK1542F50
1/60 GMTK1542L60 --- GMTK1542F60
1/75 GMTK1542L75 --- GMTK1542F75
Back to top of this page

Rated input 2.2kW (model number GMTK22~)

Mount Code Reduction ratio Foot mount type Face mount type Flange mounting type



Lower motor mount
Please refer to the dimension drawing.
Select Mount Code
Please do.

 1/5 GMTK2242L5 --- GMTK2242F5
1/10 GMTK2242L10 --- GMTK2242F10
1/15 GMTK2242L15 --- GMTK2242F15
1/20 GMTK2242L20 --- GMTK2242F20
1/25 GMTK2242L25 --- GMTK2242F25
1/30 GMTK2242L30 --- GMTK2242F30
Back to top of this page

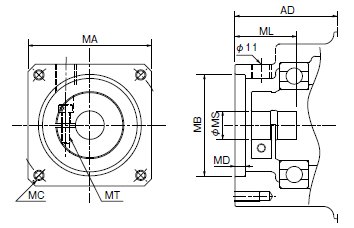

Motor mount dimension diagram

Unit: mm

size Mount Code
By motor manufacturer
Compatibility list		 Motor mount dimensions
AD MA MB MC MD ML(min) MS MT
GMTK02 E4DC 65 □60 Φ50G7 M5 depth 12 (PCD70) 5 30(25) Φ8 M4
E4EC Φ9
E4HC Φ14
G2HC □80 Φ70G7 M6 depth 10 (PCD90)
GMTK04 E4HC 54 □60 Φ50G7 M5 depth 12 (PCD70) 5 30(25) Φ14 M4
G2HC □80 Φ70G7 M6 depth 10 (PCD90)
GMTK07 G5KC 63 □80 Φ70G7 M6 depth 15 (PCD90) 5 40(30) Φ16 M5
G5LC Φ19
K2KC □130 Φ110G7 M8 depth 13 (PCD145) Φ16
K2LC Φ19
K3YC 81 M8 depth 16 (PCD145) 8 58(40) Φ24
GMTK15 K3LC 77 □130 Φ110G7 M8 depth 16 (PCD145) 8 58(40) Φ19 M5
K3MC Φ22
K3YC Φ24
GMTK22 L1PC 121 □180 Φ114.3G7 M12 depth 16 (PCD200) 8 80(55) Φ28 M6
L1RC Φ35

6. Options

flange

When mounting the face mount type to a flange, use an S flange or an M flange. (Both S flanges and M flanges are made of cast iron.)

S flange: eccentric type

・Applicable flange number

Reduction ratio Rated Input
0.1kW 0.2kW 0.4kW 0.75kW
5 UFS27 (UFS25) UFS27 UFS37
10、15、20、25 UFS15 (UFS13) UFS15 (UFS13)
30、40、50 UFS27 (UFS25) UFS37
60、75 UFS27 (UFS25)
100、120、165、200 UFS37

・The number in parentheses is an S flange that is one frame smaller.


・Dimensions (unit: mm), PDF drawing, standard price and delivery list

Flange Number Cs E F H R O Y Z mass
kg		 PDF Drawings Standard price Delivery
UFS13 18 4 12 135 32 125 150 9 1.2 PDF お問合せください お問合せください
UFS15 20 4 12 150 32 140 170 9 1.3 PDF お問合せください お問合せください
UFS25 20 4 16 150 41 (32) 140 170 9 1.4 PDF お問合せください お問合せください
UFS27 24 4 16 175 41 (32) 165 200 11 2.3 PDF お問合せください お問合せください
UFS37 24 4 18 175 47 165 200 11 2.1 PDF お問合せください お問合せください

-Four bolts are included with the flange.

・The dimensions in parentheses apply when installing at 1/5 of 0.1kW and 0.2kW.


M flange: concentric type

・Applicable flange number

Reduction ratio Rated Input
0.1kW 0.2kW 0.4kW 0.75kW 1.5kW
5 UFM26 UFM26 UFM39 UFM48
10、15、20、25 UFM15 UFM15
30 UFM26 UFM39 UFM48
40、50
60、75 UFM26
100、120、165、200 UFM39 UFM48

・Dimensions (unit: mm), PDF drawing, standard price and delivery list

Flange Number E F H R O Y Z mass
kg		 PDF Drawings Standard price Delivery
UFM15 3.5 12 155 32 145 170 M10 1.4 PDF お問合せください お問合せください
UFM26 3.5 16 165 41 (32) 148 185 M12 1.7 PDF お問合せください お問合せください
UFM39 4 18 190 47 180 215 M12 2.5 PDF お問合せください お問合せください
UFM48 5 26.5 280 60.5 260 290 Φ12 7.5 PDF お問合せください お問合せください

-Four bolts are included with the flange.

・The dimensions in parentheses apply when installing at 1/5 of 0.1kW and 0.2kW.
