Steel Series Open Type TKH Type
- Link
Shortening/lengthening
- Cable Carrier (CABLEVEYOR) that is more suitable for heavier loads and less frequent use than the TK type.
- -It has even higher strength and rigidity than the TK type, so it can be used with Long travel length.
- - Can be used for heavier loads than the TK type and for relatively infrequent use.
- - For heavy load or high frequency use, please consider the Steel Series Heavy Load TKV type or TKI type.
- -A wide range of special specifications are available, including stainless steel specifications.

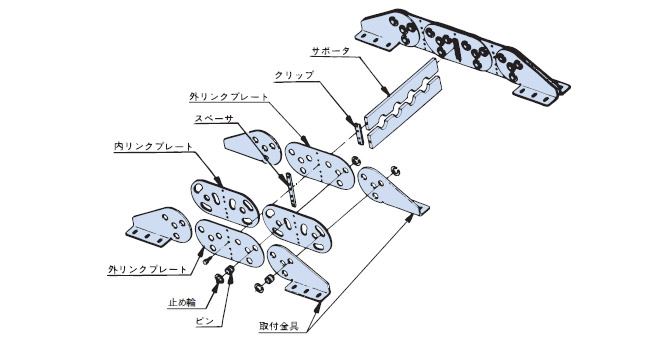

Structure
Features
1. High strength, high rigidity, heat resistance
It is made of steel links and aluminum supports, making it strong and durable.
2. safety design
The design uses oval link plates with small gaps at the bends, reducing the risk of objects getting caught in the bends.
3. Supporters tailored to cables and hoses
The supporter holes are machined to fit the inserted cables and hoses so that they can pass along Cable Carrier (CABLEVEYOR) 's track, reducing wear and tear on the cables and hoses.
4. Easy to cut and connect
The links are connected with pins and retaining rings, making them easy to cut and connect.
Special specifications
Please refer here for information on special specifications.
Catalogs and Instruction Manuals
Product List
*Click to display detailed information.
| Cables ・Hose Maximum Outer Diameter mm |
Inner Height mm |
Inner width mm |
Pitch mm |
bending radius mm |
|||
|---|---|---|---|---|---|---|---|
| 350 | 450 | 600 | 750 | ||||
| 110 | Order size |
Order size |
250 | TKH250R350 | TKH250R450 | TKH250R600 | TKH250R750 |
