Plastic modular chain WT2515G-M type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- WT2510 series of Bevedolphin series for the beverage industry
- Ideal for transporting beverage containers.
- It can be installed on the same shaft as the same Bevedolphin series curved type TTUPM838H.
- Conveyor design is easy when using multiple strand because the conveying level remains unchanged.
Features
-
・A special stepped plastic pin with a plug and pin integrated into the connecting pin is used, which is highly effective in preventing foreign matter from entering.
The Bevedolphin series comes with an attachment to prevent meandering and is ideal for transporting beverage containers.
-

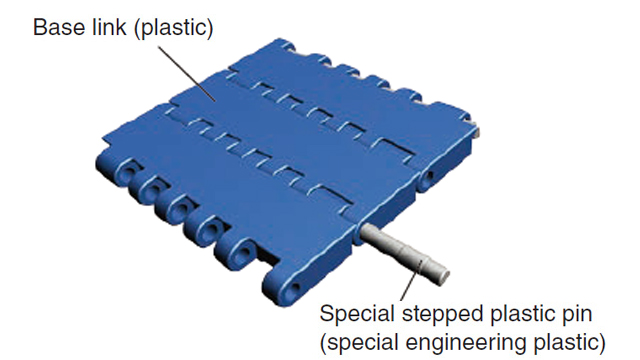

- Special stepped plastic pins are used for the connecting pins
A special stepped plastic pin is used, which integrates the plug and pin, reducing the risk of foreign matter getting mixed in.
It has a simple structure consisting of only the main link and pin, making it easy to use.
-
・Bevedolphin series, ideal for transporting beverage containers
By combining the Bevedolphin series, conveyor design can be standardized.
-

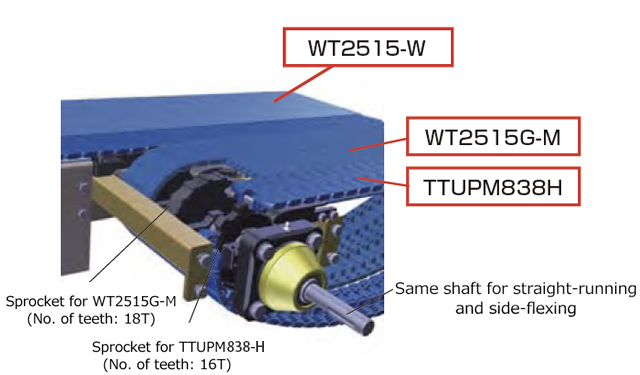

・Combination of TTUPM838H and WT2515G-M types
*The illustration shows an example of installation.
The WT2515G-M type for straight running and the TTUPM838H type for curved transport can be installed on the same shaft.
Since the conveying level does not change, conveyor design is simple when arranging multiple strand. *The above diagram is an example of installation.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ● | ● | △ | ● | ● | ● | ● | ● | ● |
| Small | ● | ● | △ | ● | ● | ● | ● | ● | ● |
Purpose
- ■ Beverage container transport
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | Meandering prevention attachment available |
| Model | WT2515G-M |
|
|
| Chain width mm | 83.8 |
