Plastic modular chain WT2525VG-M type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Rubber type
- WT2520 series mold-to-width type now includes 100mm wide rubber type
- With a chain width of 100mm, it is ideal for replacing conveyor belts.
- By molding rubber onto the chain's conveying surface (molding different materials into one piece), conveyed items are less likely to slip off, making incline conveyance possible.
Features
-
・The chain width of 100mm makes it ideal for replacing conveyor belts
-
- The high friction of the rubber on the conveying surface makes it ideal for inclined conveyance
Rubber on the conveying surface of the chain Two-color molding (integrated molding of different materials)? This prevents the transported items from slipping off, making it possible to transport items on an incline.

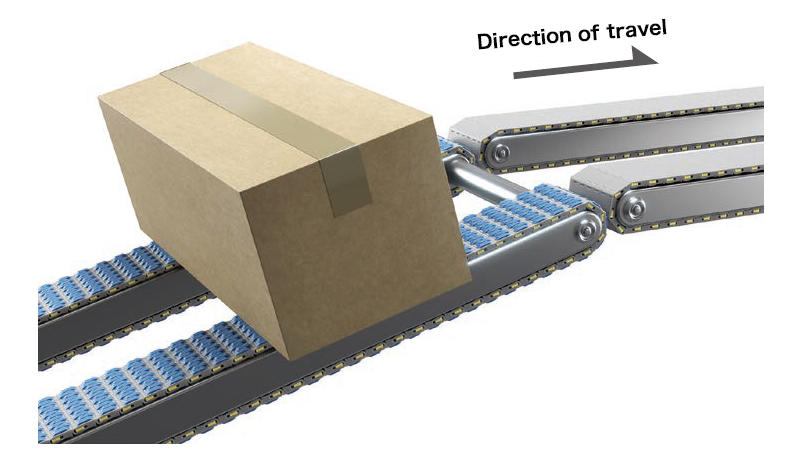

[Image of inclined transport]
×(You can move it by dragging it)What is two-color molding (molding different materials into one piece)?
Two-color molding (molding with different materials) is the process of combining two different types of resin (plastic or elastomer) into one product.
-

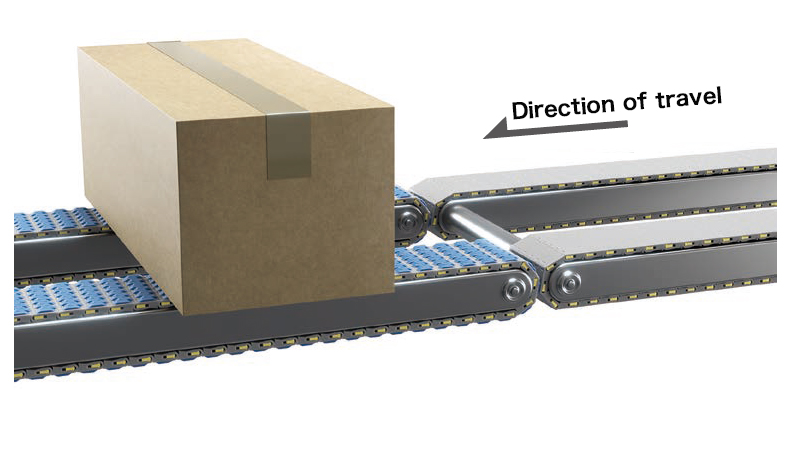

・Reduced transfer space

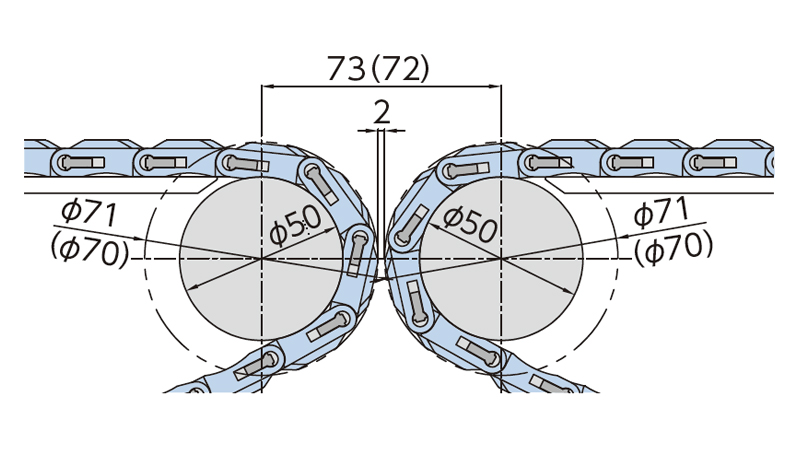

By installing a Φ50 round bar at the end of the conveyor, it is possible to reduce the transfer space.
In this case, it is forward/reverse bottom drive?
Note: To prevent entanglement at in-line joint, install safety devices (such as a safety cover).
in-line Layout
×(You can move it by dragging it)What is forward/reverse bottom drive?
Forward and reverse refer to the forward (forward) and reverse (backward) rotation of the motor, allowing the transported object to move forward or backward.
Bottom drive means that the drive unit (drive sprocket and motor) is located below the conveying surface.
The above two are collectively called forward/reverse bottom drive.
-

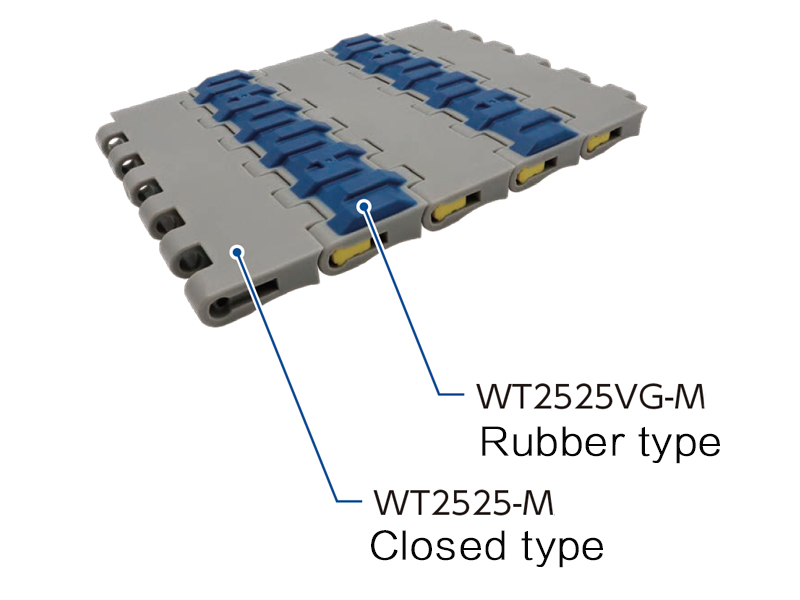

・Can be combined with closed type matched and tagged
The WT2525VG-M type (rubber type) and the WT2525-M type (closed type) can be matched and tagged.
Note: If you would like to matched and tagged, please contact us.
[matched and tagged]
-
・Maintenance time can be reduced
The pin and plug fastening system makes it easy to cut and connect the chain, allowing for partial repairs.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | ○ | △ | ○ | ○ | △ | △ | ○ | △ |
| Medium | △ | ○ | △ | ○ | ○ | △ | ○ | ○ | △ |
| Small | △ | ● | △ | ● | ● | △ | ● | ● | △ |
Purpose
- ■ Inclined transport
- ■Cutting and transporting cardboard
- ■Automatic sheet supply device

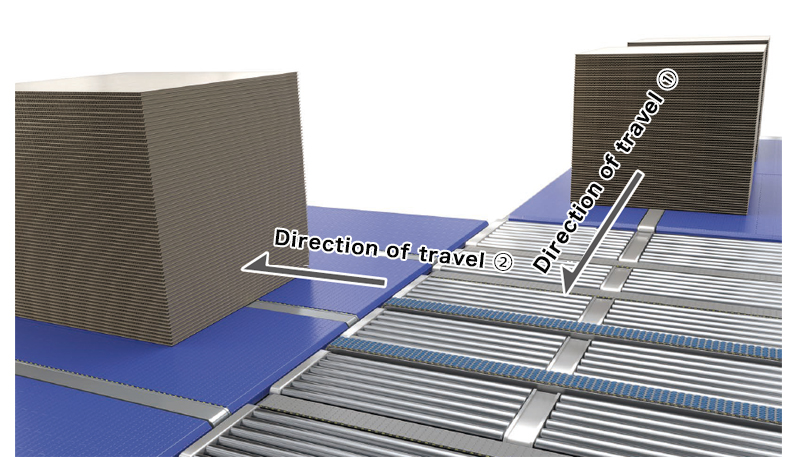

- ■Right-angle transport of stacked sheets
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Rubber type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT2525VG-M |
|
|
| Chain width mm | 100 |
