MG Series
- This is a representative overrunning model.
- It is compact and has a high torque capacity.
- Excellent friction resistance when idling.
- Coupling type (MG-C) is also available.
- トルク範囲：314～176000N・m
Features
- - Compact and with a high torque capacity, it is suitable for medium to low speed overrunning.
- - Excellent wear resistance during idling.
- -We also have the MG-C type with Roller chain coupling installed.
Structure

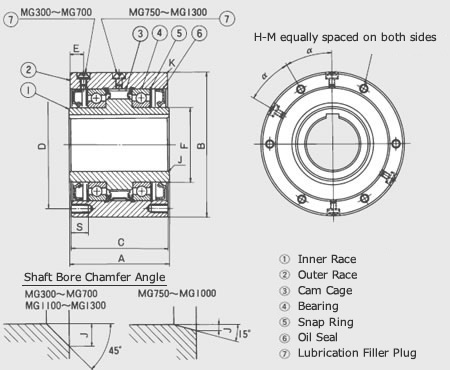

・MG (single item)

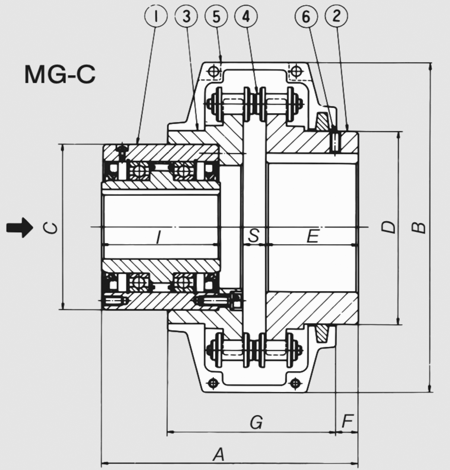

・MG-C (coupling type)
- (1) MG Cam Clutch
- (2) Sprocket A
- (3) Sprocket B
- (4) Roller chain
- (5) Coupling case
- (6) Set screws
- (7) Adapter
Model number display example
・Single item
| MG | 300 |
| ｜ Series Name |
｜ Size |
・Coupling type
| MG | 300 | C | - | LH |
| ｜ Series Name |
｜ Size |
｜ Coupling Type |
| The direction of meshing of inner race as seen from the side indicated by the arrow in the structural diagram. RH: Engagement during clockwise (CW) rotation LH: Engagement during leftward rotation (CCW) |
|
Catalogs and Instruction Manuals
Product model number list
*Click on the model number to display detailed information.
・Single item
