Plastic modular chain WT0705-M type
- チェーンピッチ
7.5mm - For straight running
- Closed type
- The first Plastic modular chain with a chain width of 30mm: the WT0700 series
- The first Plastic modular chain to use a chain width of 30mm, making it ideal for replacing narrow belts.
- Ideal for stable transport of small items that are prone to deformation.
Features
-
- The first Plastic modular chain with a chain width of 30mm
It is compatible with compact conveyors and is ideal for replacing narrow belts.
-
- Achieves a dead space of 19mm between conveyors
By adopting a nose bar with a minimum radius of 3mm,
The dead space between conveyors can be reduced to 19 mm, making it suitable for transporting small items.
-

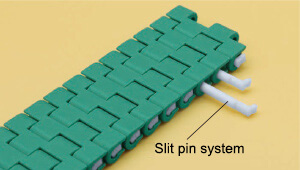

・Improved maintainability with slit pin system
Because it uses a slit pin system in which the plug and pin are integrated
It is plug-free, making it easy to disconnect and reduce maintenance work.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Small | ● | ● | △ | ● | ● | ● | ● | ● | ● |
Purpose
- ■ Stable transport of items that are prone to losing their shape
- ■ Small item transport
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 7.5 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT0705-M |
|
|
| Chain width mm | 30 |
Catalogs and Instruction Manuals
Example of in-line layout
Example of transfer unit
Detachable unit example
Other WT0700 series
- チェーンピッチ
7.5mm - For straight running
- Closed type
- ・Standard series (specification) minimum chain pitch WT0700 series
- - When combined with the nose bar, it achieves a dead space of 19mm.
- - Ideal for stable transport of items that are prone to losing their shape and for transporting small items.
- · Eliminate the labor required for troublesome conveyor design! Compatible with WinCS mini conveyor units, which can be ordered simply by entering the model number.
