Hypoid Motor mini series

This is a hypoid gear motor with a motor capacity of 40W to 90W.
Right-angle shaft type Hypoid Motor mini series.
All models use an aluminum frame motor and silent brake, enabling compact, lightweight, and quiet operation.
Wide variety of single-phase and three-phase options available, including 40, 60, and 90W.

Features

-High torque and high efficiency

There is no torque limit at low output rotations with high reduction ratio, and high torque is transmitted.

In addition, compared to the worm type, it has less slippage, is highly efficient and achieves cost savings.
・Long lifespan

It has a long lifespan of over 10,000 hours, which is the best in its class.
・Free installation

The top and bottom mounting pitches on the case are the same, making it easy to mount in either direction.
- Wide range of reduction ratios

We have a wide range of reduction ratios available, from 1/5 to 1/240.
・Outdoor type is equivalent to IP65

All outdoor models are waterproof and conform to IEC standard IP65.

Standard Model

Motor Capacity		Reduction ratio
Single-phase/three-phase	40W	1/5～1/240
	60W	1/5～1/240
	90W	1/5～1/240

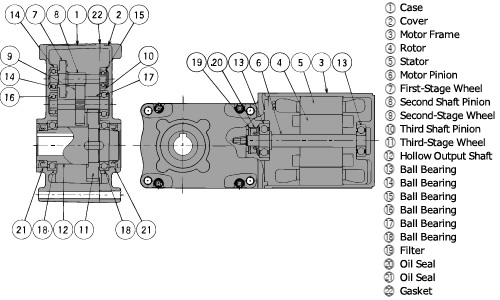

Structure

Catalogs and Instruction Manuals

Model number display example

HMM	T	60	L	50	L	B
｜ Series Name	｜ Motor Specifications	｜ Motor Capacity	｜ Mounting Type	｜ Reduction ratio	｜｜｜｜	｜ brake
	T: three phase S: Single phase	40：40W 60：60W 90：90W	H: Hollow shaft type U: Face mount type L: Foot mount type	50：1/50		No symbol: Without brake B: With brake
					Shaft arrangement L: The output shaft is on the left side when viewed from the motor side. T: Output shaft on both sides R: The output shaft is on the right side when viewed from the motor side. S: Output shaft on one side (face side, face mount type only) No symbol: Hollow shaft type

A wide range of options are available. Please check here for the types and model numbers of options.

■ Tsubaki model No. navigation

*To generate the correct model number, select items in order from left to right.

series	Motor Specifications	Motor Capacity	Mounting Type	Reduction ratio	Shaft arrangement	brake
HMM			H: Hollow shaft type U: Face Mount type L: Foot mount		L: Left side R: Right side T: Both sides S: One side No symbol	No symbol B: With brake

Motor Specifications

T: Three-phase power supply.

S: Single phase power supply.

Motor Capacity

Indicates the motor capacity.

Mounting Type

H: The output shaft is hollow.

U: The output shaft is a solid type and is face mounted.

L: The output shaft is solid and is Foot mount mounted.

Reduction ratio

Indicates the reduction ratio.

Shaft arrangement

L: When the mounting type is Foot mount (L), the solid output shaft is on the left side when viewed from the motor side.

R: When the mounting style is Foot mount (L), the solid output shaft protrudes to the right when viewed from the motor side.

T: A type with a solid output shaft on both sides.

S: When the mounting format is face mount (U), the solid output shaft protrudes toward the mounting surface.

No symbol: If the mounting format is a hollow shaft type (H), the shaft arrangement symbol is not required.

brake

No symbol: No brake.

B: Comes with brakes.

Specification Code

W: Suitable for outdoor installation.

J: Suitable for installation in locations subject to water.

V: This specifies the power supply voltage will be doubled.

For three-phase, 400/400/440V, 50/60/60Hz,

For single phase, it is 200V, 50/60Hz.

WV: Outdoor specification + double voltage specification.

P: Comes with a plastic terminal box.

PV: Comes with a plastic terminal box + double voltage specification.

N2: UL standard compliant specifications.

N3: CCC specification.

Product List

*Click on the model number to display detailed information. Open all Close all

Three-phase 40W (model number HMMT40~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMMT40H5	HMMT40U5S HMMT40U5T	HMMT40L5L HMMT40L5R HMMT40L5T	HMMT40H5B	HMMT40U5SB HMMT40U5TB	HMMT40L5LB HMMT40L5RB HMMT40L5TB
1/8	HMMT40H8	HMMT40U8S HMMT40U8T	HMMT40L8L HMMT40L8R HMMT40L8T	HMMT40H8B	HMMT40U8SB HMMT40U8TB	HMMT40L8LB HMMT40L8RB HMMT40L8TB
1/10	HMMT40H10	HMMT40U10S HMMT40U10T	HMMT40L10L HMMT40L10R HMMT40L10T	HMMT40H10B	HMMT40U10SB HMMT40U10TB	HMMT40L10LB HMMT40L10RB HMMT40L10TB
1/15	HMMT40H15	HMMT40U15S HMMT40U15T	HMMT40L15L HMMT40L15R HMMT40L15T	HMMT40H15B	HMMT40U15SB HMMT40U15TB	HMMT40L15LB HMMT40L15RB HMMT40L15TB
1/20	HMMT40H20	HMMT40U20S HMMT40U20T	HMMT40L20L HMMT40L20R HMMT40L20T	HMMT40H20B	HMMT40U20SB HMMT40U20TB	HMMT40L20LB HMMT40L20RB HMMT40L20TB
1/25	HMMT40H25	HMMT40U25S HMMT40U25T	HMMT40L25L HMMT40L25R HMMT40L25T	HMMT40H25B	HMMT40U25SB HMMT40U25TB	HMMT40L25LB HMMT40L25RB HMMT40L25TB
1/30	HMMT40H30	HMMT40U30S HMMT40U30T	HMMT40L30L HMMT40L30R HMMT40L30T	HMMT40H30B	HMMT40U30SB HMMT40U30TB	HMMT40L30LB HMMT40L30RB HMMT40L30TB
1/40	HMMT40H40	HMMT40U40S HMMT40U40T	HMMT40L40L HMMT40L40R HMMT40L40T	HMMT40H40B	HMMT40U40SB HMMT40U40TB	HMMT40L40LB HMMT40L40RB HMMT40L40TB
1/50	HMMT40H50	HMMT40U50S HMMT40U50T	HMMT40L50L HMMT40L50R HMMT40L50T	HMMT40H50B	HMMT40U50SB HMMT40U50TB	HMMT40L50LB HMMT40L50RB HMMT40L50TB
1/60	HMMT40H60	HMMT40U60S HMMT40U60T	HMMT40L60L HMMT40L60R HMMT40L60T	HMMT40H60B	HMMT40U60SB HMMT40U60TB	HMMT40L60LB HMMT40L60RB HMMT40L60TB
1/80	HMMT40H80	HMMT40U80S HMMT40U80T	HMMT40L80L HMMT40L80R HMMT40L80T	HMMT40H80B	HMMT40U80SB HMMT40U80TB	HMMT40L80LB HMMT40L80RB HMMT40L80TB
1/100	HMMT40H100	HMMT40U100S HMMT40U100T	HMMT40L100L HMMT40L100R HMMT40L100T	HMMT40H100B	HMMT40U100SB HMMT40U100TB	HMMT40L100LB HMMT40L100RB HMMT40L100TB
1/120	HMMT40H120	HMMT40U120S HMMT40U120T	HMMT40L120L HMMT40L120R HMMT40L120T	HMMT40H120B	HMMT40U120SB HMMT40U120TB	HMMT40L120LB HMMT40L120RB HMMT40L120TB
1/160	HMMT40H160	HMMT40U160S HMMT40U160T	HMMT40L160L HMMT40L160R HMMT40L160T	HMMT40H160B	HMMT40U160SB HMMT40U160TB	HMMT40L160LB HMMT40L160RB HMMT40L160TB
1/200	HMMT40H200	HMMT40U200S HMMT40U200T	HMMT40L200L HMMT40L200R HMMT40L200T	HMMT40H200B	HMMT40U200SB HMMT40U200TB	HMMT40L200LB HMMT40L200RB HMMT40L200TB
1/240	HMMT40H240	HMMT40U240S HMMT40U240T	HMMT40L240L HMMT40L240R HMMT40L240T	HMMT40H240B	HMMT40U240SB HMMT40U240TB	HMMT40L240LB HMMT40L240RB HMMT40L240TB

Three-phase 60W (model number HMMT60~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMMT60H5	HMMT60U5S HMMT60U5T	HMMT60L5L HMMT60L5R HMMT60L5T	HMMT60H5B	HMMT60U5SB HMMT60U5TB	HMMT60L5LB HMMT60L5RB HMMT60L5TB
1/8	HMMT60H8	HMMT60U8S HMMT60U8T	HMMT60L8L HMMT60L8R HMMT60L8T	HMMT60H8B	HMMT60U8SB HMMT60U8TB	HMMT60L8LB HMMT60L8RB HMMT60L8TB
1/10	HMMT60H10	HMMT60U10S HMMT60U10T	HMMT60L10L HMMT60L10R HMMT60L10T	HMMT60H10B	HMMT60U10SB HMMT60U10TB	HMMT60L10LB HMMT60L10RB HMMT60L10TB
1/15	HMMT60H15	HMMT60U15S HMMT60U15T	HMMT60L15L HMMT60L15R HMMT60L15T	HMMT60H15B	HMMT60U15SB HMMT60U15TB	HMMT60L15LB HMMT60L15RB HMMT60L15TB
1/20	HMMT60H20	HMMT60U20S HMMT60U20T	HMMT60L20L HMMT60L20R HMMT60L20T	HMMT60H20B	HMMT60U20SB HMMT60U20TB	HMMT60L20LB HMMT60L20RB HMMT60L20TB
1/25	HMMT60H25	HMMT60U25S HMMT60U25T	HMMT60L25L HMMT60L25R HMMT60L25T	HMMT60H25B	HMMT60U25SB HMMT60U25TB	HMMT60L25LB HMMT60L25RB HMMT60L25TB
1/30	HMMT60H30	HMMT60U30S HMMT60U30T	HMMT60L30L HMMT60L30R HMMT60L30T	HMMT60H30B	HMMT60U30SB HMMT60U30TB	HMMT60L30LB HMMT60L30RB HMMT60L30TB
1/40	HMMT60H40	HMMT60U40S HMMT60U40T	HMMT60L40L HMMT60L40R HMMT60L40T	HMMT60H40B	HMMT60U40SB HMMT60U40TB	HMMT60L40LB HMMT60L40RB HMMT60L40TB
1/50	HMMT60H50	HMMT60U50S HMMT60U50T	HMMT60L50L HMMT60L50R HMMT60L50T	HMMT60H50B	HMMT60U50SB HMMT60U50TB	HMMT60L50LB HMMT60L50RB HMMT60L50TB
1/60	HMMT60H60	HMMT60U60S HMMT60U60T	HMMT60L60L HMMT60L60R HMMT60L60T	HMMT60H60B	HMMT60U60SB HMMT60U60TB	HMMT60L60LB HMMT60L60RB HMMT60L60TB
1/80	HMMT60H80	HMMT60U80S HMMT60U80T	HMMT60L80L HMMT60L80R HMMT60L80T	HMMT60H80B	HMMT60U80SB HMMT60U80TB	HMMT60L80LB HMMT60L80RB HMMT60L80TB
1/100	HMMT60H100	HMMT60U100S HMMT60U100T	HMMT60L100L HMMT60L100R HMMT60L100T	HMMT60H100B	HMMT60U100SB HMMT60U100TB	HMMT60L100LB HMMT60L100RB HMMT60L100TB
1/120	HMMT60H120	HMMT60U120S HMMT60U120T	HMMT60L120L HMMT60L120R HMMT60L120T	HMMT60H120B	HMMT60U120SB HMMT60U120TB	HMMT60L120LB HMMT60L120RB HMMT60L120TB
1/160	HMMT60H160	HMMT60U160S HMMT60U160T	HMMT60L160L HMMT60L160R HMMT60L160T	HMMT60H160B	HMMT60U160SB HMMT60U160TB	HMMT60L160LB HMMT60L160RB HMMT60L160TB
1/200	HMMT60H200	HMMT60U200S HMMT60U200T	HMMT60L200L HMMT60L200R HMMT60L200T	HMMT60H200B	HMMT60U200SB HMMT60U200TB	HMMT60L200LB HMMT60L200RB HMMT60L200TB
1/240	HMMT60H240	HMMT60U240S HMMT60U240T	HMMT60L240L HMMT60L240R HMMT60L240T	HMMT60H240B	HMMT60U240SB HMMT60U240TB	HMMT60L240LB HMMT60L240RB HMMT60L240TB

Three-phase 90W (model number HMMT90~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMMT90H5	HMMT90U5S HMMT90U5T	HMMT90L5L HMMT90L5R HMMT90L5T	HMMT90H5B	HMMT90U5SB HMMT90U5TB	HMMT90L5LB HMMT90L5RB HMMT90L5TB
1/8	HMMT90H8	HMMT90U8S HMMT90U8T	HMMT90L8L HMMT90L8R HMMT90L8T	HMMT90H8B	HMMT90U8SB HMMT90U8TB	HMMT90L8LB HMMT90L8RB HMMT90L8TB
1/10	HMMT90H10	HMMT90U10S HMMT90U10T	HMMT90L10L HMMT90L10R HMMT90L10T	HMMT90H10B	HMMT90U10SB HMMT90U10TB	HMMT90L10LB HMMT90L10RB HMMT90L10TB
1/15	HMMT90H15	HMMT90U15S HMMT90U15T	HMMT90L15L HMMT90L15R HMMT90L15T	HMMT90H15B	HMMT90U15SB HMMT90U15TB	HMMT90L15LB HMMT90L15RB HMMT90L15TB
1/20	HMMT90H20	HMMT90U20S HMMT90U20T	HMMT90L20L HMMT90L20R HMMT90L20T	HMMT90H20B	HMMT90U20SB HMMT90U20TB	HMMT90L20LB HMMT90L20RB HMMT90L20TB
1/25	HMMT90H25	HMMT90U25S HMMT90U25T	HMMT90L25L HMMT90L25R HMMT90L25T	HMMT90H25B	HMMT90U25SB HMMT90U25TB	HMMT90L25LB HMMT90L25RB HMMT90L25TB
1/30	HMMT90H30	HMMT90U30S HMMT90U30T	HMMT90L30L HMMT90L30R HMMT90L30T	HMMT90H30B	HMMT90U30SB HMMT90U30TB	HMMT90L30LB HMMT90L30RB HMMT90L30TB
1/40	HMMT90H40	HMMT90U40S HMMT90U40T	HMMT90L40L HMMT90L40R HMMT90L40T	HMMT90H40B	HMMT90U40SB HMMT90U40TB	HMMT90L40LB HMMT90L40RB HMMT90L40TB
1/50	HMMT90H50	HMMT90U50S HMMT90U50T	HMMT90L50L HMMT90L50R HMMT90L50T	HMMT90H50B	HMMT90U50SB HMMT90U50TB	HMMT90L50LB HMMT90L50RB HMMT90L50TB
1/60	HMMT90H60	HMMT90U60S HMMT90U60T	HMMT90L60L HMMT90L60R HMMT90L60T	HMMT90H60B	HMMT90U60SB HMMT90U60TB	HMMT90L60LB HMMT90L60RB HMMT90L60TB
1/80	HMMT90H80	HMMT90U80S HMMT90U80T	HMMT90L80L HMMT90L80R HMMT90L80T	HMMT90H80B	HMMT90U80SB HMMT90U80TB	HMMT90L80LB HMMT90L80RB HMMT90L80TB
1/100	HMMT90H100	HMMT90U100S HMMT90U100T	HMMT90L100L HMMT90L100R HMMT90L100T	HMMT90H100B	HMMT90U100SB HMMT90U100TB	HMMT90L100LB HMMT90L100RB HMMT90L100TB
1/120	HMMT90H120	HMMT90U120S HMMT90U120T	HMMT90L120L HMMT90L120R HMMT90L120T	HMMT90H120B	HMMT90U120SB HMMT90U120TB	HMMT90L120LB HMMT90L120RB HMMT90L120TB
1/160	HMMT90H160	HMMT90U160S HMMT90U160T	HMMT90L160L HMMT90L160R HMMT90L160T	HMMT90H160B	HMMT90U160SB HMMT90U160TB	HMMT90L160LB HMMT90L160RB HMMT90L160TB
1/200	HMMT90H200	HMMT90U200S HMMT90U200T	HMMT90L200L HMMT90L200R HMMT90L200T	HMMT90H200B	HMMT90U200SB HMMT90U200TB	HMMT90L200LB HMMT90L200RB HMMT90L200TB
1/240	HMMT90H240	HMMT90U240S HMMT90U240T	HMMT90L240L HMMT90L240R HMMT90L240T	HMMT90H240B	HMMT90U240SB HMMT90U240TB	HMMT90L240LB HMMT90L240RB HMMT90L240TB

Single phase 40W (model number HMMS40~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMMS40H5	HMMS40U5S HMMS40U5T	HMMS40L5L HMMS40L5R HMMS40L5T	HMMS40H5B	HMMS40U5SB HMMS40U5TB	HMMS40L5LB HMMS40L5RB HMMS40L5TB
1/8	HMMS40H8	HMMS40U8S HMMS40U8T	HMMS40L8L HMMS40L8R HMMS40L8T	HMMS40H8B	HMMS40U8SB HMMS40U8TB	HMMS40L8LB HMMS40L8RB HMMS40L8TB
1/10	HMMS40H10	HMMS40U10S HMMS40U10T	HMMS40L10L HMMS40L10R HMMS40L10T	HMMS40H10B	HMMS40U10SB HMMS40U10TB	HMMS40L10LB HMMS40L10RB HMMS40L10TB
1/15	HMMS40H15	HMMS40U15S HMMS40U15T	HMMS40L15L HMMS40L15R HMMS40L15T	HMMS40H15B	HMMS40U15SB HMMS40U15TB	HMMS40L15LB HMMS40L15RB HMMS40L15TB
1/20	HMMS40H20	HMMS40U20S HMMS40U20T	HMMS40L20L HMMS40L20R HMMS40L20T	HMMS40H20B	HMMS40U20SB HMMS40U20TB	HMMS40L20LB HMMS40L20RB HMMS40L20TB
1/25	HMMS40H25	HMMS40U25S HMMS40U25T	HMMS40L25L HMMS40L25R HMMS40L25T	HMMS40H25B	HMMS40U25SB HMMS40U25TB	HMMS40L25LB HMMS40L25RB HMMS40L25TB
1/30	HMMS40H30	HMMS40U30S HMMS40U30T	HMMS40L30L HMMS40L30R HMMS40L30T	HMMS40H30B	HMMS40U30SB HMMS40U30TB	HMMS40L30LB HMMS40L30RB HMMS40L30TB
1/40	HMMS40H40	HMMS40U40S HMMS40U40T	HMMS40L40L HMMS40L40R HMMS40L40T	HMMS40H40B	HMMS40U40SB HMMS40U40TB	HMMS40L40LB HMMS40L40RB HMMS40L40TB
1/50	HMMS40H50	HMMS40U50S HMMS40U50T	HMMS40L50L HMMS40L50R HMMS40L50T	HMMS40H50B	HMMS40U50SB HMMS40U50TB	HMMS40L50LB HMMS40L50RB HMMS40L50TB
1/60	HMMS40H60	HMMS40U60S HMMS40U60T	HMMS40L60L HMMS40L60R HMMS40L60T	HMMS40H60B	HMMS40U60SB HMMS40U60TB	HMMS40L60LB HMMS40L60RB HMMS40L60TB
1/80	HMMS40H80	HMMS40U80S HMMS40U80T	HMMS40L80L HMMS40L80R HMMS40L80T	HMMS40H80B	HMMS40U80SB HMMS40U80TB	HMMS40L80LB HMMS40L80RB HMMS40L80TB
1/100	HMMS40H100	HMMS40U100S HMMS40U100T	HMMS40L100L HMMS40L100R HMMS40L100T	HMMS40H100B	HMMS40U100SB HMMS40U100TB	HMMS40L100LB HMMS40L100RB HMMS40L100TB
1/120	HMMS40H120	HMMS40U120S HMMS40U120T	HMMS40L120L HMMS40L120R HMMS40L120T	HMMS40H120B	HMMS40U120SB HMMS40U120TB	HMMS40L120LB HMMS40L120RB HMMS40L120TB
1/160	HMMS40H160	HMMS40U160S HMMS40U160T	HMMS40L160L HMMS40L160R HMMS40L160T	HMMS40H160B	HMMS40U160SB HMMS40U160TB	HMMS40L160LB HMMS40L160RB HMMS40L160TB
1/200	HMMS40H200	HMMS40U200S HMMS40U200T	HMMS40L200L HMMS40L200R HMMS40L200T	HMMS40H200B	HMMS40U200SB HMMS40U200TB	HMMS40L200LB HMMS40L200RB HMMS40L200TB
1/240	HMMS40H240	HMMS40U240S HMMS40U240T	HMMS40L240L HMMS40L240R HMMS40L240T	HMMS40H240B	HMMS40U240SB HMMS40U240TB	HMMS40L240LB HMMS40L240RB HMMS40L240TB

Single phase 60W (model number HMMS60~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMMS60H5	HMMS60U5S HMMS60U5T	HMMS60L5L HMMS60L5R HMMS60L5T	HMMS60H5B	HMMS60U5SB HMMS60U5TB	HMMS60L5LB HMMS60L5RB HMMS60L5TB
1/8	HMMS60H8	HMMS60U8S HMMS60U8T	HMMS60L8L HMMS60L8R HMMS60L8T	HMMS60H8B	HMMS60U8SB HMMS60U8TB	HMMS60L8LB HMMS60L8RB HMMS60L8TB
1/10	HMMS60H10	HMMS60U10S HMMS60U10T	HMMS60L10L HMMS60L10R HMMS60L10T	HMMS60H10B	HMMS60U10SB HMMS60U10TB	HMMS60L10LB HMMS60L10RB HMMS60L10TB
1/15	HMMS60H15	HMMS60U15S HMMS60U15T	HMMS60L15L HMMS60L15R HMMS60L15T	HMMS60H15B	HMMS60U15SB HMMS60U15TB	HMMS60L15LB HMMS60L15RB HMMS60L15TB
1/20	HMMS60H20	HMMS60U20S HMMS60U20T	HMMS60L20L HMMS60L20R HMMS60L20T	HMMS60H20B	HMMS60U20SB HMMS60U20TB	HMMS60L20LB HMMS60L20RB HMMS60L20TB
1/25	HMMS60H25	HMMS60U25S HMMS60U25T	HMMS60L25L HMMS60L25R HMMS60L25T	HMMS60H25B	HMMS60U25SB HMMS60U25TB	HMMS60L25LB HMMS60L25RB HMMS60L25TB
1/30	HMMS60H30	HMMS60U30S HMMS60U30T	HMMS60L30L HMMS60L30R HMMS60L30T	HMMS60H30B	HMMS60U30SB HMMS60U30TB	HMMS60L30LB HMMS60L30RB HMMS60L30TB
1/40	HMMS60H40	HMMS60U40S HMMS60U40T	HMMS60L40L HMMS60L40R HMMS60L40T	HMMS60H40B	HMMS60U40SB HMMS60U40TB	HMMS60L40LB HMMS60L40RB HMMS60L40TB
1/50	HMMS60H50	HMMS60U50S HMMS60U50T	HMMS60L50L HMMS60L50R HMMS60L50T	HMMS60H50B	HMMS60U50SB HMMS60U50TB	HMMS60L50LB HMMS60L50RB HMMS60L50TB
1/60	HMMS60H60	HMMS60U60S HMMS60U60T	HMMS60L60L HMMS60L60R HMMS60L60T	HMMS60H60B	HMMS60U60SB HMMS60U60TB	HMMS60L60LB HMMS60L60RB HMMS60L60TB
1/80	HMMS60H80	HMMS60U80S HMMS60U80T	HMMS60L80L HMMS60L80R HMMS60L80T	HMMS60H80B	HMMS60U80SB HMMS60U80TB	HMMS60L80LB HMMS60L80RB HMMS60L80TB
1/100	HMMS60H100	HMMS60U100S HMMS60U100T	HMMS60L100L HMMS60L100R HMMS60L100T	HMMS60H100B	HMMS60U100SB HMMS60U100TB	HMMS60L100LB HMMS60L100RB HMMS60L100TB
1/120	HMMS60H120	HMMS60U120S HMMS60U120T	HMMS60L120L HMMS60L120R HMMS60L120T	HMMS60H120B	HMMS60U120SB HMMS60U120TB	HMMS60L120LB HMMS60L120RB HMMS60L120TB
1/160	HMMS60H160	HMMS60U160S HMMS60U160T	HMMS60L160L HMMS60L160R HMMS60L160T	HMMS60H160B	HMMS60U160SB HMMS60U160TB	HMMS60L160LB HMMS60L160RB HMMS60L160TB
1/200	HMMS60H200	HMMS60U200S HMMS60U200T	HMMS60L200L HMMS60L200R HMMS60L200T	HMMS60H200B	HMMS60U200SB HMMS60U200TB	HMMS60L200LB HMMS60L200RB HMMS60L200TB
1/240	HMMS60H240	HMMS60U240S HMMS60U240T	HMMS60L240L HMMS60L240R HMMS60L240T	HMMS60H240B	HMMS60U240SB HMMS60U240TB	HMMS60L240LB HMMS60L240RB HMMS60L240TB

Single phase 90W (model number HMMS90~)

Reduction ratio	Without brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type
1/5	HMMS90H5	HMMS90U5S HMMS90U5T	HMMS90L5L HMMS90L5R HMMS90L5T
1/8	HMMS90H8	HMMS90U8S HMMS90U8T	HMMS90L8L HMMS90L8R HMMS90L8T
1/10	HMMS90H10	HMMS90U10S HMMS90U10T	HMMS90L10L HMMS90L10R HMMS90L10T
1/15	HMMS90H15	HMMS90U15S HMMS90U15T	HMMS90L15L HMMS90L15R HMMS90L15T
1/20	HMMS90H20	HMMS90U20S HMMS90U20T	HMMS90L20L HMMS90L20R HMMS90L20T
1/25	HMMS90H25	HMMS90U25S HMMS90U25T	HMMS90L25L HMMS90L25R HMMS90L25T
1/30	HMMS90H30	HMMS90U30S HMMS90U30T	HMMS90L30L HMMS90L30R HMMS90L30T
1/40	HMMS90H40	HMMS90U40S HMMS90U40T	HMMS90L40L HMMS90L40R HMMS90L40T
1/50	HMMS90H50	HMMS90U50S HMMS90U50T	HMMS90L50L HMMS90L50R HMMS90L50T
1/60	HMMS90H60	HMMS90U60S HMMS90U60T	HMMS90L60L HMMS90L60R HMMS90L60T
1/80	HMMS90H80	HMMS90U80S HMMS90U80T	HMMS90L80L HMMS90L80R HMMS90L80T
1/100	HMMS90H100	HMMS90U100S HMMS90U100T	HMMS90L100L HMMS90L100R HMMS90L100T
1/120	HMMS90H120	HMMS90U120S HMMS90U120T	HMMS90L120L HMMS90L120R HMMS90L120T
1/160	HMMS90H160	HMMS90U160S HMMS90U160T	HMMS90L160L HMMS90L160R HMMS90L160T
1/200	HMMS90H200	HMMS90U200S HMMS90U200T	HMMS90L200L HMMS90L200R HMMS90L200T
1/240	HMMS90H240	HMMS90U240S HMMS90U240T	HMMS90L240L HMMS90L240R HMMS90L240T

option

Shaft end cover

For hollow shaft types, a cover is available to attach to the end of the hollow shaft opposite the mounting side. Also compatible with adapters and double shaft types.
(Material: Polypropylene resin, green)

・Dimensions (unit: mm), PDF drawing, standard price and delivery

Model number	Applicable capacity, speed ratio	PDF Drawings	Standard price	Delivery
HM42CAP	HMMT40H5～240 HMMS40H5～240	PDF	お問合せください	お問合せください
HM48CAP	HMMT60H5～240 HMMS60H5～240 HMMT90H5～240 HMMS90H5～240	PDF	お問合せください	お問合せください

Torque arm

- For hollow shaft types, torque arms are available for on-shaft mounting. also compatible with adapters and double-shaft types. (material: SS400)

It can be installed in either position depending on the installation condition of the reducer.

・Dimensions (unit: mm), PDF drawing, standard price and delivery list

Model number	Applicable capacity, speed ratio	A	B	C	D	H	L	R1	R2	R3	ΦZ1	ΦZ2	Recommendation bolts	Plate thickness t	PDF Drawings	Standard price	Delivery
HM80TA	HMMT40H5～240 HMMS40H5～240	80	47	33	63	67	114	9	11	―	9	11	M10	4.5	PDF	お問合せください	お問合せください
HM100TA	60W 1/5～1/240 90W 1/5～1/240 0.1kW 1/5～1/120 0.2kW 1/5～1/60	100	62	38	70	82	126	9	11	37	9	11	M10	4.5	PDF	お問合せください	お問合せください

TSUBAKI Power Transmission Products Information Site
