Plastic modular chain BTC8H-M/BTM8H-M type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Magnet type
- Plastic modular chain BT8 Series
- The lineup includes a closed type suitable for transporting on flat surfaces and a magnetic type suitable for transporting on inclined surfaces.
- Ideal for transporting trays in parallel.
Features
- Ideal for transporting trays in parallel.
- The magnet type (BTM8H-M) uses magnets embedded in the links to enable inclined transport of metal trays.
- Since it is necessary to discuss with us about the magnet mounting position, a special order is available.
-

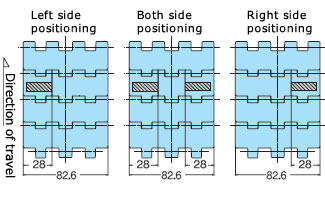

・Magnet placement example (BTM8H-M)
The magnet type (BTM8H-M) can be placed on the right, left, or both sides of the direction of travel, with magnets inserted at any interval.
Please refer to the diagram on the right for the installation position.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | ○ | ○ | △ | ○ | △ | △ |
| Medium | ○ | ○ | △ | ● | ● | △ | ● | △ | △ |
| Small | ● | ● | △ | ● | ● | △ | ● | △ | △ |
Purpose
- ■Transporting trays in parallel
- ■ Inclined transport of trays in parallel use (magnet type only)
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 | |
|---|---|---|
| Purpose | For straight running | |
| Chain Type | Closed type | |
| - | Magnet type | |
| Main body chain specifications | - | |
| Pin Type | - | |
| Pin Material | - | |
| Pin Shape | - | |
| Top plate thickness mm | - | |
| Pusher Material | - | |
| Other features | - | |
| Model | BTC8H-M | BTM8H-M |
|
 |
|
| Chain width mm | 82.6 | |
Catalogs and Instruction Manuals
Other BT8 series
- チェーンピッチ
25.4mm - For straight running
- Closed type
- ・BT8 series: stable transport and low cost
- - With a chain pitch of 25.4 mm, it is ideal for transporting medium-sized containers.
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Magnet type
- ・BT8 series with magnets embedded in the module link
- -Ideal for adsorbing and transporting transported items (magnetic materials).
- チェーンピッチ
25.4mm - For straight running
- Open type
- ・ Plastic modular chain BT8 series
- - There are holes on the top surface of the plate, which are effective for removing excess lubricant and moisture.
- - Allows stable transport of small items and smooth transfers.
