Plastic modular chain WT1306-W type
- チェーンピッチ
13.1mm - For straight running
- Open type
- Plastic modular chain suitable for use in extremely low humidity environments
- Ideal for transporting cell batteries in the secondary battery industry.
- By using a nose bar, dead space between conveyors can be minimized, enabling stable transport.
Features
-
- Suitable for low humidity environments (dew point temperature: -40°C)
Plastic modular chain is suitable for use in extremely low humidity environments such as in the manufacturing process of lithium-ion batteries.
Note: It has been confirmed that there is no effect on product characteristics in a relative comparison between a low humidity environment (dew point temperature: -40°C) and a general environment (normal humidity) (based on in-house testing).
-
・All-plastic chain that does not generate metallic Wear debris
The chain is made entirely of plastic, which means it is self-lubricating and can be used without lubrication.
Ideal for environments where metallic Wear debris are undesirable.
-
- Improved maintainability with the use of slit pins

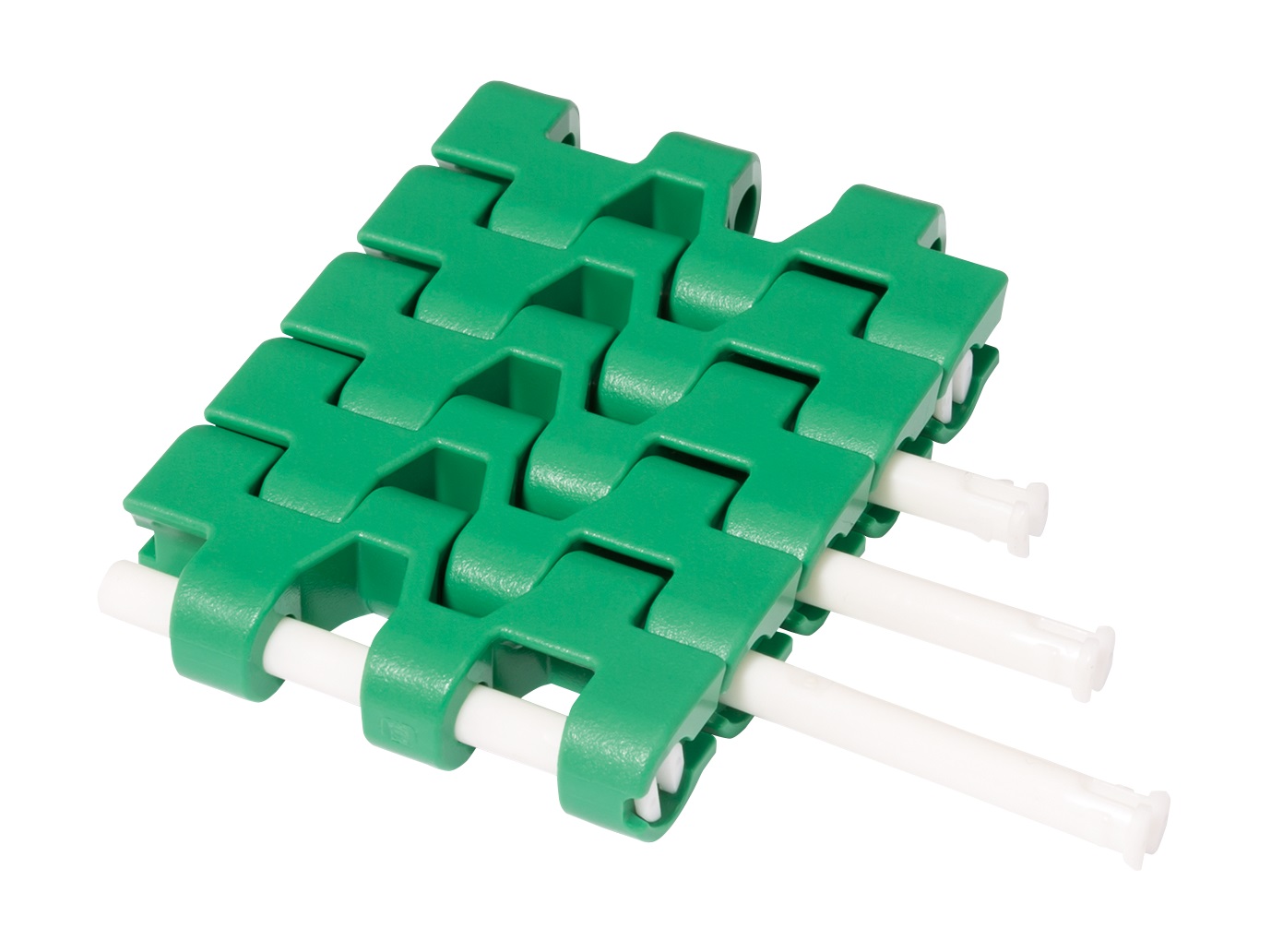

Chain widths of 50mm and 100mm use a "slit pin" with an integrated plug.
Chains can be easily cut and connect, reducing the amount of work required for chain installation and maintenance.

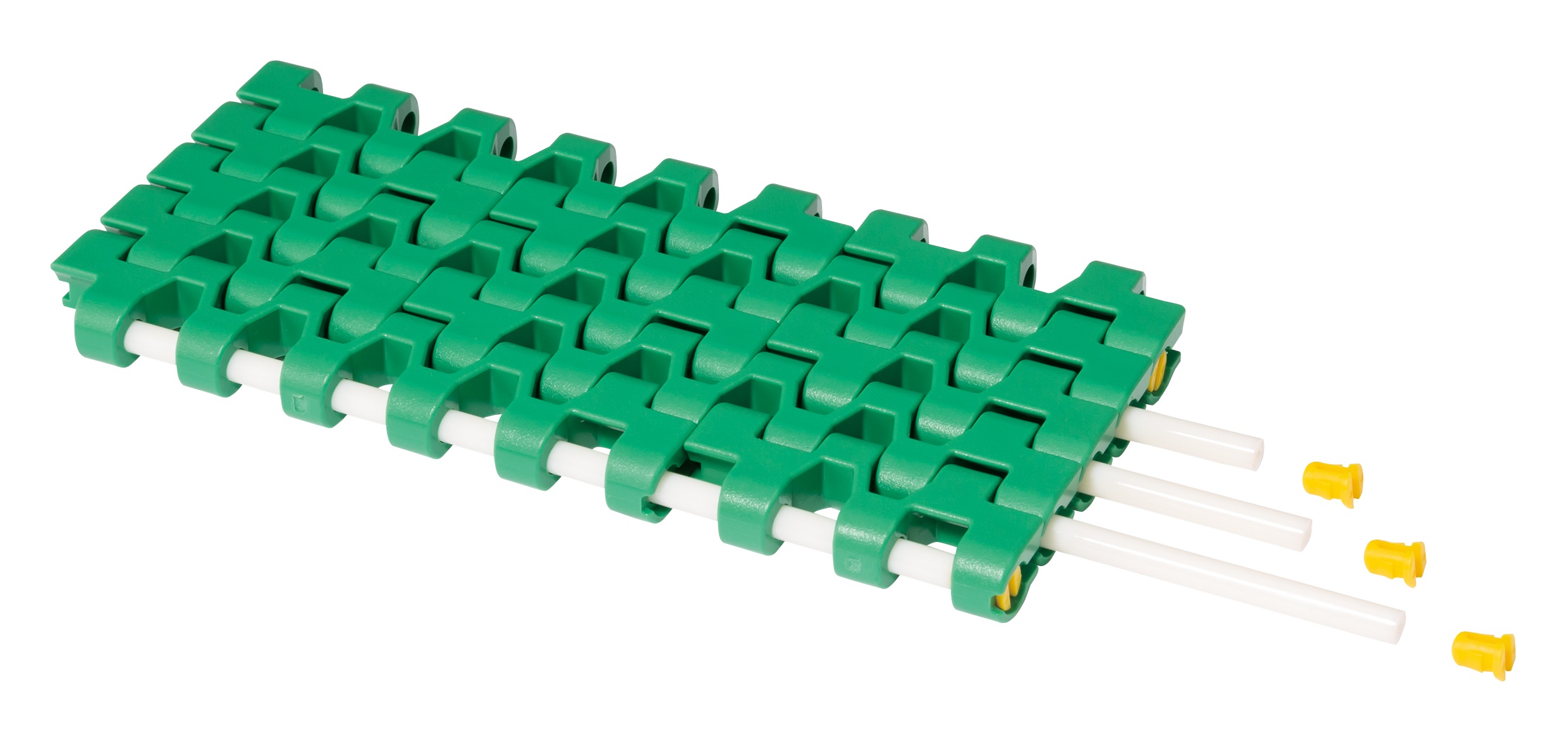

Chain width 50mm/100mm Chain width 150mm and up Slit pin specifications Main body + plug fastening method
Note: Chains with a width of 150mm or more will be fastened with a pin and plug.
-

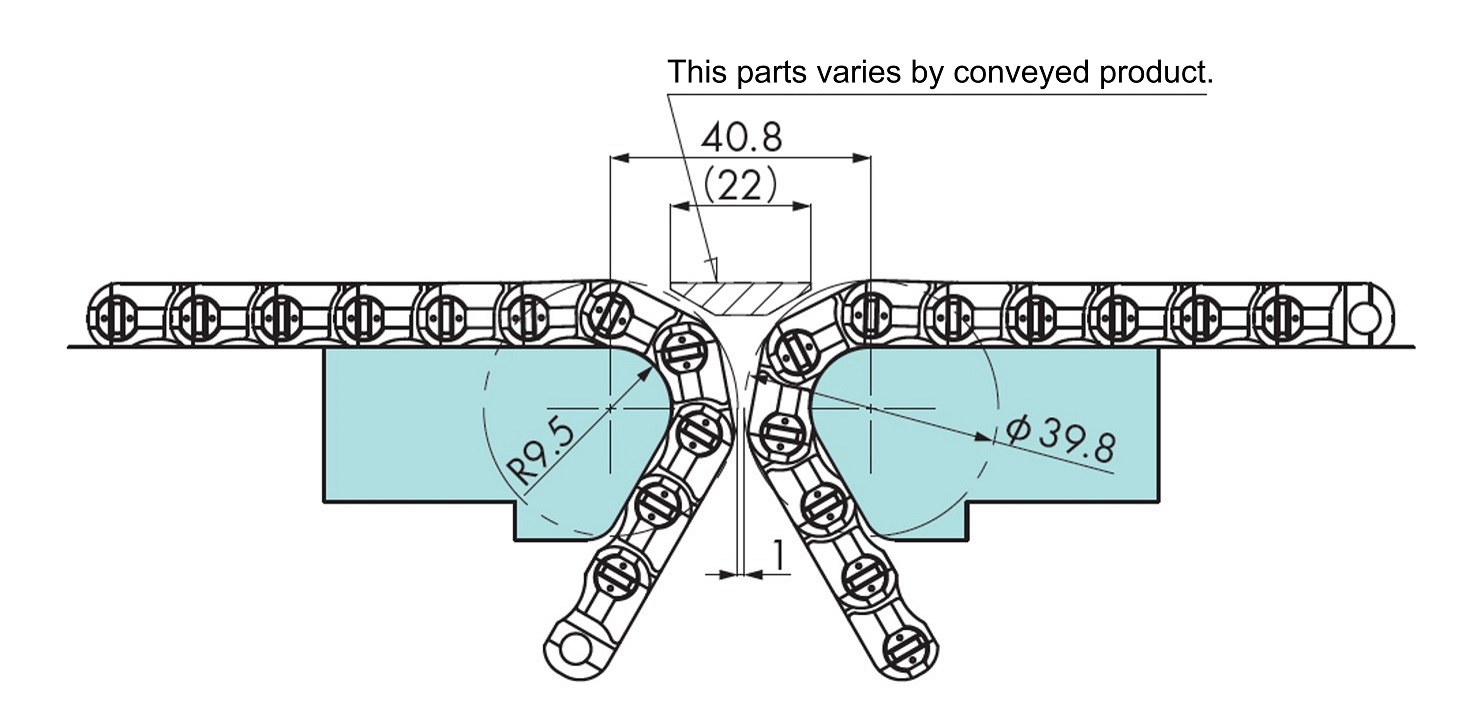

- Reduces dead space when in-line layout
By using a nose bar, dead space between conveyors can be minimized, enabling stable transport.
Please use the WT1510 series nose bar.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | ○ | ○ | △ | ○ | ○ | ○ | ○ | ○ | ○ |
| Medium | ● | ● | △ | ● | ● | ● | ● | ● | ● |
| Small | ● | ● | ○ | ● | ● | ● | ● | ● | ● |
Purpose
- ■Transportation of cell batteries
- ■ Battery module transportation
- ■Transportation of small containers
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 13.1 |
|---|---|
| Purpose | For straight running |
| Chain Type | Open type |
| - | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT1306-W |
|
|
| Chain width mm | 50～3200 |
| Organizational Unit | Every 50mm |
