Plastic modular chain WT2525VG-K type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Rubber type
- Achieving both stable transport and cost-effectiveness. Rubber type now available in the WT2520 series.
- The conveying surface is covered with rubber, making it ideal for inclined conveying of boxes and other items at a maximum angle of 20 degrees.
Features
-
- The high friction of the rubber on the conveying surface makes it ideal for inclined conveyance
By molding rubber into the chain's conveying surface in two colors, the conveyed items do not slip off easily, making it possible to convey items on an incline.
-
・ in-line layout reduces transfer space
-
- Forward/reverse bottom drive layout
-
- Indents prevent wear on the rubber

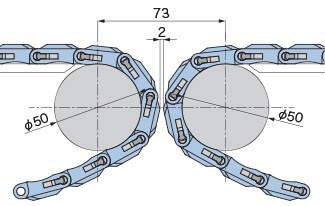

By installing a Φ50 round bar at the end of the conveyor, it is possible to reduce the transfer space between conveyors.

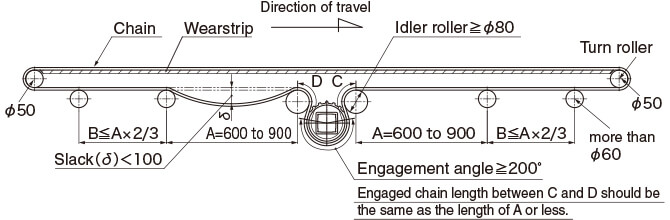

In this case, the drive is forward/reverse bottom drive. For layout information, see "Forward/reverse bottom drive layout" below.
Note: To prevent entanglement at in-line joint, install safety devices (such as a safety cover).
By providing an indented area (area without rubber), it can be used as a chain support (return roller support and rail support) on return-way of the conveyor, preventing wear on the rubber part. Note) 1

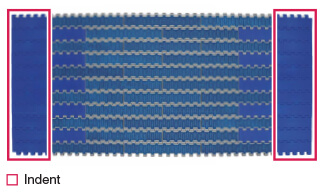

When creating an indent, combine the rubber type WT2525VG-K with the closed type WT2525-K. As shown in the photo on the right, the combination will have different exterior colors. Note 2
Note
1. In the case of special layouts (bottom drive), the rubber part must be supported by the return roller.
2. If an indent is required, the product will be made to order (quote required for each order).
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | ○ | △ | ○ | ○ | △ | △ | ○ | △ |
| Medium | △ | ● | △ | ● | ● | △ | ○ | ● | △ |
| Small | △ | ● | △ | ● | ● | △ | ● | ● | △ |
Purpose
- ■Cardboard sheet transport
- ■ Inclined transport of rubber blocks
- ■ Inclined conveyance of shrink bottles

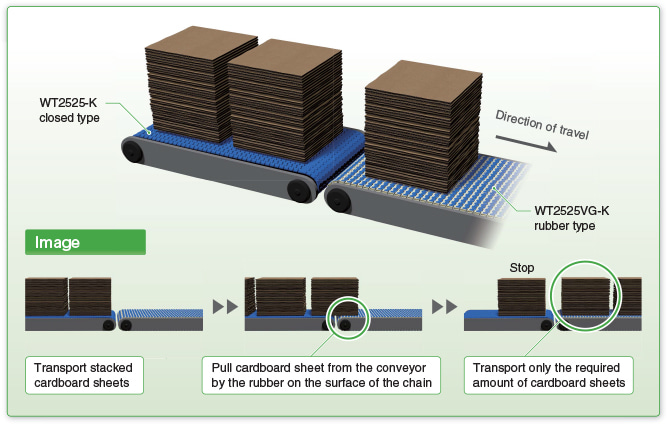

Cutting out cardboard sheets

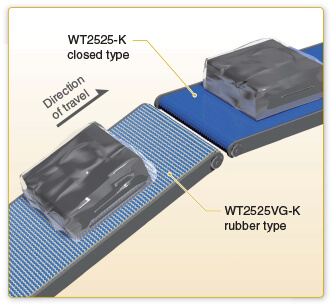

Inclined transport of rubber blocks

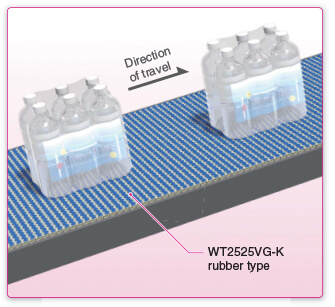

Inclined conveyance of shrink bottles
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Rubber type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | WT2525VG-K |
|
|
| Chain width mm | 76.2～2362.2 |
| Organizational Unit | Every 76.2 mm |
