Hypoid Motor TA/TR series

Right-angle shaft hypoid gear reducer.
The TA series (0.1 to 0.4kW) uses an aluminum frame motor and silent brake, making it small, lightweight, and quiet to operate.
TR series (0.75 - 5.5kW) is compatible with High Efficiency motors. (Premium Efficiency : IE3 )

Features

-High efficiency

Compared to worm gears, it has less slippage and is highly efficient. It consumes less power for the same output, making it an economical drive.
・Low noise

Utilizing the processing technology honed through gear motor production, we promise low noise and high reliability.
Ease of use

It comes pre-filled with grease, so you can use it as is. There are no restrictions on the installation direction.

The output shaft end is tapped as standard. For hollow shaft types, torque arms and shaft end covers are available as options.
- With inverter motor (0.1kW to 0.4kW only)

It can directly connect an inverter-compatible motor and is compatible with the same dimensions as a standard motor. It can operate at 100% constant torque even in the low speed range (from 6Hz).

Equipped with a High Efficiency motor of 0.75kW or more has the same characteristics as those with inverter motor.

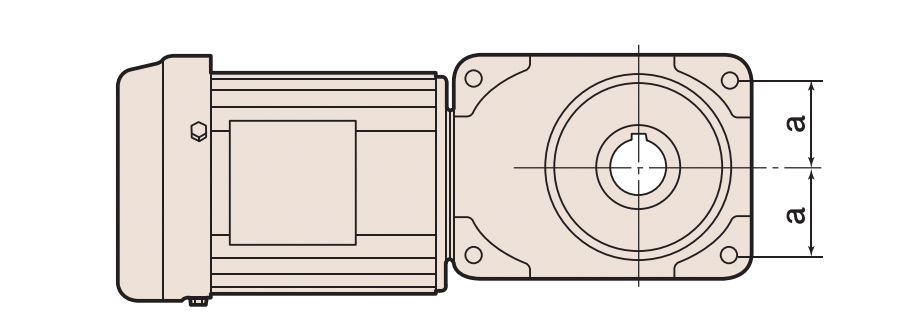

·compact

The height of Hypoid Motor was particularly emphasized, resulting in an extremely low and compact reducer.

The mounting pitch a is the same.

- Compliant with overseas high-efficiency regulations (TR series)

With growing awareness of energy conservation, countries around the world are introducing legislation that mandates the manufacture and sale of high-efficiency motors.

Tsubaki's small gear motor TR series complies with high-efficiency regulations in Japan and around the world. We deliver high-grade, quality products that meet the needs of the times.

[International Standards Compatibility Table]

Please contact us for detailed specifications.
Motor Capacity	0.2kW		0.4kW		0.75kW		1.5kW		2.2kW		3.7kW		5.5kW
Motor Capacity	No brakes	With brake	No brakes	With brake	No brakes	With brake	No brakes	With brake	No brakes	With brake	No brakes	With brake	No brakes	With brake
China High Efficiency Regulation GB18613-2020	√	√	√	√	√	√	√	√	√	√	√	√	√	√
European High Efficiency Regulation IEC60034-30-1(2017) *1	√	√	√	√	√	√	√	√	√	√	√	√	√	√
Korean High Efficiency Regulation KS C 4202	Not applicable				√	√	Please contact us				√	√	√	√
US High Efficiency Regulations MEMA MG1-12-12	Not applicable				√	√	Please contact us				√	√	√	√

*1. For power loss data related to (EU)2019/1781, please click here.

Standard Model

・TA series (equivalent to IE1)

The 0.2kW and 0.4kW models for China and Europe are available as the TR series (IE3).
Motor Capacity	Reduction ratio
0.1kW	1/5～1/1200
0.2kW	1/5～1/1200
0.4kW	1/5～1/1200

・TR series (equivalent to IE3)

Motor Capacity	Reduction ratio
0.75kW	1/5～1/480
1.5kW	1/5～1/200
2.2kW	1/5～1/120
3.7kW	1/5～1/60
5.5kW	1/5～1/40

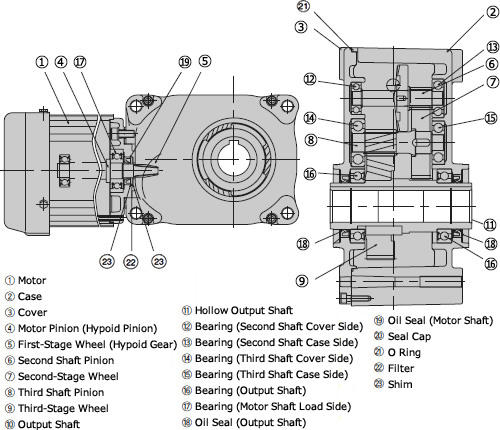

Structure (Triple Reduction hollow shaft type)

Catalogs and Instruction Manuals

Model number display example

- Three-phase motor: 0.1kW to 0.4kW
HMTA	010	-	38	L	1200	L	B
- Three-phase motor: 0.75kW to 5.5kW
HMTR	075	-	42	U	200	S	B
｜｜｜｜｜	｜ Motor Capacity		｜ Frame number	｜ Mounting Type	｜ Reduction ratio	｜｜｜｜｜	｜ Specification Code
｜｜｜｜｜	010：0.1kW			H: Hollow shaft type U: Face mount type L: Foot mount type	1200：1/1200	｜｜｜｜｜	B: With brake FI: With adapter
Series Name HMTA, HMTR: with three-phase motor HRTA: Double shaft type and with adapter						Shaft arrangement L: The output shaft is on the left side when viewed from the motor side. T: Output shaft on both sides R: The output shaft is on the right side when viewed from the motor side. S: Output shaft on one side (face side, face mount type only) No symbol: Hollow shaft type

A wide range of options are available. Please check here for the types and model numbers of options.

■ Tsubaki model No. navigation

*To generate the correct model number, select items in order from left to right.

series	Motor Capacity	Frame No.	Mounting Type	Reduction ratio	Shaft arrangement	Specification Code
HMTA HMTR HRTA	This model number has been redesigned.	20 30 35	H: Hollow shaft type U: Face Mount type L: Foot mount		5～120 160～480 600～1200	L: Left side R: Right side T: Both sides S: One side No symbol	No symbol B: With brake FI: With adapter

series

Motor Capacity

Frame No.

Mounting Type

Reduction ratio

Shaft arrangement

Specification Code

HMTA

HMTR

HRTA

This model number
has been
redesigned.

H: Hollow shaft type

U: Face
Mount type

L: Foot mount

5～120

160～480

600～1200

L: Left side

R: Right side

T: Both sides

S: One side

No symbol

No symbol

B: With brake

FI: With adapter

series

HMTA: A type with a three-phase motor.

HMTR: A type with a three-phase high-efficiency motor.

HRTA: A motorless reducer available in two types: double-shaft type and type with an adapter that can mount a general-purpose flange motor.

Motor Capacity

For HMTA and HMTR: Motor capacity.

For HRTA: Indicates the value equivalent to the motor capacity.

Frame No.

This indicates the size of the reducer. For most models, this is the same value as the output shaft diameter.

It is automatically determined from the motor capacity and reduction ratio.

Mounting Type

H: The output shaft is hollow.

U: The output shaft is a solid type and is face mounted.

L: The output shaft is solid and is Foot mount mounted.

Reduction ratio

Indicates the reduction ratio.

The range division corresponds to the frame number.

Shaft arrangement

L: When the mounting type is Foot mount (L), the solid output shaft is on the left side when viewed from the motor side.

R: When the mounting style is Foot mount (L), the solid output shaft protrudes to the right when viewed from the motor side.

T: A type with a solid output shaft on both sides.

S: When the mounting format is face mount (U), the solid output shaft protrudes toward the mounting surface.

No symbol: If the mounting format is a hollow shaft type (H), the shaft arrangement symbol is not required.

Specification Code

No symbol: If there is a motor but no brake, or if there is no motor and it is a double-shaft type, no specification symbol is required.

B: Add this when a motor is equipped with a brake.

FI: Add this when there is no motor and when using a motor mounting adapter type.

K: For hollow shaft types, Power-Lock is used to mount the driven shaft.

BE: A rotary encoder is installed at the rear of the motor. A brake is included.

SR: Install an electrical overload protection device called a "Shock Relay."

Option symbol A

Z: This motor is compatible with inverter drive.

W: Suitable for outdoor installation.

WC: Outdoor type with brake, motor is continuously rated.

P: Comes with a plastic terminal box.

J: Suitable for installation in locations subject to water.

V: This specifies the power supply voltage will be doubled.

V1: The power supply voltage and frequency are 380V and 50Hz.

V2: The power supply voltage and frequency are 380V, 60Hz.

V3: The power supply voltage and frequency are 415V, 50Hz.

V4: The power supply voltage and frequency are 460V, 60Hz.

N: CE compliant.

N2: UL standard compliant specifications.

*N3: CCC specification.

H: Comes with an aluminum terminal box.

Q: Manual brake release available

M: Rotation can be controlled manually from the motor fan side.

A1: It can be used in environments with ambient temperatures between 0°C and +60°C.

A2: It can be used in environments with ambient temperatures between -30°C and +40°C.

Option symbol B (formerly: supplementary symbol)

・Terminal box position

Move the terminal box to a position rotated clockwise when viewed from the motor side.

P1: 90° offset P2: 180° offset P3: 270° offset

・Terminal box exit direction

Move the outlet to a position rotated clockwise as viewed from the terminal box.

・HMTA motor capacity 0.75kW or less
D1: 90° offset D2: 180° offset D3: 270° offset

・HMTA motor capacity 1.5kW or more
E1: 90° offset E2: 180° offset E3: 270° offset

・In the case of HMTR
F1: 90° offset F2: 180° offset F3: 270° offset

・Paint color

C0: Light gray C1: Light silver metallic

C2: Ivory White C3: Dark Silver Metallic

・Hollow shaft hole diameter

S1：Φ20 S2：Φ25 S3：Φ30 S4：Φ35

S5：Φ40 S6：Φ45 S7：Φ50

Product List

*Click on the model number to display detailed information. Open all Close all

Motor included, three-phase 0.1kW (model number HMTA010~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTA010-20H5	HMTA010-22U5S HMTA010-22U5T	HMTA010-22L5L HMTA010-22L5R HMTA010-22L5T	HMTA010-20H5B	HMTA010-22U5SB HMTA010-22U5TB	HMTA010-22L5LB HMTA010-22L5RB HMTA010-22L5TB
1/7.5	HMTA010-20H7.5	---	---	HMTA010-20H7.5B	---	---
1/10	HMTA010-20H10	HMTA010-22U10S HMTA010-22U10T	HMTA010-22L10L HMTA010-22L10R HMTA010-22L10T	HMTA010-20H10B	HMTA010-22U10SB HMTA010-22U10TB	HMTA010-22L10LB HMTA010-22L10RB HMTA010-22L10TB
1/12.5	HMTA010-20H12.5	---	---	HMTA010-20H12.5B	---	---
1/15	HMTA010-20H15	HMTA010-22U15S HMTA010-22U15T	HMTA010-22L15L HMTA010-22L15R HMTA010-22L15T	HMTA010-20H15B	HMTA010-22U15SB HMTA010-22U15TB	HMTA010-22L15LB HMTA010-22L15RB HMTA010-22L15TB
1/20	HMTA010-20H20	HMTA010-22U20S HMTA010-22U20T	HMTA010-22L20L HMTA010-22L20R HMTA010-22L20T	HMTA010-20H20B	HMTA010-22U20SB HMTA010-22U20TB	HMTA010-22L20LB HMTA010-22L20RB HMTA010-22L20TB
1/25	HMTA010-20H25	HMTA010-22U25S HMTA010-22U25T	HMTA010-22L25L HMTA010-22L25R HMTA010-22L25T	HMTA010-20H25B	HMTA010-22U25SB HMTA010-22U25TB	HMTA010-22L25LB HMTA010-22L25RB HMTA010-22L25TB
1/30	HMTA010-20H30	HMTA010-22U30S HMTA010-22U30T	HMTA010-22L30L HMTA010-22L30R HMTA010-22L30T	HMTA010-20H30B	HMTA010-22U30SB HMTA010-22U30TB	HMTA010-22L30LB HMTA010-22L30RB HMTA010-22L30TB
1/40	HMTA010-20H40	HMTA010-22U40S HMTA010-22U40T	HMTA010-22L40L HMTA010-22L40R HMTA010-22L40T	HMTA010-20H40B	HMTA010-22U40SB HMTA010-22U40TB	HMTA010-22L40LB HMTA010-22L40RB HMTA010-22L40TB
1/50	HMTA010-20H50	HMTA010-22U50S HMTA010-22U50T	HMTA010-22L50L HMTA010-22L50R HMTA010-22L50T	HMTA010-20H50B	HMTA010-22U50SB HMTA010-22U50TB	HMTA010-22L50LB HMTA010-22L50RB HMTA010-22L50TB
1/60	HMTA010-20H60	HMTA010-22U60S HMTA010-22U60T	HMTA010-22L60L HMTA010-22L60R HMTA010-22L60T	HMTA010-20H60B	HMTA010-22U60SB HMTA010-22U60TB	HMTA010-22L60LB HMTA010-22L60RB HMTA010-22L60TB
1/80	HMTA010-20H80	HMTA010-22U80S HMTA010-22U80T	HMTA010-22L80L HMTA010-22L80R HMTA010-22L80T	HMTA010-20H80B	HMTA010-22U80SB HMTA010-22U80TB	HMTA010-22L80LB HMTA010-22L80RB HMTA010-22L80TB
1/100	HMTA010-20H100	HMTA010-22U100S HMTA010-22U100T	HMTA010-22L100L HMTA010-22L100R HMTA010-22L100T	HMTA010-20H100B	HMTA010-22U100SB HMTA010-22U100TB	HMTA010-22L100LB HMTA010-22L100RB HMTA010-22L100TB
1/120	HMTA010-20H120	HMTA010-22U120S HMTA010-22U120T	HMTA010-22L120L HMTA010-22L120R HMTA010-22L120T	HMTA010-20H120B	HMTA010-22U120SB HMTA010-22U120TB	HMTA010-22L120LB HMTA010-22L120RB HMTA010-22L120TB
1/160	HMTA010-30H160	HMTA010-24U160S HMTA010-24U160T	HMTA010-24L160L HMTA010-24L160R HMTA010-24L160T	HMTA010-30H160B	HMTA010-24U160SB HMTA010-24U160TB	HMTA010-24L160LB HMTA010-24L160RB HMTA010-24L160TB
1/200	HMTA010-30H200	HMTA010-24U200S HMTA010-24U200T	HMTA010-24L200L HMTA010-24L200R HMTA010-24L200T	HMTA010-30H200B	HMTA010-24U200SB HMTA010-24U200TB	HMTA010-24L200LB HMTA010-24L200RB HMTA010-24L200TB
1/300	HMTA010-30H300	HMTA010-28U300S HMTA010-28U300T	HMTA010-28L300L HMTA010-28L300R HMTA010-28L300T	HMTA010-30H300B	HMTA010-28U300SB HMTA010-28U300TB	HMTA010-28L300LB HMTA010-28L300RB HMTA010-28L300TB
1/360	HMTA010-30H360	HMTA010-28U360S HMTA010-28U360T	HMTA010-28L360L HMTA010-28L360R HMTA010-28L360T	HMTA010-30H360B	HMTA010-28U360SB HMTA010-28U360TB	HMTA010-28L360LB HMTA010-28L360RB HMTA010-28L360TB
1/480	HMTA010-30H480	HMTA010-28U480S HMTA010-28U480T	HMTA010-28L480L HMTA010-28L480R HMTA010-28L480T	HMTA010-30H480B	HMTA010-28U480SB HMTA010-28U480TB	HMTA010-28L480LB HMTA010-28L480RB HMTA010-28L480TB
1/600	HMTA010-35H600	HMTA010-38U600S HMTA010-38U600T	HMTA010-38L600L HMTA010-38L600R HMTA010-38L600T	HMTA010-35H600B	HMTA010-38U600SB HMTA010-38U600TB	HMTA010-38L600LB HMTA010-38L600RB HMTA010-38L600TB
1/720	HMTA010-35H720	HMTA010-38U720S HMTA010-38U720T	HMTA010-38L720L HMTA010-38L720R HMTA010-38L720T	HMTA010-35H720B	HMTA010-38U720SB HMTA010-38U720TB	HMTA010-38L720LB HMTA010-38L720RB HMTA010-38L720TB
1/960	HMTA010-35H960	HMTA010-38U960S HMTA010-38U960T	HMTA010-38L960L HMTA010-38L960R HMTA010-38L960T	HMTA010-35H960B	HMTA010-38U960SB HMTA010-38U960TB	HMTA010-38L960LB HMTA010-38L960RB HMTA010-38L960TB
1/1200	HMTA010-35H1200	HMTA010-38U1200S HMTA010-38U1200T	HMTA010-38L1200L HMTA010-38L1200R HMTA010-38L1200T	HMTA010-35H1200B	HMTA010-38U1200SB HMTA010-38U1200TB	HMTA010-38L1200LB HMTA010-38L1200RB HMTA010-38L1200TB

Motor included, three-phase 0.2kW (model number HMTA020~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTA020-20H5	HMTA020-22U5S HMTA020-22U5T	HMTA020-22L5L HMTA020-22L5R HMTA020-22L5T	HMTA020-20H5B	HMTA020-22U5SB HMTA020-22U5TB	HMTA020-22L5LB HMTA020-22L5RB HMTA020-22L5TB
1/7.5	HMTA020-20H7.5	---	---	HMTA020-20H7.5B	---	---
1/10	HMTA020-20H10	HMTA020-22U10S HMTA020-22U10T	HMTA020-22L10L HMTA020-22L10R HMTA020-22L10T	HMTA020-20H10B	HMTA020-22U10SB HMTA020-22U10TB	HMTA020-22L10LB HMTA020-22L10RB HMTA020-22L10TB
1/12.5	HMTA020-20H12.5	---	---	HMTA020-20H12.5B	---	---
1/15	HMTA020-20H15	HMTA020-22U15S HMTA020-22U15T	HMTA020-22L15L HMTA020-22L15R HMTA020-22L15T	HMTA020-20H15B	HMTA020-22U15SB HMTA020-22U15TB	HMTA020-22L15LB HMTA020-22L15RB HMTA020-22L15TB
1/20	HMTA020-20H20	HMTA020-22U20S HMTA020-22U20T	HMTA020-22L20L HMTA020-22L20R HMTA020-22L20T	HMTA020-20H20B	HMTA020-22U20SB HMTA020-22U20TB	HMTA020-22L20LB HMTA020-22L20RB HMTA020-22L20TB
1/25	HMTA020-20H25	HMTA020-22U25S HMTA020-22U25T	HMTA020-22L25L HMTA020-22L25R HMTA020-22L25T	HMTA020-20H25B	HMTA020-22U25SB HMTA020-22U25TB	HMTA020-22L25LB HMTA020-22L25RB HMTA020-22L25TB
1/30	HMTA020-20H30	HMTA020-22U30S HMTA020-22U30T	HMTA020-22L30L HMTA020-22L30R HMTA020-22L30T	HMTA020-20H30B	HMTA020-22U30SB HMTA020-22U30TB	HMTA020-22L30LB HMTA020-22L30RB HMTA020-22L30TB
1/40	HMTA020-20H40	HMTA020-22U40S HMTA020-22U40T	HMTA020-22L40L HMTA020-22L40R HMTA020-22L40T	HMTA020-20H40B	HMTA020-22U40SB HMTA020-22U40TB	HMTA020-22L40LB HMTA020-22L40RB HMTA020-22L40TB
1/50	HMTA020-20H50	HMTA020-22U50S HMTA020-22U50T	HMTA020-22L50L HMTA020-22L50R HMTA020-22L50T	HMTA020-20H50B	HMTA020-22U50SB HMTA020-22U50TB	HMTA020-22L50LB HMTA020-22L50RB HMTA020-22L50TB
1/60	HMTA020-20H60	HMTA020-22U60S HMTA020-22U60T	HMTA020-22L60L HMTA020-22L60R HMTA020-22L60T	HMTA020-20H60B	HMTA020-22U60SB HMTA020-22U60TB	HMTA020-22L60LB HMTA020-22L60RB HMTA020-22L60TB
1/80	HMTA020-30H80	HMTA020-28U80S HMTA020-28U80T	HMTA020-28L80L HMTA020-28L80R HMTA020-28L80T	HMTA020-30H80B	HMTA020-28U80SB HMTA020-28U80TB	HMTA020-28L80LB HMTA020-28L80RB HMTA020-28L80TB
1/100	HMTA020-30H100	HMTA020-28U100S HMTA020-28U100T	HMTA020-28L100L HMTA020-28L100R HMTA020-28L100T	HMTA020-30H100B	HMTA020-28U100SB HMTA020-28U100TB	HMTA020-28L100LB HMTA020-28L100RB HMTA020-28L100TB
1/120	HMTA020-30H120	HMTA020-28U120S HMTA020-28U120T	HMTA020-28L120L HMTA020-28L120R HMTA020-28L120T	HMTA020-30H120B	HMTA020-28U120SB HMTA020-28U120TB	HMTA020-28L120LB HMTA020-28L120RB HMTA020-28L120TB
1/160	HMTA020-30H160	HMTA020-28U160S HMTA020-28U160T	HMTA020-28L160L HMTA020-28L160R HMTA020-28L160T	HMTA020-30H160B	HMTA020-28U160SB HMTA020-28U160TB	HMTA020-28L160LB HMTA020-28L160RB HMTA020-28L160TB
1/200	HMTA020-30H200	HMTA020-28U200S HMTA020-28U200T	HMTA020-28L200L HMTA020-28L200R HMTA020-28L200T	HMTA020-30H200B	HMTA020-28U200SB HMTA020-28U200TB	HMTA020-28L200LB HMTA020-28L200RB HMTA020-28L200TB
1/300	HMTA020-35H300	HMTA020-38U300S HMTA020-38U300T	HMTA020-38L300L HMTA020-38L300R HMTA020-38L300T	HMTA020-35H300B	HMTA020-38U300SB HMTA020-38U300TB	HMTA020-38L300LB HMTA020-38L300RB HMTA020-38L300TB
1/360	HMTA020-35H360	HMTA020-38U360S HMTA020-38U360T	HMTA020-38L360L HMTA020-38L360R HMTA020-38L360T	HMTA020-35H360B	HMTA020-38U360SB HMTA020-38U360TB	HMTA020-38L360LB HMTA020-38L360RB HMTA020-38L360TB
1/480	HMTA020-35H480	HMTA020-38U480S HMTA020-38U480T	HMTA020-38L480L HMTA020-38L480R HMTA020-38L480T	HMTA020-35H480B	HMTA020-38U480SB HMTA020-38U480TB	HMTA020-38L480LB HMTA020-38L480RB HMTA020-38L480TB
1/600	HMTA020-45H600	HMTA020-42U600S HMTA020-42U600T	HMTA020-42L600L HMTA020-42L600R HMTA020-42L600T	HMTA020-45H600B	HMTA020-42U600SB HMTA020-42U600TB	HMTA020-42L600LB HMTA020-42L600RB HMTA020-42L600TB
1/720	HMTA020-45H720	HMTA020-42U720S HMTA020-42U720T	HMTA020-42L720L HMTA020-42L720R HMTA020-42L720T	HMTA020-45H720B	HMTA020-42U720SB HMTA020-42U720TB	HMTA020-42L720LB HMTA020-42L720RB HMTA020-42L720TB
1/960	HMTA020-45H960	HMTA020-42U960S HMTA020-42U960T	HMTA020-42L960L HMTA020-42L960R HMTA020-42L960T	HMTA020-45H960B	HMTA020-42U960SB HMTA020-42U960TB	HMTA020-42L960LB HMTA020-42L960RB HMTA020-42L960TB
1/1200	HMTA020-45H1200	HMTA020-42U1200S HMTA020-42U1200T	HMTA020-42L1200L HMTA020-42L1200R HMTA020-42L1200T	HMTA020-45H1200B	HMTA020-42U1200SB HMTA020-42U1200TB	HMTA020-42L1200LB HMTA020-42L1200RB HMTA020-42L1200TB

Motor included, three-phase 0.4kW (model number HMTA040~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTA040-30H5	HMTA040-28U5S HMTA040-28U5T	HMTA040-28L5L HMTA040-28L5R HMTA040-28L5T	HMTA040-30H5B	HMTA040-28U5SB HMTA040-28U5TB	HMTA040-28L5LB HMTA040-28L5RB HMTA040-28L5TB
1/7.5	HMTA040-30H7.5	---	---	HMTA040-30H7.5B	---	---
1/10	HMTA040-30H10	HMTA040-28U10S HMTA040-28U10T	HMTA040-28L10L HMTA040-28L10R HMTA040-28L10T	HMTA040-30H10B	HMTA040-28U10SB HMTA040-28U10TB	HMTA040-28L10LB HMTA040-28L10RB HMTA040-28L10TB
1/12.5	HMTA040-30H12.5	---	---	HMTA040-30H12.5B	---	---
1/15	HMTA040-30H15	HMTA040-28U15S HMTA040-28U15T	HMTA040-28L15L HMTA040-28L15R HMTA040-28L15T	HMTA040-30H15B	HMTA040-28U15SB HMTA040-28U15TB	HMTA040-28L15LB HMTA040-28L15RB HMTA040-28L15TB
1/20	HMTA040-30H20	HMTA040-28U20S HMTA040-28U20T	HMTA040-28L20L HMTA040-28L20R HMTA040-28L20T	HMTA040-30H20B	HMTA040-28U20SB HMTA040-28U20TB	HMTA040-28L20LB HMTA040-28L20RB HMTA040-28L20TB
1/25	HMTA040-30H25	HMTA040-28U25S HMTA040-28U25T	HMTA040-28L25L HMTA040-28L25R HMTA040-28L25T	HMTA040-30H25B	HMTA040-28U25SB HMTA040-28U25TB	HMTA040-28L25LB HMTA040-28L25RB HMTA040-28L25TB
1/30	HMTA040-30H30	HMTA040-28U30S HMTA040-28U30T	HMTA040-28L30L HMTA040-28L30R HMTA040-28L30T	HMTA040-30H30B	HMTA040-28U30SB HMTA040-28U30TB	HMTA040-28L30LB HMTA040-28L30RB HMTA040-28L30TB
1/40	HMTA040-30H40	HMTA040-28U40S HMTA040-28U40T	HMTA040-28L40L HMTA040-28L40R HMTA040-28L40T	HMTA040-30H40B	HMTA040-28U40SB HMTA040-28U40TB	HMTA040-28L40LB HMTA040-28L40RB HMTA040-28L40TB
1/50	HMTA040-30H50	HMTA040-28U50S HMTA040-28U50T	HMTA040-28L50L HMTA040-28L50R HMTA040-28L50T	HMTA040-30H50B	HMTA040-28U50SB HMTA040-28U50TB	HMTA040-28L50LB HMTA040-28L50RB HMTA040-28L50TB
1/60	HMTA040-35H60	HMTA040-38U60S HMTA040-38U60T	HMTA040-38L60L HMTA040-38L60R HMTA040-38L60T	HMTA040-35H60B	HMTA040-38U60SB HMTA040-38U60TB	HMTA040-38L60LB HMTA040-38L60RB HMTA040-38L60TB
1/80	HMTA040-35H80	HMTA040-38U80S HMTA040-38U80T	HMTA040-38L80L HMTA040-38L80R HMTA040-38L80T	HMTA040-35H80B	HMTA040-38U80SB HMTA040-38U80TB	HMTA040-38L80LB HMTA040-38L80RB HMTA040-38L80TB
1/100	HMTA040-35H100	HMTA040-38U100S HMTA040-38U100T	HMTA040-38L100L HMTA040-38L100R HMTA040-38L100T	HMTA040-35H100B	HMTA040-38U100SB HMTA040-38U100TB	HMTA040-38L100LB HMTA040-38L100RB HMTA040-38L100TB
1/120	HMTA040-35H120	HMTA040-38U120S HMTA040-38U120T	HMTA040-38L120L HMTA040-38L120R HMTA040-38L120T	HMTA040-35H120B	HMTA040-38U120SB HMTA040-38U120TB	HMTA040-38L120LB HMTA040-38L120RB HMTA040-38L120TB
1/160	HMTA040-35H160	HMTA040-38U160S HMTA040-38U160T	HMTA040-38L160L HMTA040-38L160R HMTA040-38L160T	HMTA040-35H160B	HMTA040-38U160SB HMTA040-38U160TB	HMTA040-38L160LB HMTA040-38L160RB HMTA040-38L160TB
1/200	HMTA040-35H200	HMTA040-38U200S HMTA040-38U200T	HMTA040-38L200L HMTA040-38L200R HMTA040-38L200T	HMTA040-35H200B	HMTA040-38U200SB HMTA040-38U200TB	HMTA040-38L200LB HMTA040-38L200RB HMTA040-38L200TB
1/300	HMTA040-45H300	HMTA040-42U300S HMTA040-42U300T	HMTA040-42L300L HMTA040-42L300R HMTA040-42L300T	HMTA040-45H300B	HMTA040-42U300SB HMTA040-42U300TB	HMTA040-42L300LB HMTA040-42L300RB HMTA040-42L300TB
1/360	HMTA040-45H360	HMTA040-42U360S HMTA040-42U360T	HMTA040-42L360L HMTA040-42L360R HMTA040-42L360T	HMTA040-45H360B	HMTA040-42U360SB HMTA040-42U360TB	HMTA040-42L360LB HMTA040-42L360RB HMTA040-42L360TB
1/480	HMTA040-45H480	HMTA040-42U480S HMTA040-42U480T	HMTA040-42L480L HMTA040-42L480R HMTA040-42L480T	HMTA040-45H480B	HMTA040-42U480SB HMTA040-42U480TB	HMTA040-42L480LB HMTA040-42L480RB HMTA040-42L480TB
1/600	HMTA040-55H600	HMTA040-50U600S HMTA040-50U600T	HMTA040-50L600L HMTA040-50L600R HMTA040-50L600T	HMTA040-55H600B	HMTA040-50U600SB HMTA040-50U600TB	HMTA040-50L600LB HMTA040-50L600RB HMTA040-50L600TB
1/720	HMTA040-55H720	HMTA040-50U720S HMTA040-50U720T	HMTA040-50L720L HMTA040-50L720R HMTA040-50L720T	HMTA040-55H720B	HMTA040-50U720SB HMTA040-50U720TB	HMTA040-50L720LB HMTA040-50L720RB HMTA040-50L720TB
1/960	HMTA040-55H960	HMTA040-50U960S HMTA040-50U960T	HMTA040-50L960L HMTA040-50L960R HMTA040-50L960T	HMTA040-55H960B	HMTA040-50U960SB HMTA040-50U960TB	HMTA040-50L960LB HMTA040-50L960RB HMTA040-50L960TB
1/1200	HMTA040-55H1200	HMTA040-50U1200S HMTA040-50U1200T	HMTA040-50L1200L HMTA040-50L1200R HMTA040-50L1200T	HMTA040-55H1200B	HMTA040-50U1200SB HMTA040-50U1200TB	HMTA040-50L1200LB HMTA040-50L1200RB HMTA040-50L1200TB

Motor included, three-phase 0.75kW (model number HMTR075~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTR075-35H5	HMTR075-38U5S HMTR075-38U5T	HMTR075-38L5L HMTR075-38L5R HMTR075-38L5T	HMTR075-35H5B	HMTR075-38U5SB HMTR075-38U5TB	HMTR075-38L5LB HMTR075-38L5RB HMTR075-38L5TB
1/7.5	HMTR075-35H7.5	---	---	HMTR075-35H7.5B	---	---
1/10	HMTR075-35H10	HMTR075-38U10S HMTR075-38U10T	HMTR075-38L10L HMTR075-38L10R HMTR075-38L10T	HMTR075-35H10B	HMTR075-38U10SB HMTR075-38U10TB	HMTR075-38L10LB HMTR075-38L10RB HMTR075-38L10TB
1/12.5	HMTR075-35H12.5	---	---	HMTR075-35H12.5B	---	---
1/15	HMTR075-35H15	HMTR075-38U15S HMTR075-38U15T	HMTR075-38L15L HMTR075-38L15R HMTR075-38L15T	HMTR075-35H15B	HMTR075-38U15SB HMTR075-38U15TB	HMTR075-38L15LB HMTR075-38L15RB HMTR075-38L15TB
1/20	HMTR075-35H20	HMTR075-38U20S HMTR075-38U20T	HMTR075-38L20L HMTR075-38L20R HMTR075-38L20T	HMTR075-35H20B	HMTR075-38U20SB HMTR075-38U20TB	HMTR075-38L20LB HMTR075-38L20RB HMTR075-38L20TB
1/25	HMTR075-35H25	HMTR075-38U25S HMTR075-38U25T	HMTR075-38L25L HMTR075-38L25R HMTR075-38L25T	HMTR075-35H25B	HMTR075-38U25SB HMTR075-38U25TB	HMTR075-38L25LB HMTR075-38L25RB HMTR075-38L25TB
1/30	HMTR075-35H30	HMTR075-38U30S HMTR075-38U30T	HMTR075-38L30L HMTR075-38L30R HMTR075-38L30T	HMTR075-35H30B	HMTR075-38U30SB HMTR075-38U30TB	HMTR075-38L30LB HMTR075-38L30RB HMTR075-38L30TB
1/40	HMTR075-35H40	HMTR075-38U40S HMTR075-38U40T	HMTR075-38L40L HMTR075-38L40R HMTR075-38L40T	HMTR075-35H40B	HMTR075-38U40SB HMTR075-38U40TB	HMTR075-38L40LB HMTR075-38L40RB HMTR075-38L40TB
1/50	HMTR075-35H50	HMTR075-38U50S HMTR075-38U50T	HMTR075-38L50L HMTR075-38L50R HMTR075-38L50T	HMTR075-35H50B	HMTR075-38U50SB HMTR075-38U50TB	HMTR075-38L50LB HMTR075-38L50RB HMTR075-38L50TB
1/60	HMTR075-45H60	HMTR075-42U60S HMTR075-42U60T	HMTR075-42L60L HMTR075-42L60R HMTR075-42L60T	HMTR075-45H60B	HMTR075-42U60SB HMTR075-42U60TB	HMTR075-42L60LB HMTR075-42L60RB HMTR075-42L60TB
1/80	HMTR075-45H80	HMTR075-42U80S HMTR075-42U80T	HMTR075-42L80L HMTR075-42L80R HMTR075-42L80T	HMTR075-45H80B	HMTR075-42U80SB HMTR075-42U80TB	HMTR075-42L80LB HMTR075-42L80RB HMTR075-42L80TB
1/100	HMTR075-45H100	HMTR075-42U100S HMTR075-42U100T	HMTR075-42L100L HMTR075-42L100R HMTR075-42L100T	HMTR075-45H100B	HMTR075-42U100SB HMTR075-42U100TB	HMTR075-42L100LB HMTR075-42L100RB HMTR075-42L100TB
1/120	HMTR075-45H120	HMTR075-42U120S HMTR075-42U120T	HMTR075-42L120L HMTR075-42L120R HMTR075-42L120T	HMTR075-45H120B	HMTR075-42U120SB HMTR075-42U120TB	HMTR075-42L120LB HMTR075-42L120RB HMTR075-42L120TB
1/160	HMTR075-45H160	HMTR075-42U160S HMTR075-42U160T	HMTR075-42L160L HMTR075-42L160R HMTR075-42L160T	HMTR075-45H160B	HMTR075-42U160SB HMTR075-42U160TB	HMTR075-42L160LB HMTR075-42L160RB HMTR075-42L160TB
1/200	HMTR075-45H200	HMTR075-42U200S HMTR075-42U200T	HMTR075-42L200L HMTR075-42L200R HMTR075-42L200T	HMTR075-45H200B	HMTR075-42U200SB HMTR075-42U200TB	HMTR075-42L200LB HMTR075-42L200RB HMTR075-42L200TB
1/300	HMTR075-55H300	HMTR075-50U300S HMTR075-50U300T	HMTR075-50L300L HMTR075-50L300R HMTR075-50L300T	HMTR075-55H300B	HMTR075-50U300SB HMTR075-50U300TB	HMTR075-50L300LB HMTR075-50L300RB HMTR075-50L300TB
1/360	HMTR075-55H360	HMTR075-50U360S HMTR075-50U360T	HMTR075-50L360L HMTR075-50L360R HMTR075-50L360T	HMTR075-55H360B	HMTR075-50U360SB HMTR075-50U360TB	HMTR075-50L360LB HMTR075-50L360RB HMTR075-50L360TB
1/480	HMTR075-55H480	HMTR075-50U480S HMTR075-50U480T	HMTR075-50L480L HMTR075-50L480R HMTR075-50L480T	HMTR075-55H480B	HMTR075-50U480SB HMTR075-50U480TB	HMTR075-50L480LB HMTR075-50L480RB HMTR075-50L480TB

Motor included, three-phase 1.5kW (model number HMTR151~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTR151-45H5	HMTR151-42U5S HMTR151-42U5T	HMTR151-42L5L HMTR151-42L5R HMTR151-42L5T	HMTR151-45H5B	HMTR151-42U5SB HMTR151-42U5TB	HMTR151-42L5LB HMTR151-42L5RB HMTR151-42L5TB
1/10	HMTR151-45H10	HMTR151-42U10S HMTR151-42U10T	HMTR151-42L10L HMTR151-42L10R HMTR151-42L10T	HMTR151-45H10B	HMTR151-42U10SB HMTR151-42U10TB	HMTR151-42L10LB HMTR151-42L10RB HMTR151-42L10TB
1/15	HMTR151-45H15	HMTR151-42U15S HMTR151-42U15T	HMTR151-42L15L HMTR151-42L15R HMTR151-42L15T	HMTR151-45H15B	HMTR151-42U15SB HMTR151-42U15TB	HMTR151-42L15LB HMTR151-42L15RB HMTR151-42L15TB
1/20	HMTR151-45H20	HMTR151-42U20S HMTR151-42U20T	HMTR151-42L20L HMTR151-42L20R HMTR151-42L20T	HMTR151-45H20B	HMTR151-42U20SB HMTR151-42U20TB	HMTR151-42L20LB HMTR151-42L20RB HMTR151-42L20TB
1/25	HMTR151-45H25	HMTR151-42U25S HMTR151-42U25T	HMTR151-42L25L HMTR151-42L25R HMTR151-42L25T	HMTR151-45H25B	HMTR151-42U25SB HMTR151-42U25TB	HMTR151-42L25LB HMTR151-42L25RB HMTR151-42L25TB
1/30	HMTR151-45H30	HMTR151-42U30S HMTR151-42U30T	HMTR151-42L30L HMTR151-42L30R HMTR151-42L30T	HMTR151-45H30B	HMTR151-42U30SB HMTR151-42U30TB	HMTR151-42L30LB HMTR151-42L30RB HMTR151-42L30TB
1/40	HMTR151-45H40	HMTR151-42U40S HMTR151-42U40T	HMTR151-42L40L HMTR151-42L40R HMTR151-42L40T	HMTR151-45H40B	HMTR151-42U40SB HMTR151-42U40TB	HMTR151-42L40LB HMTR151-42L40RB HMTR151-42L40TB
1/50	HMTR151-45H50	HMTR151-42U50S HMTR151-42U50T	HMTR151-42L50L HMTR151-42L50R HMTR151-42L50T	HMTR151-45H50B	HMTR151-42U50SB HMTR151-42U50TB	HMTR151-42L50LB HMTR151-42L50RB HMTR151-42L50TB
1/60	HMTR151-45H60	HMTR151-42U60S HMTR151-42U60T	HMTR151-42L60L HMTR151-42L60R HMTR151-42L60T	HMTR151-45H60B	HMTR151-42U60SB HMTR151-42U60TB	HMTR151-42L60LB HMTR151-42L60RB HMTR151-42L60TB
1/80	HMTR151-45H80	HMTR151-42U80S HMTR151-42U80T	HMTR151-42L80L HMTR151-42L80R HMTR151-42L80T	HMTR151-45H80B	HMTR151-42U80SB HMTR151-42U80TB	HMTR151-42L80LB HMTR151-42L80RB HMTR151-42L80TB
1/100	HMTR151-55H100	HMTR151-50U100S HMTR151-50U100T	HMTR151-50L100L HMTR151-50L100R HMTR151-50L100T	HMTR151-55H100B	HMTR151-50U100SB HMTR151-50U100TB	HMTR151-50L100LB HMTR151-50L100RB HMTR151-50L100TB
1/120	HMTR151-55H120	HMTR151-50U120S HMTR151-50U120T	HMTR151-50L120L HMTR151-50L120R HMTR151-50L120T	HMTR151-55H120B	HMTR151-50U120SB HMTR151-50U120TB	HMTR151-50L120LB HMTR151-50L120RB HMTR151-50L120TB
1/160	HMTR151-55H160	HMTR151-50U160S HMTR151-50U160T	HMTR151-50L160L HMTR151-50L160R HMTR151-50L160T	HMTR151-55H160B	HMTR151-50U160SB HMTR151-50U160TB	HMTR151-50L160LB HMTR151-50L160RB HMTR151-50L160TB
1/200	HMTR151-55H200	HMTR151-50U200S HMTR151-50U200T	HMTR151-50L200L HMTR151-50L200R HMTR151-50L200T	HMTR151-55H200B	HMTR151-50U200SB HMTR151-50U200TB	HMTR151-50L200LB HMTR151-50L200RB HMTR151-50L200TB

Motor included, three-phase 2.2kW (model number HMTR221~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTR221-45H5	HMTR221-42U5S HMTR221-42U5T	HMTR221-42L5L HMTR221-42L5R HMTR221-42L5T	HMTR221-45H5B	HMTR221-42U5SB HMTR221-42U5TB	HMTR221-42L5LB HMTR221-42L5RB HMTR221-42L5TB
1/10	HMTR221-45H10	HMTR221-42U10S HMTR221-42U10T	HMTR221-42L10L HMTR221-42L10R HMTR221-42L10T	HMTR221-45H10B	HMTR221-42U10SB HMTR221-42U10TB	HMTR221-42L10LB HMTR221-42L10RB HMTR221-42L10TB
1/15	HMTR221-45H15	HMTR221-42U15S HMTR221-42U15T	HMTR221-42L15L HMTR221-42L15R HMTR221-42L15T	HMTR221-45H15B	HMTR221-42U15SB HMTR221-42U15TB	HMTR221-42L15LB HMTR221-42L15RB HMTR221-42L15TB
1/20	HMTR221-45H20	HMTR221-42U20S HMTR221-42U20T	HMTR221-42L20L HMTR221-42L20R HMTR221-42L20T	HMTR221-45H20B	HMTR221-42U20SB HMTR221-42U20TB	HMTR221-42L20LB HMTR221-42L20RB HMTR221-42L20TB
1/25	HMTR221-45H25	HMTR221-42U25S HMTR221-42U25T	HMTR221-42L25L HMTR221-42L25R HMTR221-42L25T	HMTR221-45H25B	HMTR221-42U25SB HMTR221-42U25TB	HMTR221-42L25LB HMTR221-42L25RB HMTR221-42L25TB
1/30	HMTR221-45H30	HMTR221-42U30S HMTR221-42U30T	HMTR221-42L30L HMTR221-42L30R HMTR221-42L30T	HMTR221-45H30B	HMTR221-42U30SB HMTR221-42U30TB	HMTR221-42L30LB HMTR221-42L30RB HMTR221-42L30TB
1/40	HMTR221-45H40	HMTR221-42U40S HMTR221-42U40T	HMTR221-42L40L HMTR221-42L40R HMTR221-42L40T	HMTR221-45H40B	HMTR221-42U40SB HMTR221-42U40TB	HMTR221-42L40LB HMTR221-42L40RB HMTR221-42L40TB
1/50	HMTR221-45H50	HMTR221-42U50S HMTR221-42U50T	HMTR221-42L50L HMTR221-42L50R HMTR221-42L50T	HMTR221-45H50B	HMTR221-42U50SB HMTR221-42U50TB	HMTR221-42L50LB HMTR221-42L50RB HMTR221-42L50TB
1/60	HMTR221-45H60	HMTR221-42U60S HMTR221-42U60T	HMTR221-42L60L HMTR221-42L60R HMTR221-42L60T	HMTR221-45H60B	HMTR221-42U60SB HMTR221-42U60TB	HMTR221-42L60LB HMTR221-42L60RB HMTR221-42L60TB
1/80	HMTR221-55H80	HMTR221-50U80S HMTR221-50U80T	HMTR221-50L80L HMTR221-50L80R HMTR221-50L80T	HMTR221-55H80B	HMTR221-50U80SB HMTR221-50U80TB	HMTR221-50L80LB HMTR221-50L80RB HMTR221-50L80TB
1/100	HMTR221-55H100	HMTR221-50U100S HMTR221-50U100T	HMTR221-50L100L HMTR221-50L100R HMTR221-50L100T	HMTR221-55H100B	HMTR221-50U100SB HMTR221-50U100TB	HMTR221-50L100LB HMTR221-50L100RB HMTR221-50L100TB
1/120	HMTR221-55H120	HMTR221-50U120S HMTR221-50U120T	HMTR221-50L120L HMTR221-50L120R HMTR221-50L120T	HMTR221-55H120B	HMTR221-50U120SB HMTR221-50U120TB	HMTR221-50L120LB HMTR221-50L120RB HMTR221-50L120TB

Motor included, three-phase 3.7kW (model number HMTR370~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTR370-55H5	HMTR370-50U5S HMTR370-50U5T	HMTR370-50L5L HMTR370-50L5R HMTR370-50L5T	HMTR370-55H5B	HMTR370-50U5SB HMTR370-50U5TB	HMTR370-50L5LB HMTR370-50L5RB HMTR370-50L5TB
1/10	HMTR370-55H10	HMTR370-50U10S HMTR370-50U10T	HMTR370-50L10L HMTR370-50L10R HMTR370-50L10T	HMTR370-55H10B	HMTR370-50U10SB HMTR370-50U10TB	HMTR370-50L10LB HMTR370-50L10RB HMTR370-50L10TB
1/15	HMTR370-55H15	HMTR370-50U15S HMTR370-50U15T	HMTR370-50L15L HMTR370-50L15R HMTR370-50L15T	HMTR370-55H15B	HMTR370-50U15SB HMTR370-50U15TB	HMTR370-50L15LB HMTR370-50L15RB HMTR370-50L15TB
1/20	HMTR370-55H20	HMTR370-50U20S HMTR370-50U20T	HMTR370-50L20L HMTR370-50L20R HMTR370-50L20T	HMTR370-55H20B	HMTR370-50U20SB HMTR370-50U20TB	HMTR370-50L20LB HMTR370-50L20RB HMTR370-50L20TB
1/25	HMTR370-55H25	HMTR370-50U25S HMTR370-50U25T	HMTR370-50L25L HMTR370-50L25R HMTR370-50L25T	HMTR370-55H25B	HMTR370-50U25SB HMTR370-50U25TB	HMTR370-50L25LB HMTR370-50L25RB HMTR370-50L25TB
1/30	HMTR370-55H30	HMTR370-50U30S HMTR370-50U30T	HMTR370-50L30L HMTR370-50L30R HMTR370-50L30T	HMTR370-55H30B	HMTR370-50U30SB HMTR370-50U30TB	HMTR370-50L30LB HMTR370-50L30RB HMTR370-50L30TB
1/40	HMTR370-55H40	HMTR370-50U40S HMTR370-50U40T	HMTR370-50L40L HMTR370-50L40R HMTR370-50L40T	HMTR370-55H40B	HMTR370-50U40SB HMTR370-50U40TB	HMTR370-50L40LB HMTR370-50L40RB HMTR370-50L40TB
1/50	HMTR370-55H50	HMTR370-50U50S HMTR370-50U50T	HMTR370-50L50L HMTR370-50L50R HMTR370-50L50T	HMTR370-55H50B	HMTR370-50U50SB HMTR370-50U50TB	HMTR370-50L50LB HMTR370-50L50RB HMTR370-50L50TB
1/60	HMTR370-55H60	HMTR370-50U60S HMTR370-50U60T	HMTR370-50L60L HMTR370-50L60R HMTR370-50L60T	HMTR370-55H60B	HMTR370-50U60SB HMTR370-50U60TB	HMTR370-50L60LB HMTR370-50L60RB HMTR370-50L60TB

Motor included, three-phase 5.5kW (model number HMTR550~)

Reduction ratio	Without brake			With brake
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HMTR550-55H5	HMTR550-50U5S HMTR550-50U5T	HMTR550-50L5L HMTR550-50L5R HMTR550-50L5T	HMTR550-55H5B	HMTR550-50U5SB HMTR550-50U5TB	HMTR550-50L5LB HMTR550-50L5RB HMTR550-50L5TB
1/10	HMTR550-55H10	HMTR550-50U10S HMTR550-50U10T	HMTR550-50L10L HMTR550-50L10R HMTR550-50L10T	HMTR550-55H10B	HMTR550-50U10SB HMTR550-50U10TB	HMTR550-50L10LB HMTR550-50L10RB HMTR550-50L10TB
1/15	HMTR550-55H15	HMTR550-50U15S HMTR550-50U15T	HMTR550-50L15L HMTR550-50L15R HMTR550-50L15T	HMTR550-55H15B	HMTR550-50U15SB HMTR550-50U15TB	HMTR550-50L15LB HMTR550-50L15RB HMTR550-50L15TB
1/20	HMTR550-55H20	HMTR550-50U20S HMTR550-50U20T	HMTR550-50L20L HMTR550-50L20R HMTR550-50L20T	HMTR550-55H20B	HMTR550-50U20SB HMTR550-50U20TB	HMTR550-50L20LB HMTR550-50L20RB HMTR550-50L20TB
1/25	HMTR550-55H25	HMTR550-50U25S HMTR550-50U25T	HMTR550-50L25L HMTR550-50L25R HMTR550-50L25T	HMTR550-55H25B	HMTR550-50U25SB HMTR550-50U25TB	HMTR550-50L25LB HMTR550-50L25RB HMTR550-50L25TB
1/30	HMTR550-55H30	HMTR550-50U30S HMTR550-50U30T	HMTR550-50L30L HMTR550-50L30R HMTR550-50L30T	HMTR550-55H30B	HMTR550-50U30SB HMTR550-50U30TB	HMTR550-50L30LB HMTR550-50L30RB HMTR550-50L30TB
1/40	HMTR550-55H40	HMTR550-50U40S HMTR550-50U40T	HMTR550-50L40L HMTR550-50L40R HMTR550-50L40T	HMTR550-55H40B	HMTR550-50U40SB HMTR550-50U40TB	HMTR550-50L40LB HMTR550-50L40RB HMTR550-50L40TB

Motor-less, with adapter, double-shaft type, equivalent to 0.1kW (model number HRTA010~)

Reduction ratio	Adapter included			Double shaft type
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HRTA010-30H5FI	HRTA010-24U5SFI HRTA010-24U5TFI	HRTA010-24L5LFI HRTA010-24L5RFI HRTA010-24L5TFI	HRTA010-30H5	HRTA010-24U5S HRTA010-24U5T	HRTA010-24L5L HRTA010-24L5R HRTA010-24L5T
1/10	HRTA010-30H10FI	HRTA010-24U10SFI HRTA010-24U10TFI	HRTA010-24L10LFI HRTA010-24L10RFI HRTA010-24L10TFI	HRTA010-30H10	HRTA010-24U10S HRTA010-24U10T	HRTA010-24L10L HRTA010-24L10R HRTA010-24L10T
1/15	HRTA010-30H15FI	HRTA010-24U15SFI HRTA010-24U15TFI	HRTA010-24L15LFI HRTA010-24L15RFI HRTA010-24L15TFI	HRTA010-30H15	HRTA010-24U15S HRTA010-24U15T	HRTA010-24L15L HRTA010-24L15R HRTA010-24L15T
1/20	HRTA010-30H20FI	HRTA010-24U20SFI HRTA010-24U20TFI	HRTA010-24L20LFI HRTA010-24L20RFI HRTA010-24L20TFI	HRTA010-30H20	HRTA010-24U20S HRTA010-24U20T	HRTA010-24L20L HRTA010-24L20R HRTA010-24L20T
1/25	HRTA010-30H25FI	HRTA010-24U25SFI HRTA010-24U25TFI	HRTA010-24L25LFI HRTA010-24L25RFI HRTA010-24L25TFI	HRTA010-30H25	HRTA010-24U25S HRTA010-24U25T	HRTA010-24L25L HRTA010-24L25R HRTA010-24L25T
1/30	HRTA010-30H30FI	HRTA010-24U30SFI HRTA010-24U30TFI	HRTA010-24L30LFI HRTA010-24L30RFI HRTA010-24L30TFI	HRTA010-30H30	HRTA010-24U30S HRTA010-24U30T	HRTA010-24L30L HRTA010-24L30R HRTA010-24L30T
1/40	HRTA010-30H40FI	HRTA010-24U40SFI HRTA010-24U40TFI	HRTA010-24L40LFI HRTA010-24L40RFI HRTA010-24L40TFI	HRTA010-30H40	HRTA010-24U40S HRTA010-24U40T	HRTA010-24L40L HRTA010-24L40R HRTA010-24L40T
1/50	HRTA010-30H50FI	HRTA010-24U50SFI HRTA010-24U50TFI	HRTA010-24L50LFI HRTA010-24L50RFI HRTA010-24L50TFI	HRTA010-30H50	HRTA010-24U50S HRTA010-24U50T	HRTA010-24L50L HRTA010-24L50R HRTA010-24L50T
1/60	HRTA010-30H60FI	HRTA010-24U60SFI HRTA010-24U60TFI	HRTA010-24L60LFI HRTA010-24L60RFI HRTA010-24L60TFI	HRTA010-30H60	HRTA010-24U60S HRTA010-24U60T	HRTA010-24L60L HRTA010-24L60R HRTA010-24L60T
1/80	HRTA010-30H80FI	HRTA010-24U80SFI HRTA010-24U80TFI	HRTA010-24L80LFI HRTA010-24L80RFI HRTA010-24L80TFI	HRTA010-30H80	HRTA010-24U80S HRTA010-24U80T	HRTA010-24L80L HRTA010-24L80R HRTA010-24L80T
1/100	HRTA010-30H100FI	HRTA010-24U100SFI HRTA010-24U100TFI	HRTA010-24L100LFI HRTA010-24L100RFI HRTA010-24L100TFI	HRTA010-30H100	HRTA010-24U100S HRTA010-24U100T	HRTA010-24L100L HRTA010-24L100R HRTA010-24L100T
1/120	HRTA010-30H120FI	HRTA010-24U120SFI HRTA010-24U120TFI	HRTA010-24L120LFI HRTA010-24L120RFI HRTA010-24L120TFI	HRTA010-30H120	HRTA010-24U120S HRTA010-24U120T	HRTA010-24L120L HRTA010-24L120R HRTA010-24L120T
1/160	HRTA010-30H160FI	HRTA010-24U160SFI HRTA010-24U160TFI	HRTA010-24L160LFI HRTA010-24L160RFI HRTA010-24L160TFI	HRTA010-30H160	HRTA010-24U160S HRTA010-24U160T	HRTA010-24L160L HRTA010-24L160R HRTA010-24L160T
1/200	HRTA010-30H200FI	HRTA010-24U200SFI HRTA010-24U200TFI	HRTA010-24L200LFI HRTA010-24L200RFI HRTA010-24L200TFI	HRTA010-30H200	HRTA010-24U200S HRTA010-24U200T	HRTA010-24L200L HRTA010-24L200R HRTA010-24L200T

Motor-less, with adapter, double-shaft type, equivalent to 0.2kW (model number HRTA020~)

Reduction ratio	Adapter included			Double shaft type
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HRTA020-30H5FI	HRTA020-28U5SFI HRTA020-28U5TFI	HRTA020-28L5LFI HRTA020-28L5RFI HRTA020-28L5TFI	HRTA020-30H5	HRTA020-28U5S HRTA020-28U5T	HRTA020-28L5L HRTA020-28L5R HRTA020-28L5T
1/10	HRTA020-30H10FI	HRTA020-28U10SFI HRTA020-28U10TFI	HRTA020-28L10LFI HRTA020-28L10RFI HRTA020-28L10TFI	HRTA020-30H10	HRTA020-28U10S HRTA020-28U10T	HRTA020-28L10L HRTA020-28L10R HRTA020-28L10T
1/15	HRTA020-30H15FI	HRTA020-28U15SFI HRTA020-28U15TFI	HRTA020-28L15LFI HRTA020-28L15RFI HRTA020-28L15TFI	HRTA020-30H15	HRTA020-28U15S HRTA020-28U15T	HRTA020-28L15L HRTA020-28L15R HRTA020-28L15T
1/20	HRTA020-30H20FI	HRTA020-28U20SFI HRTA020-28U20TFI	HRTA020-28L20LFI HRTA020-28L20RFI HRTA020-28L20TFI	HRTA020-30H20	HRTA020-28U20S HRTA020-28U20T	HRTA020-28L20L HRTA020-28L20R HRTA020-28L20T
1/25	HRTA020-30H25FI	HRTA020-28U25SFI HRTA020-28U25TFI	HRTA020-28L25LFI HRTA020-28L25RFI HRTA020-28L25TFI	HRTA020-30H25	HRTA020-28U25S HRTA020-28U25T	HRTA020-28L25L HRTA020-28L25R HRTA020-28L25T
1/30	HRTA020-30H30FI	HRTA020-28U30SFI HRTA020-28U30TFI	HRTA020-28L30LFI HRTA020-28L30RFI HRTA020-28L30TFI	HRTA020-30H30	HRTA020-28U30S HRTA020-28U30T	HRTA020-28L30L HRTA020-28L30R HRTA020-28L30T
1/40	HRTA020-30H40FI	HRTA020-28U40SFI HRTA020-28U40TFI	HRTA020-28L40LFI HRTA020-28L40RFI HRTA020-28L40TFI	HRTA020-30H40	HRTA020-28U40S HRTA020-28U40T	HRTA020-28L40L HRTA020-28L40R HRTA020-28L40T
1/50	HRTA020-30H50FI	HRTA020-28U50SFI HRTA020-28U50TFI	HRTA020-28L50LFI HRTA020-28L50RFI HRTA020-28L50TFI	HRTA020-30H50	HRTA020-28U50S HRTA020-28U50T	HRTA020-28L50L HRTA020-28L50R HRTA020-28L50T
1/60	HRTA020-30H60FI	HRTA020-28U60SFI HRTA020-28U60TFI	HRTA020-28L60LFI HRTA020-28L60RFI HRTA020-28L60TFI	HRTA020-30H60	HRTA020-28U60S HRTA020-28U60T	HRTA020-28L60L HRTA020-28L60R HRTA020-28L60T
1/80	HRTA020-30H80FI	HRTA020-28U80SFI HRTA020-28U80TFI	HRTA020-28L80LFI HRTA020-28L80RFI HRTA020-28L80TFI	HRTA020-30H80	HRTA020-28U80S HRTA020-28U80T	HRTA020-28L80L HRTA020-28L80R HRTA020-28L80T
1/100	HRTA020-30H100FI	HRTA020-28U100SFI HRTA020-28U100TFI	HRTA020-28L100LFI HRTA020-28L100RFI HRTA020-28L100TFI	HRTA020-30H100	HRTA020-28U100S HRTA020-28U100T	HRTA020-28L100L HRTA020-28L100R HRTA020-28L100T
1/120	HRTA020-30H120FI	HRTA020-28U120SFI HRTA020-28U120TFI	HRTA020-28L120LFI HRTA020-28L120RFI HRTA020-28L120TFI	HRTA020-30H120	HRTA020-28U120S HRTA020-28U120T	HRTA020-28L120L HRTA020-28L120R HRTA020-28L120T
1/160	HRTA020-30H160FI	HRTA020-28U160SFI HRTA020-28U160TFI	HRTA020-28L160LFI HRTA020-28L160RFI HRTA020-28L160TFI	HRTA020-30H160	HRTA020-28U160S HRTA020-28U160T	HRTA020-28L160L HRTA020-28L160R HRTA020-28L160T
1/200	HRTA020-30H200FI	HRTA020-28U200SFI HRTA020-28U200TFI	HRTA020-28L200LFI HRTA020-28L200RFI HRTA020-28L200TFI	HRTA020-30H200	HRTA020-28U200S HRTA020-28U200T	HRTA020-28L200L HRTA020-28L200R HRTA020-28L200T

Motor-less, with adapter, double-shaft type, equivalent to 0.4kW (model number HRTA040-)

Reduction ratio	Adapter included			Double shaft type
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HRTA040-30H5FI	HRTA040-28U5SFI HRTA040-28U5TFI	HRTA040-28L5LFI HRTA040-28L5RFI HRTA040-28L5TFI	HRTA040-30H5	HRTA040-28U5S HRTA040-28U5T	HRTA040-28L5L HRTA040-28L5R HRTA040-28L5T
1/10	HRTA040-30H10FI	HRTA040-28U10SFI HRTA040-28U10TFI	HRTA040-28L10LFI HRTA040-28L10RFI HRTA040-28L10TFI	HRTA040-30H10	HRTA040-28U10S HRTA040-28U10T	HRTA040-28L10L HRTA040-28L10R HRTA040-28L10T
1/15	HRTA040-30H15FI	HRTA040-28U15SFI HRTA040-28U15TFI	HRTA040-28L15LFI HRTA040-28L15RFI HRTA040-28L15TFI	HRTA040-30H15	HRTA040-28U15S HRTA040-28U15T	HRTA040-28L15L HRTA040-28L15R HRTA040-28L15T
1/20	HRTA040-30H20FI	HRTA040-28U20SFI HRTA040-28U20TFI	HRTA040-28L20LFI HRTA040-28L20RFI HRTA040-28L20TFI	HRTA040-30H20	HRTA040-28U20S HRTA040-28U20T	HRTA040-28L20L HRTA040-28L20R HRTA040-28L20T
1/25	HRTA040-30H25FI	HRTA040-28U25SFI HRTA040-28U25TFI	HRTA040-28L25LFI HRTA040-28L25RFI HRTA040-28L25TFI	HRTA040-30H25	HRTA040-28U25S HRTA040-28U25T	HRTA040-28L25L HRTA040-28L25R HRTA040-28L25T
1/30	HRTA040-30H30FI	HRTA040-28U30SFI HRTA040-28U30TFI	HRTA040-28L30LFI HRTA040-28L30RFI HRTA040-28L30TFI	HRTA040-30H30	HRTA040-28U30S HRTA040-28U30T	HRTA040-28L30L HRTA040-28L30R HRTA040-28L30T
1/40	HRTA040-30H40FI	HRTA040-28U40SFI HRTA040-28U40TFI	HRTA040-28L40LFI HRTA040-28L40RFI HRTA040-28L40TFI	HRTA040-30H40	HRTA040-28U40S HRTA040-28U40T	HRTA040-28L40L HRTA040-28L40R HRTA040-28L40T
1/50	HRTA040-30H50FI	HRTA040-28U50SFI HRTA040-28U50TFI	HRTA040-28L50LFI HRTA040-28L50RFI HRTA040-28L50TFI	HRTA040-30H50	HRTA040-28U50S HRTA040-28U50T	HRTA040-28L50L HRTA040-28L50R HRTA040-28L50T
1/60	HRTA040-35H60FI	HRTA040-38U60SFI HRTA040-38U60TFI	HRTA040-38L60LFI HRTA040-38L60RFI HRTA040-38L60TFI	HRTA040-35H60	HRTA040-38U60S HRTA040-38U60T	HRTA040-38L60L HRTA040-38L60R HRTA040-38L60T
1/80	HRTA040-35H80FI	HRTA040-38U80SFI HRTA040-38U80TFI	HRTA040-38L80LFI HRTA040-38L80RFI HRTA040-38L80TFI	HRTA040-35H80	HRTA040-38U80S HRTA040-38U80T	HRTA040-38L80L HRTA040-38L80R HRTA040-38L80T
1/100	HRTA040-35H100FI	HRTA040-38U100SFI HRTA040-38U100TFI	HRTA040-38L100LFI HRTA040-38L100RFI HRTA040-38L100TFI	HRTA040-35H100	HRTA040-38U100S HRTA040-38U100T	HRTA040-38L100L HRTA040-38L100R HRTA040-38L100T
1/120	HRTA040-35H120FI	HRTA040-38U120SFI HRTA040-38U120TFI	HRTA040-38L120LFI HRTA040-38L120RFI HRTA040-38L120TFI	HRTA040-35H120	HRTA040-38U120S HRTA040-38U120T	HRTA040-38L120L HRTA040-38L120R HRTA040-38L120T
1/160	HRTA040-35H160FI	HRTA040-38U160SFI HRTA040-38U160TFI	HRTA040-38L160LFI HRTA040-38L160RFI HRTA040-38L160TFI	HRTA040-35H160	HRTA040-38U160S HRTA040-38U160T	HRTA040-38L160L HRTA040-38L160R HRTA040-38L160T
1/200	HRTA040-35H200FI	HRTA040-38U200SFI HRTA040-38U200TFI	HRTA040-38L200LFI HRTA040-38L200RFI HRTA040-38L200TFI	HRTA040-35H200	HRTA040-38U200S HRTA040-38U200T	HRTA040-38L200L HRTA040-38L200R HRTA040-38L200T

No motor, with adapter, double shaft type, equivalent to 0.75kW (model number HRTA075~)

Reduction ratio	Adapter included			Double shaft type
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HRTA075-35H5FI	HRTA075-38U5SFI HRTA075-38U5TFI	HRTA075-38L5LFI HRTA075-38L5RFI HRTA075-38L5TFI	HRTA075-35H5	HRTA075-38U5S HRTA075-38U5T	HRTA075-38L5L HRTA075-38L5R HRTA075-38L5T
1/10	HRTA075-35H10FI	HRTA075-38U10SFI HRTA075-38U10TFI	HRTA075-38L10LFI HRTA075-38L10RFI HRTA075-38L10TFI	HRTA075-35H10	HRTA075-38U10S HRTA075-38U10T	HRTA075-38L10L HRTA075-38L10R HRTA075-38L10T
1/15	HRTA075-35H15FI	HRTA075-38U15SFI HRTA075-38U15TFI	HRTA075-38L15LFI HRTA075-38L15RFI HRTA075-38L15TFI	HRTA075-35H15	HRTA075-38U15S HRTA075-38U15T	HRTA075-38L15L HRTA075-38L15R HRTA075-38L15T
1/20	HRTA075-35H20FI	HRTA075-38U20SFI HRTA075-38U20TFI	HRTA075-38L20LFI HRTA075-38L20RFI HRTA075-38L20TFI	HRTA075-35H20	HRTA075-38U20S HRTA075-38U20T	HRTA075-38L20L HRTA075-38L20R HRTA075-38L20T
1/25	HRTA075-35H25FI	HRTA075-38U25SFI HRTA075-38U25TFI	HRTA075-38L25LFI HRTA075-38L25RFI HRTA075-38L25TFI	HRTA075-35H25	HRTA075-38U25S HRTA075-38U25T	HRTA075-38L25L HRTA075-38L25R HRTA075-38L25T
1/30	HRTA075-35H30FI	HRTA075-38U30SFI HRTA075-38U30TFI	HRTA075-38L30LFI HRTA075-38L30RFI HRTA075-38L30TFI	HRTA075-35H30	HRTA075-38U30S HRTA075-38U30T	HRTA075-38L30L HRTA075-38L30R HRTA075-38L30T
1/40	HRTA075-35H40FI	HRTA075-38U40SFI HRTA075-38U40TFI	HRTA075-38L40LFI HRTA075-38L40RFI HRTA075-38L40TFI	HRTA075-35H40	HRTA075-38U40S HRTA075-38U40T	HRTA075-38L40L HRTA075-38L40R HRTA075-38L40T
1/50	HRTA075-35H50FI	HRTA075-38U50SFI HRTA075-38U50TFI	HRTA075-38L50LFI HRTA075-38L50RFI HRTA075-38L50TFI	HRTA075-35H50	HRTA075-38U50S HRTA075-38U50T	HRTA075-38L50L HRTA075-38L50R HRTA075-38L50T
1/60	HRTA075-45H60FI	HRTA075-42U60SFI HRTA075-42U60TFI	HRTA075-42L60LFI HRTA075-42L60RFI HRTA075-42L60TFI	HRTA075-45H60	HRTA075-42U60S HRTA075-42U60T	HRTA075-42L60L HRTA075-42L60R HRTA075-42L60T
1/80	HRTA075-45H80FI	HRTA075-42U80SFI HRTA075-42U80TFI	HRTA075-42L80LFI HRTA075-42L80RFI HRTA075-42L80TFI	HRTA075-45H80	HRTA075-42U80S HRTA075-42U80T	HRTA075-42L80L HRTA075-42L80R HRTA075-42L80T
1/100	HRTA075-45H100FI	HRTA075-42U100SFI HRTA075-42U100TFI	HRTA075-42L100LFI HRTA075-42L100RFI HRTA075-42L100TFI	HRTA075-45H100	HRTA075-42U100S HRTA075-42U100T	HRTA075-42L100L HRTA075-42L100R HRTA075-42L100T
1/120	HRTA075-45H120FI	HRTA075-42U120SFI HRTA075-42U120TFI	HRTA075-42L120LFI HRTA075-42L120RFI HRTA075-42L120TFI	HRTA075-45H120	HRTA075-42U120S HRTA075-42U120T	HRTA075-42L120L HRTA075-42L120R HRTA075-42L120T
1/160	HRTA075-45H160FI	HRTA075-42U160SFI HRTA075-42U160TFI	HRTA075-42L160LFI HRTA075-42L160RFI HRTA075-42L160TFI	HRTA075-45H160	HRTA075-42U160S HRTA075-42U160T	HRTA075-42L160L HRTA075-42L160R HRTA075-42L160T
1/200	HRTA075-45H200FI	HRTA075-42U200SFI HRTA075-42U200TFI	HRTA075-42L200LFI HRTA075-42L200RFI HRTA075-42L200TFI	HRTA075-45H200	HRTA075-42U200S HRTA075-42U200T	HRTA075-42L200L HRTA075-42L200R HRTA075-42L200T

Motor-less, with adapter, double-shaft type, equivalent to 1.5kW (model number HRTA150-)

Reduction ratio	Adapter included			Double shaft type
Reduction ratio	Hollow shaft type	Face mount type	Foot mount type	Hollow shaft type	Face mount type	Foot mount type
1/5	HRTA150-45H5FI	HRTA150-42U5SFI HRTA150-42U5TFI	HRTA150-42L5LFI HRTA150-42L5RFI HRTA150-42L5TFI	HRTA150-45H5	HRTA150-42U5S HRTA150-42U5T	HRTA150-42L5L HRTA150-42L5R HRTA150-42L5T
1/10	HRTA150-45H10FI	HRTA150-42U10SFI HRTA150-42U10TFI	HRTA150-42L10LFI HRTA150-42L10RFI HRTA150-42L10TFI	HRTA150-45H10	HRTA150-42U10S HRTA150-42U10T	HRTA150-42L10L HRTA150-42L10R HRTA150-42L10T
1/15	HRTA150-45H15FI	HRTA150-42U15SFI HRTA150-42U15TFI	HRTA150-42L15LFI HRTA150-42L15RFI HRTA150-42L15TFI	HRTA150-45H15	HRTA150-42U15S HRTA150-42U15T	HRTA150-42L15L HRTA150-42L15R HRTA150-42L15T
1/20	HRTA150-45H20FI	HRTA150-42U20SFI HRTA150-42U20TFI	HRTA150-42L20LFI HRTA150-42L20RFI HRTA150-42L20TFI	HRTA150-45H20	HRTA150-42U20S HRTA150-42U20T	HRTA150-42L20L HRTA150-42L20R HRTA150-42L20T
1/25	HRTA150-45H25FI	HRTA150-42U25SFI HRTA150-42U25TFI	HRTA150-42L25LFI HRTA150-42L25RFI HRTA150-42L25TFI	HRTA150-45H25	HRTA150-42U25S HRTA150-42U25T	HRTA150-42L25L HRTA150-42L25R HRTA150-42L25T
1/30	HRTA150-45H30FI	HRTA150-42U30SFI HRTA150-42U30TFI	HRTA150-42L30LFI HRTA150-42L30RFI HRTA150-42L30TFI	HRTA150-45H30	HRTA150-42U30S HRTA150-42U30T	HRTA150-42L30L HRTA150-42L30R HRTA150-42L30T
1/40	HRTA150-45H40FI	HRTA150-42U40SFI HRTA150-42U40TFI	HRTA150-42L40LFI HRTA150-42L40RFI HRTA150-42L40TFI	HRTA150-45H40	HRTA150-42U40S HRTA150-42U40T	HRTA150-42L40L HRTA150-42L40R HRTA150-42L40T
1/50	HRTA150-45H50FI	HRTA150-42U50SFI HRTA150-42U50TFI	HRTA150-42L50LFI HRTA150-42L50RFI HRTA150-42L50TFI	HRTA150-45H50	HRTA150-42U50S HRTA150-42U50T	HRTA150-42L50L HRTA150-42L50R HRTA150-42L50T

option

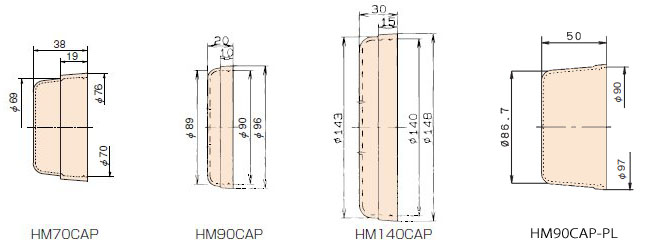

Shaft end cover

For hollow shaft types, a cover is available to attach to the end of the hollow shaft opposite the mounting side. Also compatible with adapters and double shaft types.
(Material: Polypropylene resin, green)

・Dimensions (unit: mm), PDF drawing, standard price and delivery

Model number	Applicable capacity, speed ratio	PDF Drawings	Standard price	Delivery
HM70CAP	0.1kW 1/5～1/120 0.2kW 1/5～1/60	PDF Standard and keyless specifications	Please contact us	Please contact us
HM90CAP	0.1kW 1/160～1/1200 0.2kW 1/80～1200 0.4kW 1/5～1/480 0.75kW 1/5～1/200 1.5kW 1/5～1/80 2.2kW 1/5～1/60	PDF For standard specifications	Please contact us	Please contact us
HM140CAP	0.4kW 1/600～1/1200 0.75kW 1/300～1/480 1.5kW 1/100～1/200 2.2kW 1/80～1/120 3.7kW 1/5～1/60 5.5kW 1/5～40	PDF For standard specifications	Please contact us	Please contact us
HM90CAP-PL	0.1kW 1/160～1/200 0.2kW 1/80～1/200 0.4kW 1/5～1/200 0.75kW 1/5～1/50	PDF Standard and keyless specifications	Please contact us	Please contact us

Torque arm

- For hollow shaft types, torque arms are available for on-shaft mounting. also compatible with adapters and double-shaft types. (material: SS400)

It can be installed in either position depending on the installation condition of the reducer.

・Dimensions (unit: mm), PDF drawing, standard price and delivery list

Model number	Applicable capacity, speed ratio	A	B	C	D	H	L	R1	R2	R3	ΦZ1	ΦZ2	Recommendation bolts	Plate thickness t	PDF Drawings	Standard price	Delivery
HM100TA	60W 1/5～1/240 90W 1/5～1/240 0.1kW 1/5～1/120 0.2kW 1/5～1/60	100	62	38	70	82	126	9	11	37	9	11	M10	4.5	PDF	Please contact us	Please contact us
HM150TA	0.1kW 1/160～1/480 0.2kW 1/80～200 0.4kW 1/5～1/50	150	103	47	88	129	157	11	15	47	11	13	M12	6	PDF	Please contact us	Please contact us
HM200TA	0.1kW 1/600～1/1200 0.2kW 1/300～1/480 0.4kW 1/60～1/200 0.75kW 1/5～1/50	200	142	58	106	171	188	12	17	47	13	17	M16	6	PDF	Please contact us	Please contact us
HM250TA	0.2kW 1/600～1/1200 0.4kW 1/300～1/480 0.75kW 1/60～1/200 1.5kW 1/5～1/80 2.2kW 1/5～1/60	250	177	73	123	214	228	16	21	―	17	21	M20	9	PDF	Please contact us	Please contact us
HM350TA	0.4kW 1/600～1/1200 0.75kW 1/300～1/480 1.5kW 1/100～1/200 2.2kW 1/80～1/120 3.7kW 1/5～1/60 5.5kW 1/5～1/40	350	245	105	182	293	331	22	26	―	22	22	M20	9	PDF	Please contact us	Please contact us

TSUBAKI Power Transmission Products Information Site
