Steel Series Heavy Load TKV Type
- A steel Cable Carrier (CABLEVEYOR) with a frame structure that can be used at high speeds and frequently.
- -Cable Carrier (CABLEVEYOR) is attached to the outer periphery of the frame, and the entire frame moves.
- - It can handle the highest speeds of all steel Cable Carrier (CABLEVEYOR).
- ・Consultation with us is required to select and order this product.

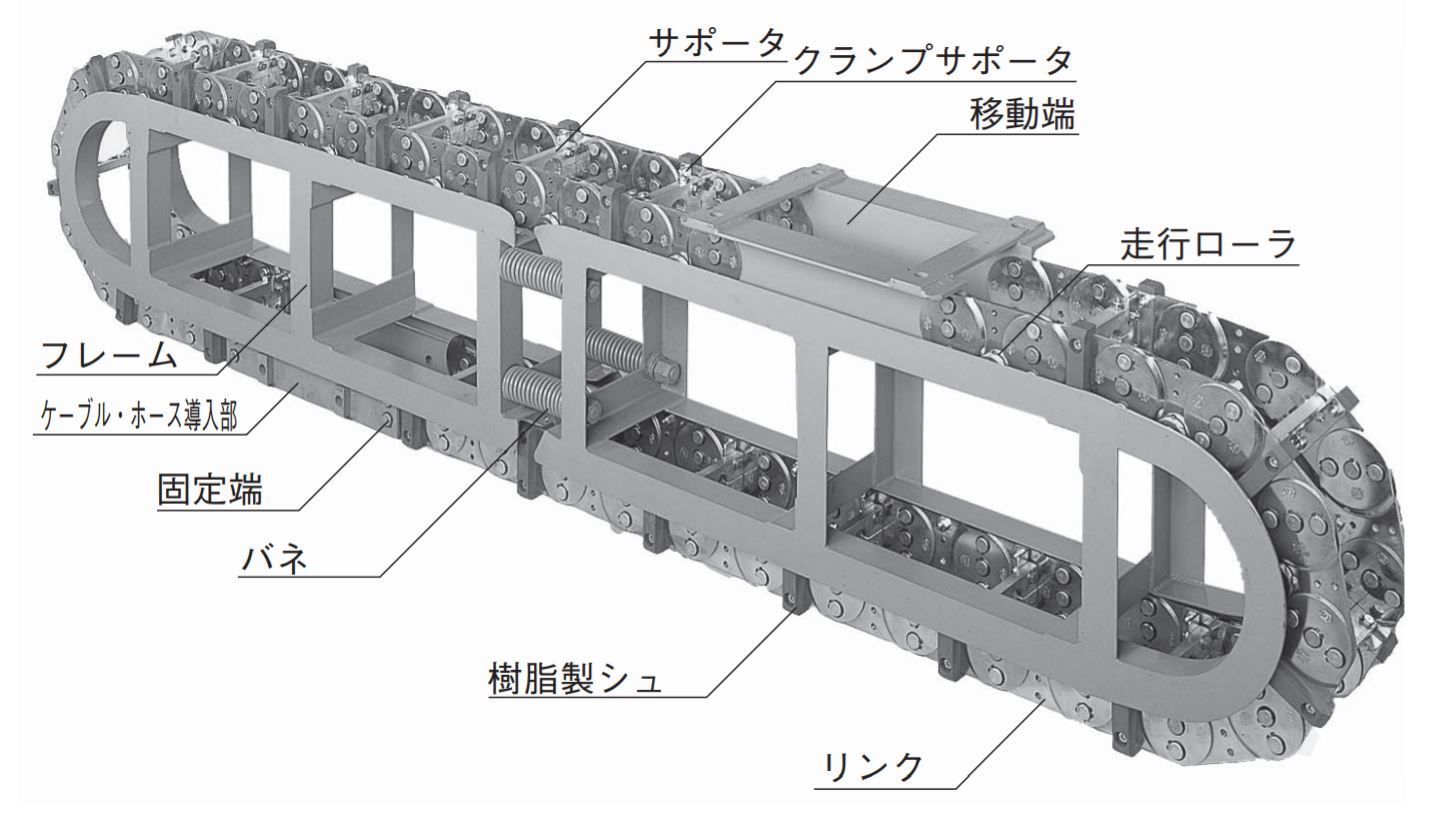

Structure
Features
1. low vibration
The spring-loaded frame applies tension to Cable Carrier (CABLEVEYOR), eliminating slack and reducing vibration even at high speeds.
2. High speed compatibility
It suppresses vibration and can be used at a maximum travel speed m/min of 150 m/min.
3. Low noise
By attaching a resin shoe, the metallic noise that occurs when Cable Carrier (CABLEVEYOR) comes into contact with guide channel is reduced.
Catalogs and Instruction Manuals
Product List
*Click to display detailed information.
| Product name | Inner Height mm |
Inner width mm |
bending radius mm |
|---|---|---|---|
| TKV130 | Order dimensions | Order dimensions | 200, 250, 300, 400 |
