CLEANVEYOR
- Link
Shortening/lengthening
- The lowest dust-generating Cable Carrier (CABLEVEYOR) system among Tsubaki Cable Carrier (CABLEVEYOR)
- Cleanliness ISO class 1 is achieved, making it ideal for use in clean rooms.
(CLEANVEYOR (certificate for the product CLEANVEYOR (CV-2025-0032)) obtained ISO Class 1 in the test based on ISO 14644-1 "Classification of air purity" by the Fraunhofer Institute for Industrial Engineering and Automation (IPA) in Germany) - - Low noise of less than 36dB(A) and a long life of over 10 million flexes (based on in-house testing).
- • We do not use any specific hazardous substances exceeding the thresholds restricted by the European RoHS II Directive.
(Excluding cables and tubes supplied by the customer) - - Consultation with us is required to select and order this product.
Catalogs and Instruction Manuals

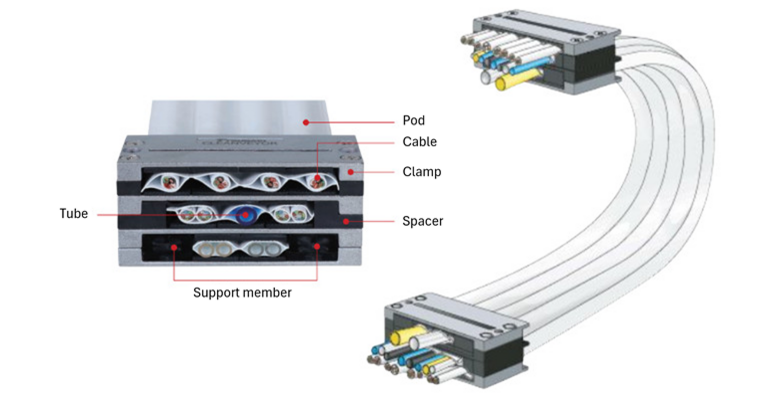

Structure
Features
1. Low dust generation
Cables, tubes, and support members are stored inside a fluororesin pod to prevent Wear debris from scattering.
2. Reduced installation time
We will select and assemble the cable and tube according to your request and usage conditions, and provide it with a clamp attached.
We can also process connectors upon request, allowing for smooth installation on equipment.
3. long life
It has been flexed over 10 million times (based on our test results).
This is an effective measure to prevent the risk of cable breakage due to sliding or interference between cables.
4. High acceleration response
Supports high acceleration of up to 4G (depending on usage conditions).
5. Multi-stage structure support
Can be stacked up to 6 levels.
Cleanroom application example
CLEANVEYOR is ideal for use in clean rooms. Please refer to the Solution Case Study for details.
Specification
For detailed specifications, please refer to the link below.
