Cable Carrier (CABLEVEYOR) Clean Series to prevent cable and tube Wear debris in clean rooms

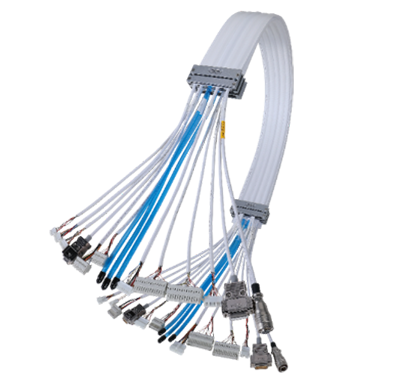

CLEANVEYOR

ISO Class 1

・Cleanliness ISO Class 1
- The lowest dust generation of all Tsubaki cable and hose support guide devices.
-Certified by the Fraunhofer Institute (IPA) in Germany.

long life

- Uses a pod (fluororesin ePTFE) with excellent abrasion resistance.
- Cables and tubes are stored inside the pod to prevent friction between supporting structures.
・Achieved over 10 million flexes! (Based on our test results)

Reduced installation work

- Cables and tubes are assembled according to customer requests and shipped with clamps attached.
- After arrival, it can be smoothly installed on the device.

Back to top of this page

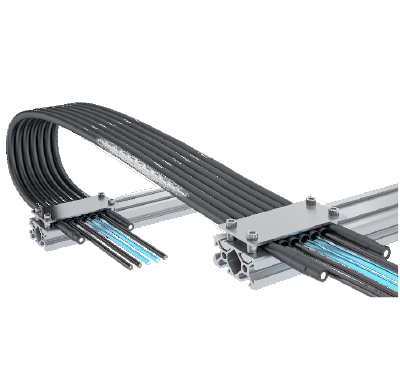

FLATVEYOR

ISO Class 2

・Cleanliness ISO Class 2
· Flat welding of cables and tubes prevents sliding between supports.
-Certified by the Fraunhofer Institute (IPA) in Germany.

Long travel length

· Support members are built into both sides of the flat cable to prevent it from bouncing up, making it possible to support Long travel length.

Back to top of this page

FLATVEYOR ZP specifications

ISO Class 2

・Cleanliness ISO Class 2
- Our proprietary tubes prevent Wear debris from cables, tubes and support members from scattering.
-Certified by the Fraunhofer Institute (IPA) in Germany.

Easy storage and replacement

- Uses Tsubaki 's proprietary open/close tube, allowing for easy storage and replacement of cables and tubes.
- Easy to open and close, making it easy to insert and remove cables and tubes.

Available in 2 colors

- Available in black and white, allowing you to choose the color that best suits your facility and usage environment.

Back to top of this page

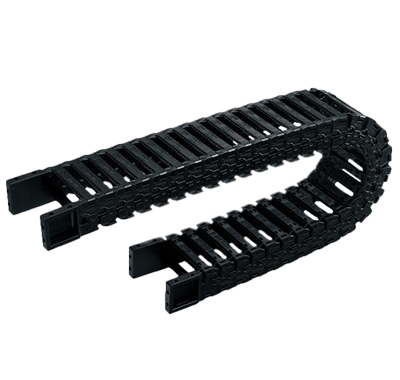

Cable Carrier (CABLEVEYOR) ^TKR type

ISO Class 3 equivalent

- In-house testing results show that it is equivalent to ISO Class 3.
- Uses Tsubaki's unique flexible structure and materials with excellent abrasion resistance.

Low noise

-Low noise is achieved through a unique bending mechanism that utilizes short pitch and resin flexure.

Cuttable

-Due to its link structure, it can be cut and joined just like the conventional Plastic Series.

Long travel length movement

・Up to 5.94m possible with TKR28H52-EX

View Product Info

Such troubles,
Don't you have one?
(Example from the semiconductor industry)

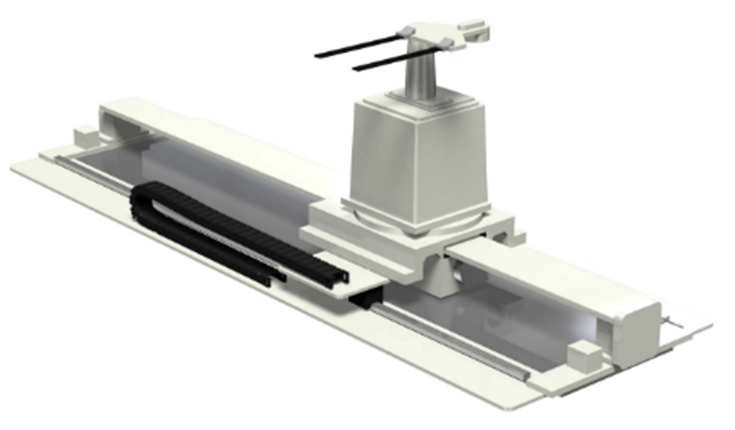

Large diameter wafer transfer robot

As wafer diameters have increased, the strokes of transport robots have also become longer.

Cleaning equipment

We want to reduce dust generation and improve workpiece yield in wafer cleaning equipment, but we cannot find Cable Carrier (CABLEVEYOR) that has Long travel length of over 5m and can also improve cleanliness.

Can be used in clean rooms
Long stroke
Is there no Cable Carrier (CABLEVEYOR)?

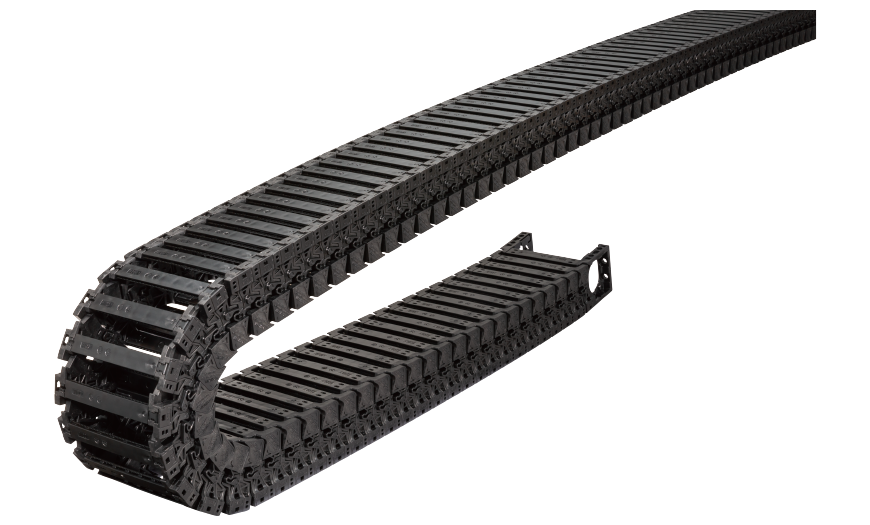

TKR28H52-EX
Long travel length transport in clean rooms

The TKR28H52-EX can be used with a maximum stroke of 5.94m.
What's more, it generates little dust and has a long life.

Even when the robot moves long distances, it remains clean and has a long lifespan with a maximum stroke of 5.94m.

Even with Long travel length transport of the batch-type washer, dust generation was suppressed with a single Cable Carrier (CABLEVEYOR), improving workpiece yield.

Achieves both high rigidity and flexibility through integral molding of rigid and flexible materials.
Furthermore, the unique structure achieves Long travel length and low noise.

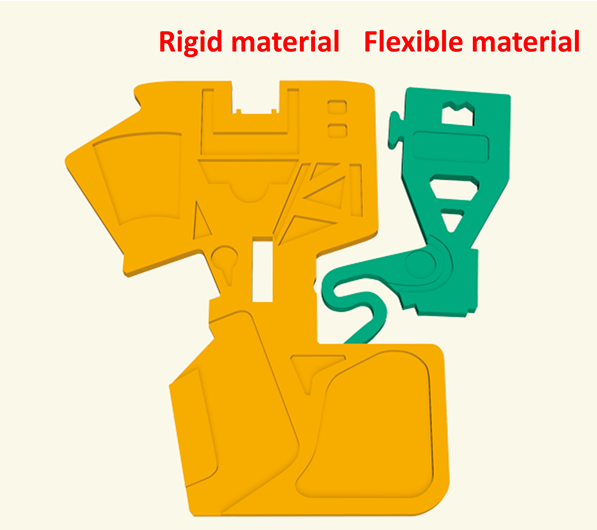

The flexible part is also an integrated structure

The bending section has a flexible deflection structure, which eliminates sliding wear between pins and holes like in link structures and reduces dust generation.

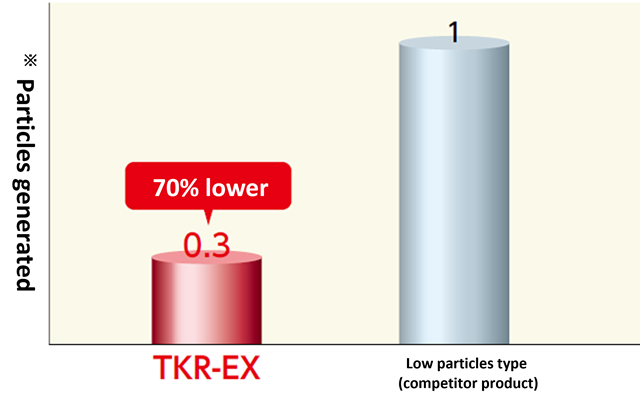

Dust generation characteristics comparison

Our test conditions

・Installation conditions: Standard installation (with floor)
・Moving speed: 120m/min
・Acceleration: 4m/s ²
- No cables or tubes

The amount of dust generated is measured by counting the number of particles of 0.1 μm or larger per cubic foot, and is expressed as a ratio when the number of particles produced by other manufacturers is set at 1.
