CLEANVEYOR ​ Major Specifications

■Ideal for use in clean rooms.
■Special cables and tubes are provided according to the conditions of use.

Structure

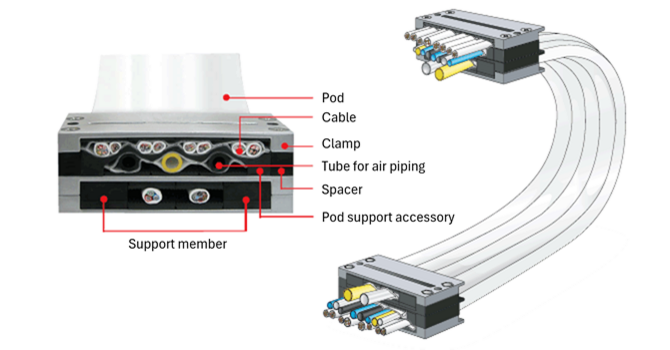

[Click to enlarge]
PDF outline drawing

Please contact us

DXF Drawing data

Please contact us
(Click here for a list of DXF data)

Catalogs and Instruction Manuals

Material

Note) An ultra-high molecular weight polyethylene sheet to be attached to the installation surface of CLEANVEYOR is included with delivery.
Pod Fluorine resin (ePTFE)
Cable conductor Tin-plated annealed copper wire or annealed copper wire
insulator Fluorine resin (FEP, ETFE, PFA)
or polyester thermoplastic elastomer (TPEE)
binder Fluorine resin (ePTFE)
shield Tin-plated annealed copper wire
sheath PVC LF (Lead Free)
Support Members Engineering plastics
clamp aluminum
Spacer Engineering plastics
Pod Support Accessories PVC

Basic specifications and capabilities


[Click to enlarge]
Maximum travel length Note) 1 Support member bending radius R40 ･･･ 1600mm
Support member bending radius R70 ･･･ 2200mm
Support member bending radius R100 ･･･ 2800mm
Support member bending radius R130 ･･･ 2800mm
Maximum travel speed m/min 2m/sec
maximum acceleration 4G
Operating temperature range -10℃～80℃
Minimum and maximum cable/tube outer diameter 3～10mm

Note) 1. When the amount of supporting material is 0.4 kg/m.
2. bending radius of the support member may differ from bending radius when CLEANVEYOR is installed.

Selection

All CLEANVEYOR are products selected according to manufacturer specifications. Please fill out the inquiry sheet with your usage conditions and send it to us.
The specifications will be selected by us.

Pod

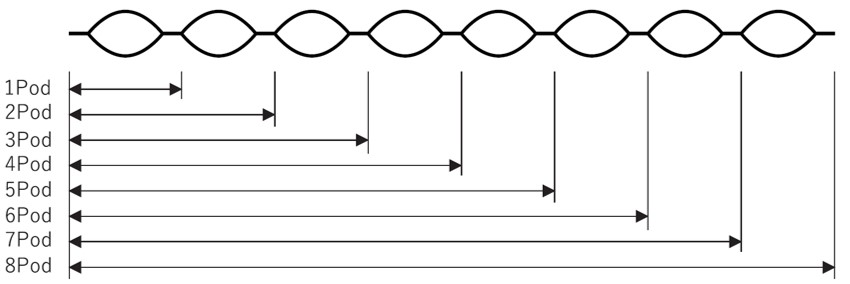

[Click to enlarge]
Standard Specifications Note: These are the dimensions when the pod is flat (closed).
Dimensions are nominal and may vary from actual dimensions.
Number of Pods Pod thickness Note)
mm		 Pod width Note)
mm		 Connection width Note)
mm		 Overall width
mm
1Pod 1 19 2.3 23.6
2Pod 44.9
3Pod 66.2
4Pod 87.5
5Pod 108.8
6Pod 130.1
7Pod 151.4
8Pod 172.7

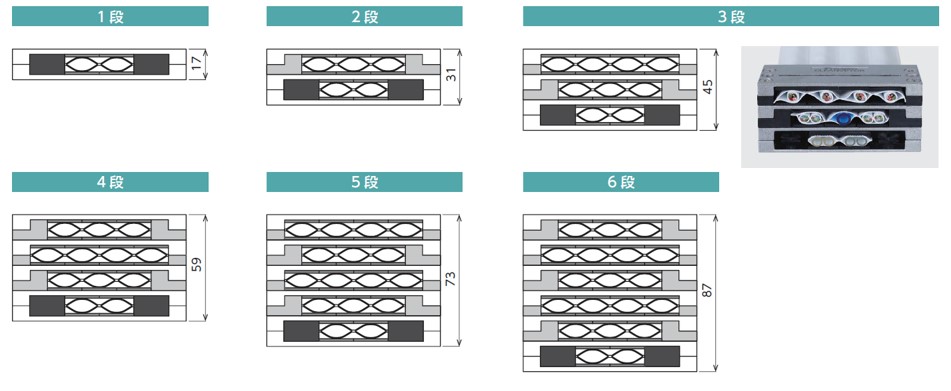

Cable/Tube Outer Diameter Maximum number of pods that can be stored Storage image
Outer diameter ≦ Φ4.0 3
Φ4.0 < Outer diameter ≦ Φ6.3 2
Φ6.3 ＜ Outer diameter ≦ Φ10 1

clamp

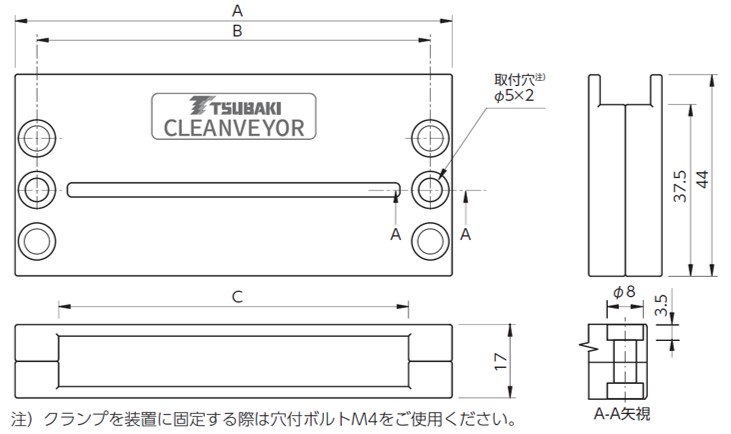

[Click to enlarge]
Clamp Specifications A
mm		 B
mm		 C
mm
For 2Pod 57.2 47.7 38.2
For 3Pod 76.3 66.8 57.3
For 4Pod 95.4 85.9 76.4
For 5Pod 114.5 105.0 95.5
For 6Pod 133.6 124.1 114.6
For 7Pod 152.7 143.2 133.7
For 8Pod 171.8 162.3 152.8

Cable and air piping tubes

300V rated cable

UL STYLE No. 2464
Rated temperature ℃ 80
Rated voltage V 300
Operating temperature range ℃ -10～80
conductor Tin-plated annealed copper stranded wire
insulator Special Elastomer
shield Tin-plated annealed copper wire braid
sheath Oil-resistant PVC (black)
Shield presence/absence Minimum bending radius
No shielding More than six times the cable outer diameter
With shield At least 8 times the cable outer diameter
conductor Core wire diameter mm Logarithm No shielding With shield Allowable current Note)
A (30℃)
SQ
mm2		 AWG
size		 composition No. Outer diameter
mm		 Approximate mass
kg/km		 Approximate mass
kg/m		 Minimum bending radius
Outer diameter x 6 times		 No. Outer diameter
mm		 Approximate mass
kg/km		 Approximate mass
kg/m		 Minimum bending radius
Outer diameter x 8 times
0.1 28 49/0.05 0.74 1 S1 3.3 13 0.013 20 S32 3.8 21 0.021 31 2.4
2 S2 4.4 20 0.020 27 S33 4.8 30 0.030 39 1.8
3 S3 4.7 23 0.023 29 S34 5.1 34 0.034 41 1.6
4 S4 5.0 27 0.027 30 S35 5.4 38 0.038 44 1.4
5 S5 5.3 32 0.032 32 S36 5.7 43 0.043 46 1.3
6 S6 5.6 36 0.036 34 S37 6.0 48 0.048 48 1.2
7 S7 5.6 39 0.039 34 S38 6.0 50 0.050 48 1.2
8 S8 6.0 43 0.043 36 S39 6.4 56 0.056 52 1.1
10 S9 6.6 52 0.052 40 S40 7.0 66 0.066 56 1.0
0.2 25 102/0.05 0.93 1 S10 3.7 17 0.017 23 S41 4.2 25 0.025 34 3.8
2 S11 5.0 27 0.027 30 S42 5.4 37 0.037 44 3.0
3 S12 5.3 34 0.034 32 S43 5.7 45 0.045 46 2.6
4 S13 5.7 39 0.039 35 S44 6.3 51 0.051 51 2.3
5 S14 6.1 47 0.047 37 S45 6.5 60 0.060 52 2.1
6 S15 6.6 54 0.054 40 S46 7.1 69 0.069 57 2.0
7 S16 6.6 58 0.058 40 S47 7.1 73 0.073 57 1.9
8 S17 7.1 65 0.065 43 S48 7.6 80 0.080 61 1.8
10 S18 7.8 80 0.080 47 S49 8.2 97 0.097 66 1.7
0.3 23 108/0.06 1.09 1 S19 4.0 20 0.020 24 S50 4.4 28 0.028 36 5.2
2 S20 5.5 36 0.036 33 S51 5.9 44 0.044 48 4.0
3 S21 5.9 42 0.042 36 S52 6.4 54 0.054 52 3.5
4 S22 6.3 51 0.051 38 S53 6.7 64 0.064 54 3.2
5 S23 6.9 61 0.061 42 S54 7.3 76 0.076 59 2.9
6 S24 7.4 72 0.072 45 S55 7.8 87 0.087 63 2.7
7 S25 7.4 78 0.078 45 S56 7.8 94 0.094 63 2.5
8 S26 8.0 88 0.088 48 S57 8.4 105 0.105 68 2.4
10 S27 8.8 110 0.110 53 S58 9.2 130 0.130 74 2.3
0.5 21 177/0.06 1.36 1 S28 4.6 26 0.026 28 S59 5.0 37 0.037 30 7.7
2 S29 6.4 51 0.051 39 S60 6.8 67 0.067 41 5.8
3 S30 6.9 64 0.064 42 S61 7.3 82 0.082 44 4.9
4 S31 7.5 75 0.075 45 S62 7.9 94 0.094 48 4.7

Note: The allowable current is a reference value, not a guaranteed value.

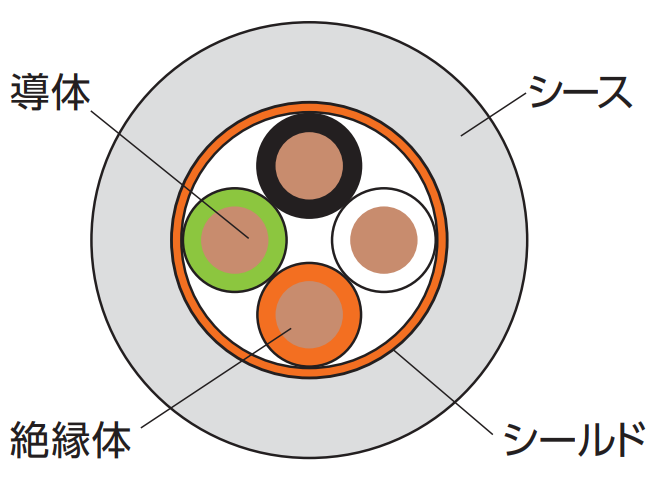

Cross section (example)

No shielding

No shielding

With shield

With shield

Insulator Identification

Pair number Insulation Color
Type 1 core wire Type 2 core wire
1 blue white
2 yellow Purple
3 green black
4 red ash
5 Purple orange
Pair number Insulation Color
Type 1 core wire Type 2 core wire
6 blue tea
7 yellow black
8 green ash
9 red orange
10 Purple white

600V rated cable

UL STYLE No. 2586
Rated temperature ℃ 105
Rated voltage V 600
Operating temperature range ℃ -10～105
conductor Tin-plated annealed copper stranded wire
insulator Special Elastomer
shield Tin-plated annealed copper wire braid
sheath Oil-resistant PVC (black)
Shield presence/absence Minimum bending radius
No shielding More than six times the cable outer diameter
With shield At least 8 times the cable outer diameter
conductor Core wire diameter mm core number No shielding With shield Allowable current Note)
A (30℃)
SQ
mm2		 AWG
size		 composition No. Outer diameter
mm		 Approximate mass
kg/km		 Approximate mass
kg/m		 Minimum bending radius
Outer diameter x 6 times		 No. Outer diameter
mm		 Approximate mass
kg/km		 Approximate mass
kg/m		 Minimum bending radius
Outer diameter x 8 times
0.5 21 100/0.08 1.52 2 P1 5.3 34 0.034 32 P35 5.7 45 0.045 46 9.2
3 P2 5.5 41 0.041 33 P36 5.9 53 0.053 48 8.0
4 P3 5.9 49 0.049 36 P37 6.3 61 0.061 51 7.2
5 P4 6.3 58 0.058 38 P38 6.7 72 0.072 54 6.7
6 P5 6.8 66 0.066 41 P39 7.2 83 0.083 58 6.2
8 P6 8.0 90 0.090 48 P40 8.4 110 0.110 68 5.6
10 P7 8.9 110 0.110 54 - 5.1
0.75 19 150/0.08 1.73 2 P8 5.7 41 0.041 35 P41 6.1 53 0.053 49 12.0
3 P9 5.9 51 0.051 36 P42 6.3 62 0.062 51 10.5
4 P10 6.4 63 0.063 39 P43 6.8 75 0.075 55 9.4
6 P11 7.4 87 0.087 45 P44 7.8 105 0.105 63 8.1
8 P12 8.8 120 0.120 53 P45 9.3 145 0.145 75 7.3
10 P13 9.7 145 0.145 59 - 6.7
1.25 17 7/36/0.08 2.2 2 P14 6.6 58 0.058 40 P46 7.0 72 0.072 56 17.3
3 P15 7.0 75 0.075 42 P47 7.4 89 0.089 60 15.1
4 P16 7.5 92 0.092 45 P48 7.9 110 0.110 64 13.5
6 P17 8.8 130 0.130 53 P49 9.3 155 0.155 75 11.7
2 15 7/57/0.08 2.6 2 P20 7.4 79 0.079 45 P51 7.8 94 0.094 63 23.6
3 P21 7.8 105 0.105 47 P52 8.2 120 0.120 66 20.6
4 P22 8.5 130 0.130 51 P53 9.0 155 0.155 72 18.4
6 P23 10.0 185 0.185 60 - 15.9
3.5 12 7/64/0.1 3.4 2 P26 9.3 125 0.125 56 P56 9.8 155 0.155 79 35.5
3 P27 9.8 165 0.165 59 - 30.9

Note: The allowable current is a reference value, not a guaranteed value.

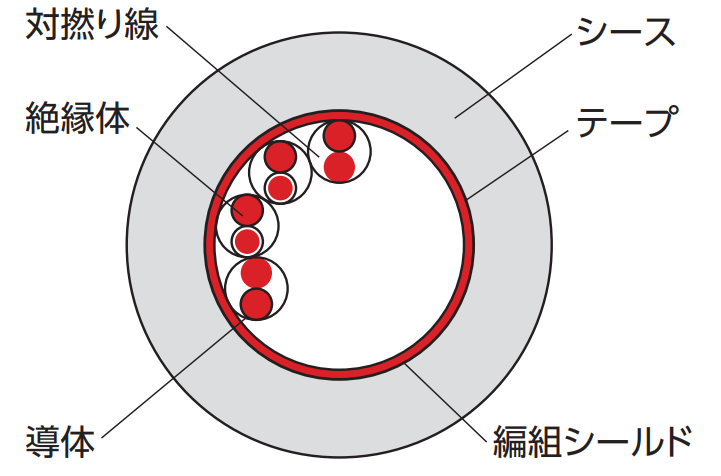

Cross section (example)

No shielding

No shielding

With shield

With shield

Insulator Identification

Core number Insulation Color
1 black
2 white
3 red
4 green
5 yellow
6 tea
7 blue
8 ash
9 orange
10 Purple

Air piping tube

No. Specification composition
Outer diameter mm Inner diameter mm Maximum operating pressure MPa Material color
T1 4.0 2.5 0.8 (20℃) Polyurethane Black, yellow, blue, green, transparent, white
T2 6.0 4.0 0.8 (20℃) Polyurethane Black, yellow, blue, green, transparent, white
T3 8.0 5.0 0.8 (20℃) Polyurethane Black, yellow, blue, green, transparent, white
T4 10.0 6.5 0.8 (20℃) Polyurethane Black, yellow, blue, green, transparent, white

Example of each layer configuration


[Click to enlarge]

Installation procedure and method

Download Instruction Manuals PDF


Inquiry Sheet

Inquiry sheet download
