Plastic Series Open type TKR type

Link
Shortening/lengthening

Thanks to Tsubaki's unique bending and flexing mechanism, Cable Carrier (CABLEVEYOR) is versatile and produces minimal dust.
- Achieves ISO Class 1 cleanliness, contributing to improved yield even in general-purpose applications.
(In tests based on ISO 14644-1 "Classification of Air Cleanliness" by the Fraunhofer Institute for Industrial Engineering and Automation (IPA) in Germany, the TKR type Cable Carrier (CABLEVEYOR) (certificate for the product TKR20H28) achieved ISO Class 1.)
- Low noise and dust generation contribute to reducing environmental impact.
- Special specifications such as dry environment specifications (suitable for low humidity environments) are available.
• We do not use any specific hazardous substances that exceed the threshold limits set by the European RoHS II Directive.
(Excluding cables and tubes to be stored)
・Additional Long travel length, TKR28H52-EX, available with a maximum stroke of 5.94m

Features

Tsubaki's unique bending mechanism achieves low dust generation, low noise, and low vibration

1. Low dust generation

There is no sliding wear between the pins and pin holes, and the use of highly wear-resistant sliding materials achieves low dust generation.

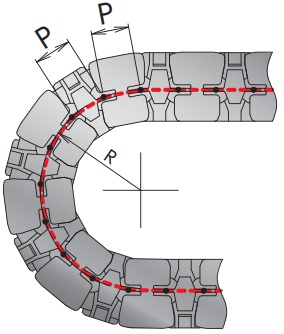

TKR20H28

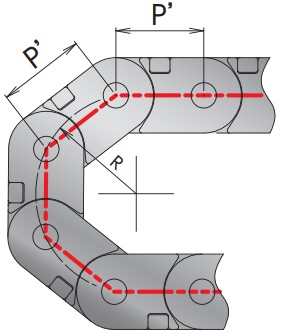

TKP35H32

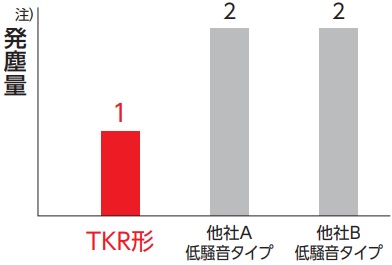

■ Dust generation characteristics comparison

Our test conditions

・Installation conditions: Standard installation (with floor)

・Travel speed: 120m/min ※Support: None

Note: The amount of dust emitted indicates the number of particles of 0.1 μm or larger present in one cubic foot.

2. Low noise

A short pitch and a bending mechanism that utilizes the flexibility of the resin achieve low noise.

■Bent state

TKR Series

TKP Series

3. low vibration

The smooth bending, which is close to a circular arc, allows for low vibration when running.

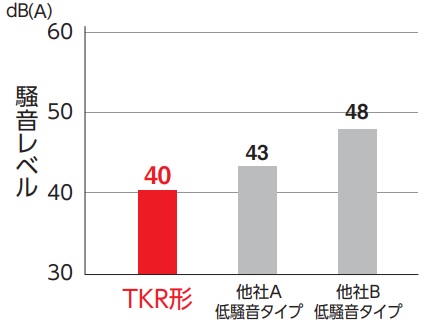

■Noise comparison

Our test conditions

・Installation conditions: Standard installation (with floor)

・Noise measurement distance: 500mm

・Moving speed: 100m/min

4. Supports multi-level partitions

The storage space can be divided into multiple levels, allowing for greater flexibility in layout.

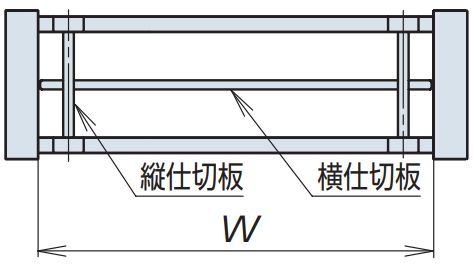

DSA type

DSB type

*Two or more vertical dividers are required.

Information

About the installation of support rollers

The TKR type is equipped with support rollers, allowing it to accommodate even Long travel length.

Please install the support rollers according to the information in the link below, and use them within Allowable load graph when the support rollers are installed.

About the installation of support rollers

Special specifications

Special specifications such as dry environment specifications (suitable for low humidity environments) can be accommodated.

Catalogs and Instruction Manuals

Product List

*Click to display detailed information. Open all Close all

Cable/hose maximum outer diameter 18mm, 20mm (TKR15H22 and later)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
18	22	20	40	15	Outer side of arm Opening and closing type	TKR15H22-30W20R40
50	TKR15H22-30W20R50
75	TKR15H22-30W20R75

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
20	22	40	40	15	Outer side of arm Opening and closing type	TKR15H22-30W40R40
50	TKR15H22-30W40R50
75	TKR15H22-30W40R75

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
20	22	60	40	15	Outer side of arm Opening and closing type	TKR15H22-30W60R40
50	TKR15H22-30W60R50
75	TKR15H22-30W60R75

Cable/hose maximum outer diameter 25mm (TKR20H28 and above)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	30	55	20	Inner and outer circumference of arm Opening and closing type	TKR20H28W30R55
75	TKR20H28W30R75
95	TKR20H28W30R95
150	TKR20H28W30R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	40	55	20	Inner and outer circumference of arm Opening and closing type	TKR20H28W40R55
75	TKR20H28W40R75
95	TKR20H28W40R95
150	TKR20H28W40R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	50	55	20	Inner and outer circumference of arm Opening and closing type	TKR20H28W50R55
75	TKR20H28W50R75
95	TKR20H28W50R95
150	TKR20H28W50R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	60	55	20	Inner and outer circumference of arm Opening and closing type	TKR20H28W60R55
75	TKR20H28W60R75
95	TKR20H28W60R95
150	TKR20H28W60R150

Cable/hose maximum outer diameter 25mm (TKR37H28~)

Open all Close all

Inner width 40mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	40	55	37	Inner and outer circumference of arm Opening and closing type	TKR37H28W40R55
75	TKR37H28W40R75
100	TKR37H28W40R100

Inner width 50mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	50	55	37	Inner and outer circumference of arm Opening and closing type	TKR37H28W50R55
75	TKR37H28W50R75
100	TKR37H28W50R100

Inner width 60mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	60	55	37	Inner and outer circumference of arm Opening and closing type	TKR37H28W60R55
75	TKR37H28W60R75
100	TKR37H28W60R100

Inner width 70mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	70	55	37	Inner and outer circumference of arm Opening and closing type	TKR37H28W70R55
75	TKR37H28W70R75
100	TKR37H28W70R100

Inner width 80mm

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
25	28	80	55	37	Inner and outer circumference of arm Opening and closing type	TKR37H28W80R55
75	TKR37H28W80R75
100	TKR37H28W80R100

Cable/hose maximum outer diameter 36mm (TKR26H40 and above)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	50	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W50R75
100	TKR26H40W50R100
125	TKR26H40W50R125
150	TKR26H40W50R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	62	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W62R75
100	TKR26H40W62R100
125	TKR26H40W62R125
150	TKR26H40W62R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	75	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W75R75
100	TKR26H40W75R100
125	TKR26H40W75R125
150	TKR26H40W75R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	87	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W87R75
100	TKR26H40W87R100
125	TKR26H40W87R125
150	TKR26H40W87R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	100	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W100R75
100	TKR26H40W100R100
125	TKR26H40W100R125
150	TKR26H40W100R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	125	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W125R75
100	TKR26H40W125R100
125	TKR26H40W125R125
150	TKR26H40W125R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	150	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W150R75
100	TKR26H40W150R100
125	TKR26H40W150R125
150	TKR26H40W150R150

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
36	40	200	75	26	Inner and outer circumference of arm Opening and closing type	TKR26H40W200R75
100	TKR26H40W200R100
125	TKR26H40W200R125
150	TKR26H40W200R150

Cable/hose maximum outer diameter: 45mm, 47mm (TKR28H52 and later)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
45	52	50	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W50R75
100	TKR28H52W50R100
150	TKR28H52W50R150
200	TKR28H52W50R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	62	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W62R75
100	TKR28H52W62R100
150	TKR28H52W62R150
200	TKR28H52W62R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	75	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W75R75
100	TKR28H52W75R100
150	TKR28H52W75R150
200	TKR28H52W75R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	87	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W87R75
100	TKR28H52W87R100
150	TKR28H52W87R150
200	TKR28H52W87R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	100	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W100R75
100	TKR28H52W100R100
150	TKR28H52W100R150
200	TKR28H52W100R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	125	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W125R75
100	TKR28H52W125R100
150	TKR28H52W125R150
200	TKR28H52W125R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	150	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W150R75
100	TKR28H52W150R100
150	TKR28H52W150R150
200	TKR28H52W150R200

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	200	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W200R75
100	TKR28H52W200R100
150	TKR28H52W200R150
200	TKR28H52W200R200

Cable/hose maximum outer diameter: 45mm, 47mm (TKR28H52-EX)

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
45	52	50	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W50R75EX
			100			TKR28H52W50R100EX
			150			TKR28H52W50R150EX
			200			TKR28H52W50R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	62	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W62R75EX
			100			TKR28H52W62R100EX
			150			TKR28H52W62R150EX
			200			TKR28H52W62R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	75	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W75R75EX
			100			TKR28H52W75R100EX
			150			TKR28H52W75R150EX
			200			TKR28H52W75R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	87	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W87R75EX
			100			TKR28H52W87R100EX
			150			TKR28H52W87R150EX
			200			TKR28H52W87R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	100	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W100R75EX
			100			TKR28H52W100R100EX
			150			TKR28H52W100R150EX
			200			TKR28H52W100R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	125	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W125R75EX
			100			TKR28H52W125R100EX
			150			TKR28H52W125R150EX
			200			TKR28H52W125R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	150	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W150R75EX
			100			TKR28H52W150R100EX
			150			TKR28H52W150R150EX
			200			TKR28H52W150R200EX

Cables ・Hose Maximum Outer Diameter mm	Inner Height mm	Inner width mm	Bending radius mm	Pitch mm	Stay openable structure	Product name
47	52	200	75	28	Inner and outer circumference of arm Opening and closing type	TKR28H52W200R75EX
			100			TKR28H52W200R100EX
			150			TKR28H52W200R150EX
			200			TKR28H52W200R200EX
