FLATVEYOR
- Link
Shortening/lengthening
- A unique self-standing flat cable system that makes full use of Cable Carrier (CABLEVEYOR) technology.
- - Achieves ISO Class 2 cleanliness, contributing to improved yield.
(Based on test results from the Fraunhofer Institute for Production Engineering and Automation (IPA) in Germany) - - It can accommodate Long travel length that cannot be achieved with flat cables.
- - RoHS compliant (excluding customer-supplied cables and tubes)
- ・Consultation with us is required to select and order this product.
Catalogs and Instruction Manuals
FLATVEYOR solves your problems!
Is it possible to use just a flat cable without using Cable Carrier (CABLEVEYOR)?
I want to make travel length longer and move faster!
I want to solve the problems of dust and noise!
Features
1. Long travel length compatible
Support members, which are link structure parts, are built into both sides of the flat cable, allowing it to be used at Long travel length.

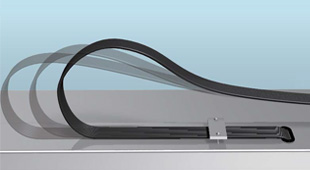

Flat cable (other manufacturer)

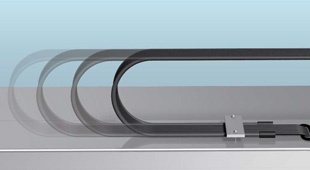

Tsubaki FLATVEYOR
In addition, the support members reduce bulging at the bent parts of the cable and tube, suppressing bouncing and ensuring smooth movement.
Flat cable (other manufacturer)
Tsubaki FLATVEYOR
2. Low dust generation
The support member is built into the tube. The cable and tube are welded flat, resulting in low dust generation.
3. Reduced installation time
We will select and incorporate dedicated cables and tubes according to your requests and usage conditions, and provide them with clamps attached.
We can also process connectors upon request, allowing for smooth installation on equipment.
4. Our recommended cables and tubes can be selected
We offer a lineup of flexible and bend-resistant Flexible cable.
5. Space-saving and lightweight
Its appearance is similar to that of a flat cable, allowing it to be installed in limited spaces.
The compact structure, with support members on both sides of the flat cable, contributes to weight reduction.
6. Low noise
The sound-insulating effect of the support member tubes and the unique short-pitch structure reduce noise during operation.
(30dB(A) or less, based on our test results)
Watch a video of FLATVEYOR in action

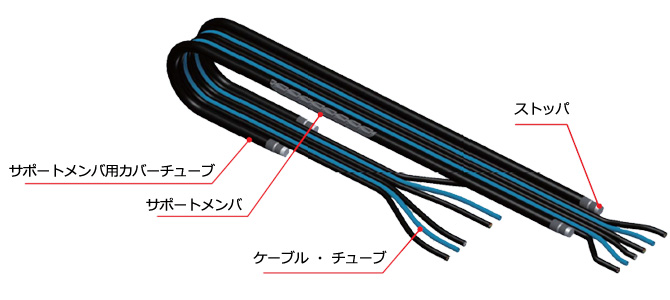

Structure
Example of a cross section FLATVEYOR
Specification
For detailed specifications, please refer to the link below.
