Zip Chain Actuator​

Product Photos
  • Unprecedented high-speed, high-frequency, low-profile, long-life actuator
  • Zip Chain Actuator is an actuator that performs linear motion by interlocking two chains like a zipper.

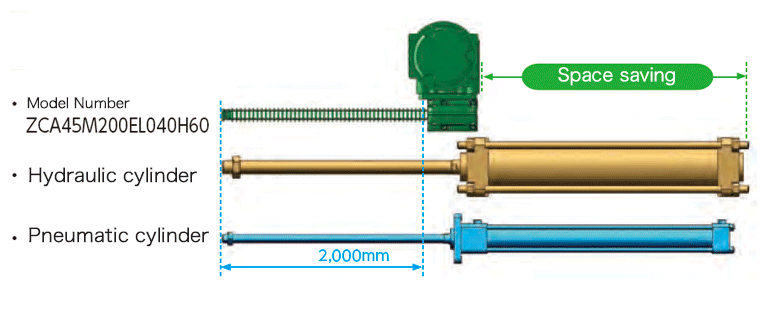

  • The compact body design achieves overwhelming space savings compared to conventional linear actuator.
  • It is compatible with high-speed and high-frequency operation and is capable of highly accurate multi-point stopping.
  • Compared to hydraulic and pneumatic cylinders, it can significantly reduce the amount of power used, contributing to energy conservation.
  • We can also handle medium and large sizes with a maximum thrust of 38.2 kN and a maximum stroke of 5000 mm.
  • For more information, click here
  • We also have a lineup of models with an integrated drive unit.
  • With Hypoid Motor With TERVO reducer for servo motor

Banner Image

Banner Image

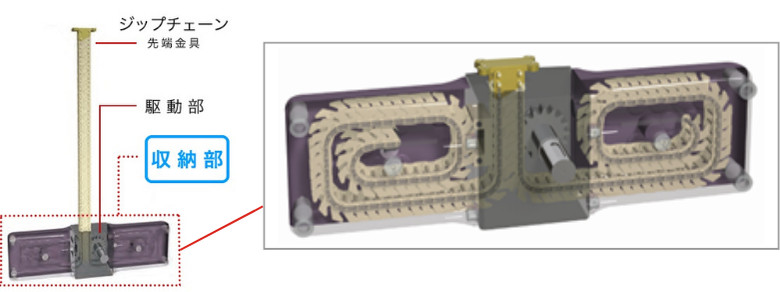

Structure

End fitting: Integrated with Zip Chain, it can be installed either by pushing up or hanging.

Drive unit: Our unique sprocket and Zip Chain together to transmit power efficiently.

Storage section: The chain sliding section is smooth and can be stored in a compact chain case.

Features

compact

The chain case is low, about 1/10 the height of the stroke, and by integrating it with the drive unit, it becomes even more compact, allowing it to be installed in a small space.

ストロークに対し最大90%低床化

High speed

A maximum of 1000mm/sec is achieved during high-speed operation.
It surpasses the speed of screw-type and oil/pneumatic cylinders.

最大速度1,000mm/sec

Multi-point stop

The use of a servo motor enables highly accurate multi-point stopping and continuous operation.

負荷時間率100%ED

long life

It has excellent wear resistance, does not stretch the chain, and has an expected travel distance of 4,000 km.

期待走行距離4,000km

Free installation direction

It can be freely installed in the direction that suits your needs, such as lifting, horizontally, or hanging.

据付方向制限なし

Cleanroom examples

・Click here for examples of use in clean environments.

View Case Study

Catalogs and Instruction Manuals

Model number display example

ZCA 35 K 050 E L 040 H 40 E4HC - J1F
｜
series		 ｜
size
25
35
45		 ｜
｜
｜
｜
｜
｜
 ｜
｜
｜
｜
 ｜
Installation		 ｜
Shaft Arrangement		 ｜
｜
 ｜
Hypoid motor		 ｜
Reduction ratio		 ｜
Mount Code		 ｜
option
｜
Motor capacity 009: 90W 040: 0.4kW
｜
Stroke 050: 500mm 100: 1000mm
｜
Drive unit
N: No drive unit (please prepare your preferred drive unit separately. Click here for reducers and small gear motors)
M: With Hypoid Motor K: With TERVO reducer for servo motor

Installation

E D
Push-up installation Horizontal installation Hanging installation

Shaft arrangement

Drive unit L: Input shaft standard R: Input shaft facing in the opposite direction T: Double input shaft
N
M －
K －

option

bellows Grease plate
J1: For pushing up, for hanging J2: Horizontal F

Optional accessories

For details on separately sold options, please see the details page for each model number.

Mounting Base Bottom mounting base cap

■ Tsubaki model No. navigation

Selectable model number:

View product details

*To generate the correct model number, select items in order from left to right.

series size Drive unit Stroke Installation Shaft arrangement Motor Capacity Reduction ratio Mount Code
ZCA









Motor mount
dimension table

Product model number list

No drive unit

*Click on the model number to display detailed information. (Please prepare your preferred drive unit separately. Click here for reducers and small gear motors.)

size stroke
mm		 Installation method: E Installation method: D
Shaft arrangement Shaft arrangement
L R T L R T
ZCA25 300 ZCA25N030EL ZCA25N030ER ZCA25N030ET ZCA25N030DL ZCA25N030DR ZCA25N030DT
500 ZCA25N050EL ZCA25N050ER ZCA25N050ET ZCA25N050DL ZCA25N050DR ZCA25N050DT
ZCA35 500 ZCA35N050EL ZCA35N050ER ZCA35N050ET ZCA35N050DL ZCA35N050DR ZCA35N050DT
750 ZCA35N075EL ZCA35N075ER ZCA35N075ET ZCA35N075DL ZCA35N075DR ZCA35N075DT
1000 ZCA35N100EL ZCA35N100ER ZCA35N100ET ZCA35N100DL ZCA35N100DR ZCA35N100DT
ZCA45 1000 ZCA45N100EL ZCA45N100ER ZCA45N100ET ZCA45N100DL ZCA45N100DR ZCA45N100DT
1500 ZCA45N150EL ZCA45N150ER ZCA45N150ET ZCA45N150DL ZCA45N150DR ZCA45N150DT
2000 ZCA45N200EL ZCA45N200ER ZCA45N200ET ZCA45N200DL ZCA45N200DR ZCA45N200DT
Back to top of this page

With Hypoid Motor

*Please use the model number navigation to display detailed information. What is Hypoid Motor?

size motor
capacity		 Reduction ratio stroke
mm		 Installation method: E Installation method: D
Shaft arrangement Shaft arrangement
L T L T
ZCA25 60W 40, 50,
60		 300 ZCA25M030EL006H ZCA25M030ET006H ZCA25M030DL006H ZCA25M030DT006H
500 ZCA25M050EL006H ZCA25M050ET006H ZCA25M050DL006H ZCA25M050DT006H
90W 10, 15, 20,
25, 30		 300 ZCA25M030EL009H ZCA25M030ET009H ZCA25M030DL009H ZCA25M030DT009H
500 ZCA25M050EL009H ZCA25M050ET009H ZCA25M050DL009H ZCA25M050DT009H
ZCA35 0.2kW 40, 50,
60		 500 ZCA35M050EL020H ZCA35M050ET020H ZCA35M050DL020H ZCA35M050DT020H
750 ZCA35M075EL020H ZCA35M075ET020H ZCA35M075DL020H ZCA35M075DT020H
1000 ZCA35M100EL020H ZCA35M100ET020H ZCA35M100DL020H ZCA35M100DT020H
0.4kW 10, 12.5,
15, 20,
25, 30		 500 ZCA35M050EL040H ZCA35M050ET040H ZCA35M050DL040H ZCA35M050DT040H
750 ZCA35M075EL040H ZCA35M075ET040H ZCA35M075DL040H ZCA35M075DT040H
1000 ZCA35M100EL040H ZCA35M100ET040H ZCA35M100DL040H ZCA35M100DT040H
ZCA45 0.4kW 60,
80,
100		 1000 ZCA45M100EL040H ZCA45M100ET040H ZCA45M100DL040H ZCA45M100DT040H
1500 ZCA45M150EL040H ZCA45M150ET040H ZCA45M150DL040H ZCA45M150DT040H
2000 ZCA45M200EL040H ZCA45M200ET040H ZCA45M200DL040H ZCA45M200DT040H
0.75kW 10, 12.5,
15, 20, 25,
30, 40, 50		 1000 ZCA45M100EL075H ZCA45M100ET075H ZCA45M100DL075H ZCA45M100DT075H
1500 ZCA45M150EL075H ZCA45M150ET075H ZCA45M150DL075H ZCA45M150DT075H
2000 ZCA45M200EL075H ZCA45M200ET075H ZCA45M200DL075H ZCA45M200DT075H
Back to top of this page

Servo motor reducer TERVO included

*Please use the model number navigation to display detailed information. What is the TERVO reducer for servo motors?

size motor
capacity		 Reduction ratio stroke
mm		 Installation method: E Installation method: D
Shaft arrangement Shaft arrangement
L T L T
ZCA25 200W 5, 10,
15, 20		 300 ZCA25K030EL020H ZCA25K030ET020H ZCA25K030DL020H ZCA25K030DT020H
500 ZCA25K050EL020H ZCA25K050ET020H ZCA25K050DL020H ZCA25K050DT020H
ZCA35 400W 40 500 ZCA35K050EL040H ZCA35K050ET040H ZCA35K050DL040H ZCA35K050DT040H
750 ZCA35K075EL040H ZCA35K075ET040H ZCA35K075DL040H ZCA35K075DT040H
1000 ZCA35K100EL040H ZCA35K100ET040H ZCA35K100DL040H ZCA35K100DT040H
750W 5, 10,
15, 20		 500 ZCA35K050EL075H ZCA35K050ET075H ZCA35K050DL075H ZCA35K050DT075H
750 ZCA35K075EL075H ZCA35K075ET075H ZCA35K075DL075H ZCA35K075DT075H
1000 ZCA35K100EL075H ZCA35K100ET075H ZCA35K100DL075H ZCA35K100DT075H
ZCA45 400W 120 1000 ZCA45K100EL040H ZCA45K100ET040H ZCA45K100DL040H ZCA45K100DT040H
1500 ZCA45K150EL040H ZCA45K150ET040H ZCA45K150DL040H ZCA45K150DT040H
2000 ZCA45K200EL040H ZCA45K200ET040H ZCA45K200DL040H ZCA45K200DT040H
750W 20, 25, 30,
40, 50, 60,
80		 1000 ZCA45K100EL075H ZCA45K100ET075H ZCA45K100DL075H ZCA45K100DT075H
1500 ZCA45K150EL075H ZCA45K150ET075H ZCA45K150DL075H ZCA45K150DT075H
2000 ZCA45K200EL075H ZCA45K200ET075H ZCA45K200DL075H ZCA45K200DT075H
Back to top of this page
×
(You can move it by dragging it)

Motor mount dimensions table

Unit: mm

size Mount Code
By motor manufacturer
Compatibility list		 Motor mount dimensions
AD MA MB MC MD ML(min) MS MT
ZCA25K-020(200W) E4HC 50 □60 φ50G7 M5 depth 12 (PCD70) 5 30(25) φ14 M4
ZCA35K-040(400W)
ZCA45K-040(400W)		 E4HC 54 □60 φ50G7 M5 depth 12 (PCD70) 5 30(25) φ14 M4
G2HC □80 φ70G7 M6 depth 10 (PCD90)
ZCA35K-075(750W)
ZCA45K-075(750W)		 G5KC 63 □80 φ70G7 M6 depth 15 (PCD90) 5 40(30) φ16 M5
G5LC φ19
K2LC □130 φ110G7 M8 depth 13 (PCD145) φ19
