Long-awaited expansion of scope

Zip Chain Actuator Actuator
Medium and large sizes

"High thrust x Long travel length" dramatically changes vertical conveyance

Realizing high functionality and space saving in vertical transport

For those who are struggling with insufficient thrust and stroke or needing to improve takt time, starting in autumn 2022, we will be offering Zip Chain Actuator in medium and large sizes, which offer significantly expanded thrust and stroke ranges.

The range of thrust has been expanded to 38.2 kN and stroke to 5000 mm. Furthermore, high-speed, high-frequency operation with a maximum speed of 1000 mm/s and Percentage duty cycle of 100% ED is possible.

Zip Chain Actuator is becoming more and more powerful, enabling more sophisticated equipment functionality.

Unwavering space-saving performance even with expanded application areas

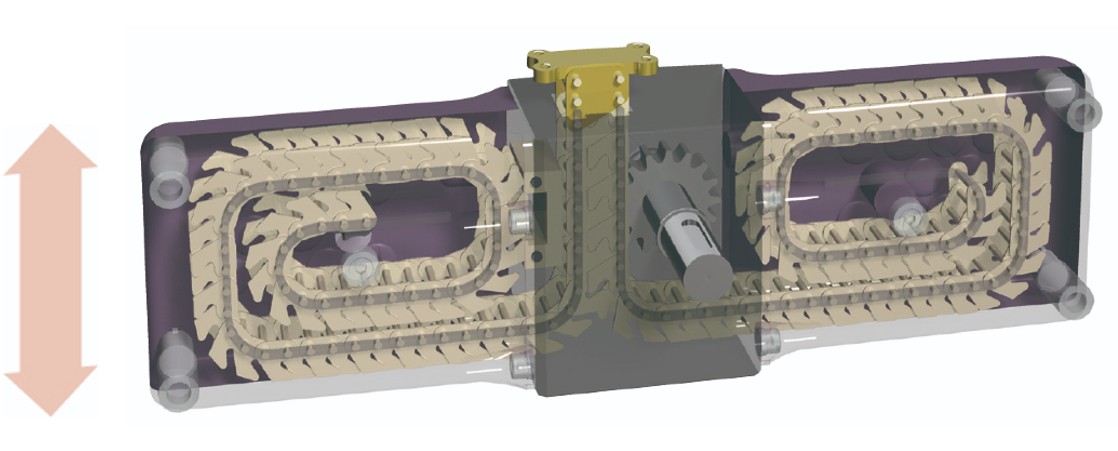

The chain is stored compactly, and the height of the storage case is approximately 85% lower than the stroke.

Low profile
Approximately 85 %

High speed operation: up to 1000mm/s

Percentage duty cycle 100%ED

Expected lifespan: 1 million round trips or more

High controllability and multi-point stopping are possible

Easy maintenance and long life

Energy saving

Medium and large size specifications

Medium size

For medium sizes, we offer design stock models that you can choose from two sizes based on thrust and stroke to suit your application.

Example of model number display for medium-sized design stock models

*Horizontal scrolling is possible

ZUE	063	1	N	20	E	L	-TK
｜ series	｜ size 063 083	｜｜｜｜｜｜｜｜｜｜｜｜	｜｜｜｜｜｜｜｜｜｜	｜｜｜｜｜｜	｜｜｜｜	｜｜	｜ TK: Special shape
						｜ Shaft Arrangement L: left R: right
					｜ Installation position E: Push-up
				｜ stroke 12: 1200mm 16: 1600mm 20: 2000mm 25: 2500mm (*ZUE083 only)
			｜ Drive unit N: No drive unit
		｜ Axis type 1: Single drive 2: Double drive

Shaft Type

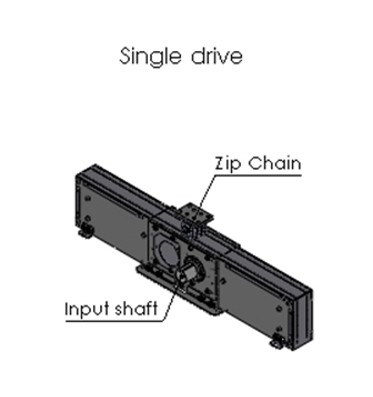

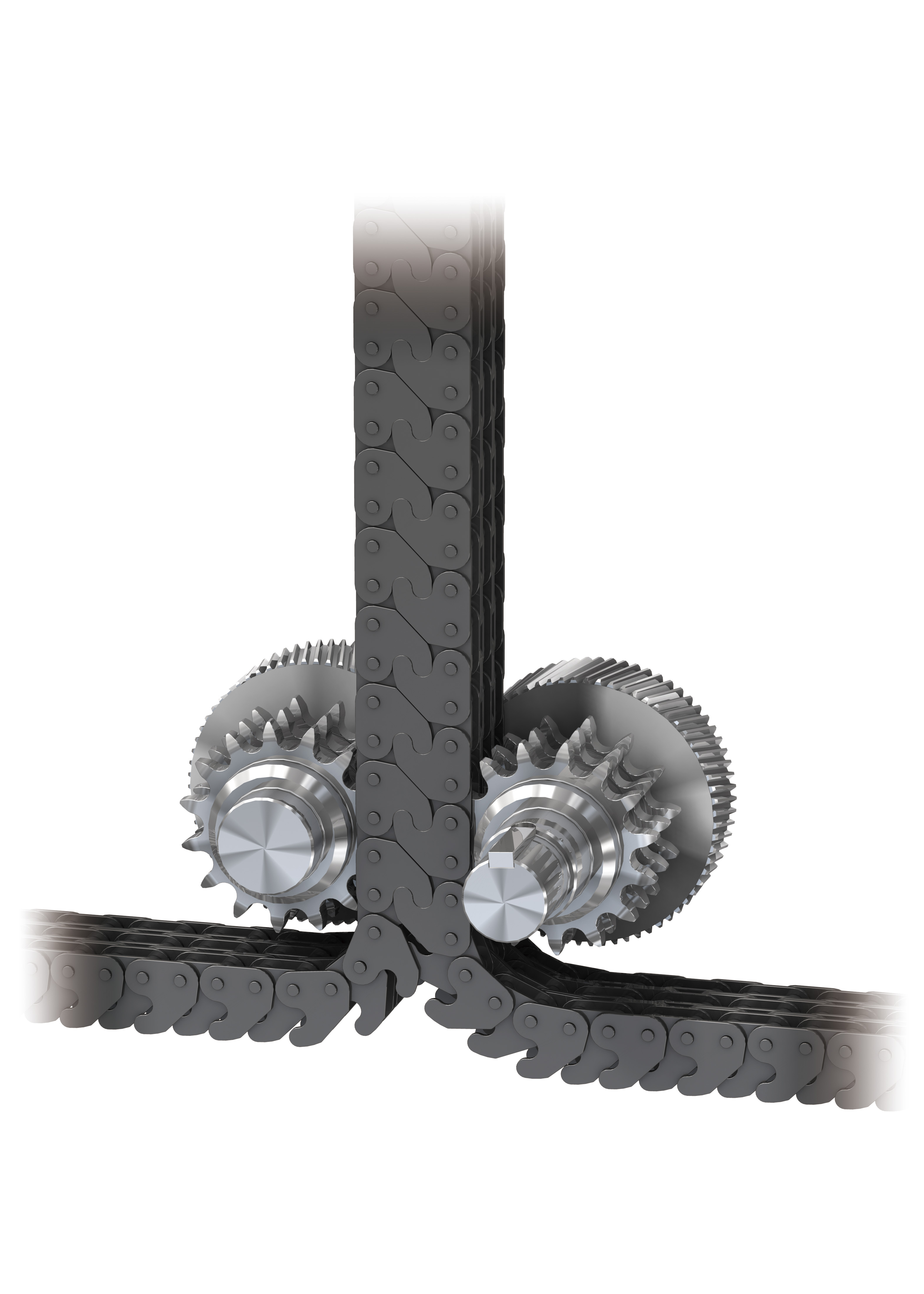

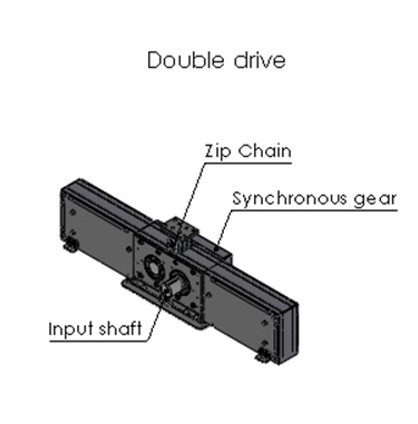

Single Drive	Double Drive

Shaft arrangement

L	R

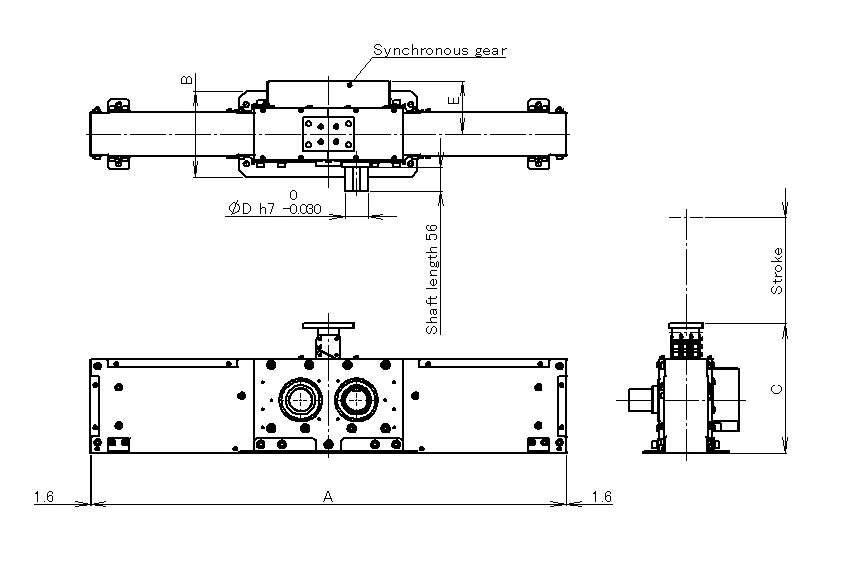

Medium size design stock model and main dimensions

*Horizontal scrolling is possible

Model		Allowable thrust kN		stroke mm	Approximate mass kg		size mm
Model		single drive	double drive	stroke mm	single drive	double drive	A	B	C	D	E
ZUE	063	6.7	10.1	1,200	90	100	1,120	203	305	Φ55	125
				1,600	100	110	1,380
				2,000	120	130	1,650
	083	10.7	16.1	1,200	140	170	1,210	236	350	Single drive: Φ55 Double drive: Φ65	162
				1,600	160	190	1,480
				2,000	190	220	1,760
				2,500	220	250	2,100

For medium sizes, we will also consider the following specifications for design.
Please contact us.

1) Hanging type
2) Horizontal push type
3) With motor reducer
4) Special stroke (100 to 3,000 mm)

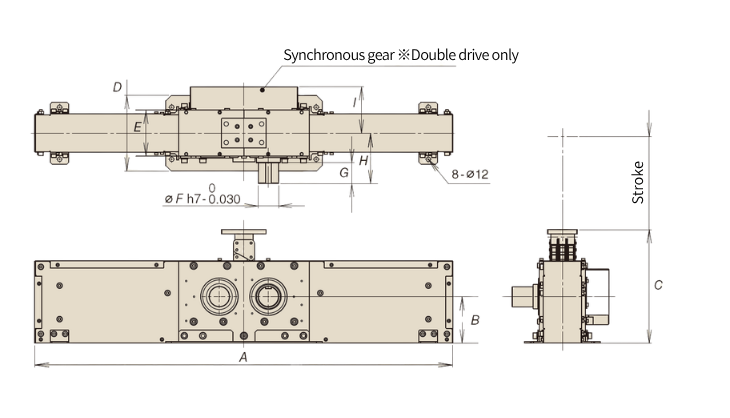

*This diagram shows the double drive specification.

The single drive model does not have a synchronous gear.

Large size

We also handle large sizes with a maximum thrust of 38.2 kN and a maximum stroke of 5,000 mm.
Please contact us for more details.

Large size thrust and stroke

Model		Allowable thrust kN		Maximum stroke mm
Model		single drive	double drive	Maximum stroke mm
ZUE	103	16.3	24.5	4,000
ZUE	123	25.7	38.2	5,000

application

Automobile frame lifting device

This contributes to the tact time improvement of automobile production lines that move up and down at a frequency of more than one round trip per minute.

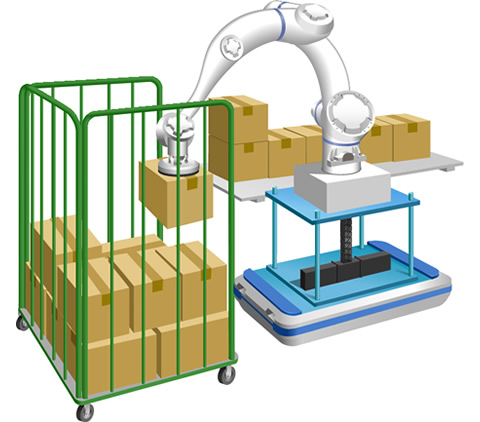

AGV/AMR mounting and robot lifting

By mounting it on an AGV or AMR and raising and lowering the robot, the range of motion can be expanded.

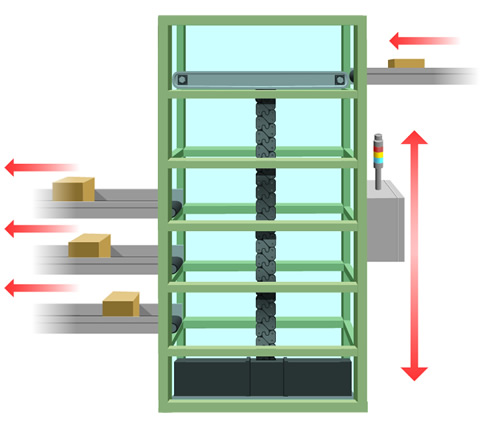

Sorting and transporting onto multi-stage conveyors

Workpieces transported by conveyor are sorted into multiple stages with high-speed lifting, reducing vertical transport time.

Pallet stacking device

The pallet stacking device supports the center of the lifting section, simplifying the guide frame.

Regarding selection requests

A technical sheet is available for requesting selection of medium and large Zip Chain Actuator sizes.
Please fill in the usage conditions and contact us via the website or through your local distributor.

Download the technical sheet for selecting medium and large Zip Chain Actuator sizes.
