technical data linear actuator Power Cylinder Special Compatible
Special support is available to meet your requirements.
Please contact us for details regarding special requests.
*There may be restrictions depending on the series and conditions of use.
| Anti-rotation specification |
|---|
 |
| When moving the tip without connecting it, or when attaching a pulley to pull a rope, it is possible to manufacture a rotation stopper using a guide key. |

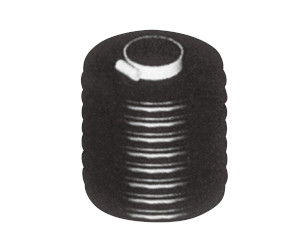

| Special bellows |
|---|
 |
| Protects the cylinder from dust. Low dust generation and heat resistant specifications are available. |
| Driving speed |
|---|
 |
| Special gear ratios are available. |

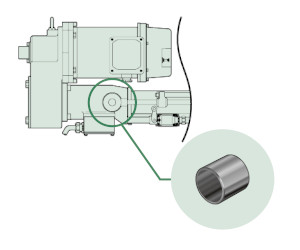

| Anti-sticking measures |
|---|
 |
| Plain bearings are installed in End fitting and trunnion holes to reduce the risk of the fittings and pins sticking during oscillating operation. |
| Stainless steel parts |
|---|
 |
| Rod (rod), End fitting, bolts (excluding strength members), etc. can be changed to stainless steel. |
| Terminal box location |
|---|
 |
| The position and orientation of the terminal box can be changed to suit the layout. |
| shape |
|---|
 |
| The cylinder shape can be changed when space is limited. |
| End fitting |
|---|
 |
| You can choose from U-shaped, I-shaped, or no End fitting, and we can also accommodate types with bearings or grease nipples. |
