Simple calculation of hydraulic cylinder thrust

・The formula for converting hydraulic cylinder output into approximate Power Cylinder thrust is provided below.
・This calculation formula is a rough outline and should be used as reference only. Please contact us for more detailed consideration.


・Enter the hydraulic cylinder specifications and press the Calculate button.

・Please use “.” for the decimal point and not “,” as the calculation error will occur.

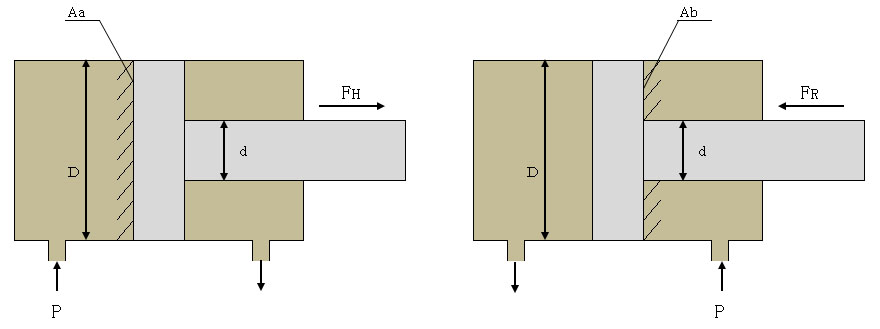

押し時引き時
Cylinder inner diameter D: mm Push side bearing area Aa: mm2
Piston rod diameter d: mm Pull side bearing area Ab: mm2
Operating pressure P (Note 1): Mpa
Hydraulic efficiency (Note 2):

Calculate

Note 1
Please enter a value of 1Mpa or greater.

Note 2
Hydraulic efficiency is the ratio of the theoretical output of a hydraulic cylinder to the load actually applied to the cylinder.
The following values are recommended as a guide for hydraulic efficiency, but the final values should be determined and entered by the customer.
・Low speed operation (50 mm/sec or less): 0.5 to 0.8
- Medium speed operation (51 to 250 mm/sec): 0.35 to 0.5
High-speed operation (251 mm/sec or more): 0.25 to 0.35


・Calculation results of hydraulic cylinder output converted into approximate Power Cylinder thrust

Conversion thrust when pushing (FH) = × × × 10-3　= kN, kgf
Pull equivalent thrust (FR) = × × × 10-3　= kN, kgf

Advantages of replacing hydraulic cylinders with electric cylinders (Power Cylinder)

There are various benefits, such as improved cost performance through energy savings, easier maintenance, and improved cleanliness.

For details, please refer to the guide for replacing hydraulic systems.

Power Cylinder corresponding to the calculated thrust

In selecting

  • ・This selection result does not take into account the inertia ratio. When making a final selection, it is necessary to check the model list in the catalog or the additional points listed in the "Points to Note When Selecting" in technical data.
  • ・一覧に該当シリーズがない場合は、別途ご相談ください。特殊仕様として対応できる場合もございます。推力算出の結果とその他ご使用条件をご送付いただけましたら選定いたします。

When using (differences from hydraulic cylinders)

When stopping the cylinder, please pay attention to the following points.

  • ・It is not possible to stop the cylinder at the stroke end (this is possible with the Eco Series CDS type).
series Thrust speed
mm/s		 stroke
mm		 motor Tolerance
Startup frequency
times/min		 Outdoor use Push (pull) stop
Possibility		 Product Info
kN kgf power supply capacity
F Series 0.1 ～ 6.00 10.2 ～ 612 8 ～ 54 50 ～ 600 DC 29W, 160W 2 Usable Push (pull) stop impossible

Detail
12 / 24V
Eco Series
CDS type		 0.25 ～ 1.00 25.5 ～ 102 90 ～ 200 100 ～ 600 AC 3Φ 50W, 90W 2 ～ 15 Not available Push (pull) stop possible
At the stroke end
Hitting and stopping are also possible

Detail
200V class
G Series 0.7 ～ 3.00 71.4 ～ 306 25 ～ 240 100 ～ 1200 AC 3Φ 0.1 ～ 0.4kW 10 Usable Type A
Type B		 C type

Detail
200/400V class Push (pull) stop
impossible		 Push (pull) stop
Possible
Eco Series
Servo Type		 0.15～15 15.3~1530 30~333 200~1000 Choose the servo motor you want
Can be installed		 15 Not available Push (pull) stop impossible

Detail
T Series 2.45 ～ 39.2 250 ～ 4000 9 ～ 120 200 ～ 1500 AC 3Φ 0.1 ～ 3.7kW 4 ～ 5 Usable Type B C type

Detail
200/400V class Push (pull) stop
impossible		 Push (pull) stop
Possible
Worm Series 49 ～ 490 5000 ～ 50000 5 ～ 72 200 ～ 2000 AC 3Φ 0.4 ～ 11 1 Usable Push (pull) stop impossible

Detail
200/400V class
U Series 58.8 ～ 490 6000 ～ 50000 6.5 ～ 52 500 ～ 2000 AC 3Φ 0.75 ～ 15kW 2 ～ 4 Usable Type B C type

Detail
200/400V class Push (pull) stop
impossible		 Push (pull) stop
Possible
