Power-Lock EF Series
- It is a pressure flange integrated type with the same inner and outer diameter as the EL series.
- · It is an integrated pressure flange with the same inner and outer diameter as the EL series, eliminating the need to manufacture a pressure flange.
- -It has 2 to 3 times the transmission torque of the EL series, so it can be used as a replacement for multiple ELs.
- * Centering function included. No need for troublesome boss step processing.
- *When assembling, the boss will move slightly forward in the axial direction. Please contact us for details.
Standard Specifications
- - The small inner/outer diameter ratio allows it to be used with small hub diameter.
- ・This is a Tsubaki-exclusive series that is not available from other companies.
- - A simple type consisting of three parts: inner ring, outer ring, and tightening bolt.
- Applicable shaft diameter: Φ10 to Φ120
- トルク範囲：39～12600N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6
Structure
Single Taper

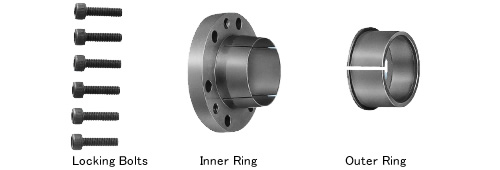

・ Power-Lock EF series consists of three parts: an inner ring, an outer ring, and a tightening bolt.
It can be firmly fastened by simply tightening the fastening bolts.
Handling Instructions
Catalogs and Instruction Manuals
Model number display example
| PL | 010 | X | 013 | EF |
| ｜ Shaft diameter |
｜ Outer diameter |
｜ Series Name |
Product List
*Click to display detailed information.
| Standard Specifications |
|---|
| PL010X013EF |
| PL011X014EF |
| PL012X015EF |
| PL014X018EF |
| PL015X019EF |
| PL016X020EF |
| PL017X021EF |
| PL018X022EF |
| PL019X024EF |
| PL020X025EF |
| PL022X026EF |
| PL024X028EF |
| PL025X030EF |
| Standard Specifications |
|---|
| PL028X032EF |
| PL030X035EF |
| PL032X036EF |
| PL035X040EF |
| PL038X044EF |
| PL040X045EF |
| PL042X048EF |
| PL045X052EF |
| PL048X055EF |
| PL050X057EF |
| PL055X062EF |
| PL060X068EF |
| PL065X073EF |
| Standard Specifications |
|---|
| PL070X079EF |
| PL075X084EF |
| PL080X091EF |
| PL085X096EF |
| PL090X101EF |
| PL095X106EF |
| PL100X114EF |
| PL110X124EF |
| PL120X134EF |
