Plastic top chain Plastic Roller Table ST/RT Type
- Chain pitch
9.525, 12.70, 15.875, 19.05mm - For straight running
- Free-flow chain that can be loaded directly without a pallet
- Plastic Rollers are attached to the chain pitch line, so the spacing of Plastic Rollers does not change even when the chain is bent.
- Plastic Roller rolling friction coefficient: 0.06 to 0.10
Features
- - A free-flow chain that can be loaded directly without a pallet.
- -Plastic Rollers are attached to the chain pitch line, so the spacing of Plastic Rollers does not change even when the chain is bent.
- ・Rolling friction coefficient of Plastic Roller: 0.06 to 0.10
- · ST type: The special attachment and the top surface of Plastic Roller are at the same height, allowing for smooth transfer from one row of chain to the other when two parallel rows are installed.
- - RT type: The "Plastic Roller width" is twice that of the ST type (excluding the RT300 series), making it ideal for transporting pallets and cases.
Structure

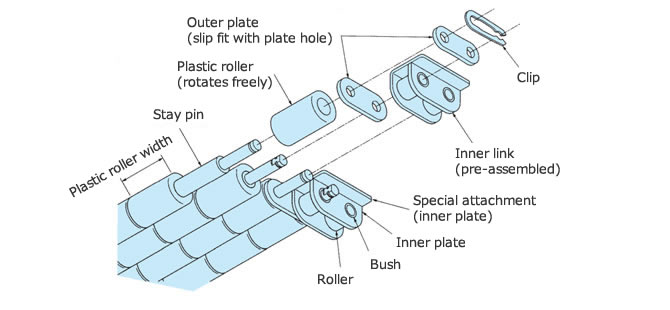

ST type structural drawing
*ST3 ** and RT3 ** do not come with rollers.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | ● | △ | ● | ● | △ | △ | △ | △ |
| Medium | △ | ● | △ | ● | ● | △ | △ | △ | △ |
| Small | △ | ● | △ | ● | ● | △ | △ | △ | △ |
Purpose
- ■When you want to reduce scratches on the bottom of the transported items and line pressure in applications with accumulation
Product List
Please refer to Plastic Roller Table list for compatibility with each chain specification.
■Main body chain specifications
- ・ SS Series:
All parts of the main chain are made of 18-8 stainless steel, so it can be used in environments where corrosion resistance is a priority.
- ・ NP Series (Ni plating):
The main chain is made of nickel-plated steel.
The Ni plating gives it a beautiful appearance and makes it rust-resistant.
・Materials of parts according to main body specifications
SS Series
Plastic Roller: Polyacetal (color: light gray)
Stay pin: 18-8 stainless steel
Special attachment: 18-8 stainless steel
spring clip: 17-7 stainless steel
Main chain: Stainless steel
NP Series
Plastic Roller: Polyacetal (color: light gray)
Stay pin: 18-8 stainless steel
Special attachment: 18-8 stainless steel
spring clip: 17-7 stainless steel
Main chain: Nickel plated steel
SS Series
Plastic Roller: Polyacetal (color: light gray)
Stay pin: 18-8 stainless steel
spring clip: 17-7 stainless steel
Main chain: Stainless steel
*Click on the format to display detailed information.
| Chain pitch mm | 9.525, 12.70, 15.875 | 9.525, 12.70, 15.875, 19.05 | |
|---|---|---|---|
| Purpose | For straight running | ||
| Chain Type | - | ||
| - | |||
| Main body chain specifications | SS Series | NP Series | SS Series |
| Pin Type | - | ||
| Pin Material | - | ||
| Pin Shape | - | ||
| Top plate thickness mm | - | ||
| Pusher Material | - | ||
| Other features | - | ||
| Model | ST-SS | ST-NP | RT-SS |
 |
 |
 |
|
| Chain width mm | 50.0～601.2 | ||
| Organizational Unit | - | ||
Note
1.RS Sprockets (B type) (23T or more teeth) can be used, but for 22T or less teeth, the sprocket boss and chain plate
Plastic Roller table Please use the sprocket.
2. The RT600 type has the same outer link height as Inner link height.
