Major Specifications the RT type Plastic Roller ^Table

RT-SS

Features

- A free-flow chain that can be loaded directly without a pallet.
- The "width of Plastic Roller" is twice that of the ST type (excluding the RT300 series), making it suitable for transporting pallets and cases.
・Rolling friction coefficient of Plastic Roller = 0.06 to 0.10
-Plastic Roller are attached to the pitch line of the chain, so the spacing between Plastic Roller does not change even when the chain is bent.

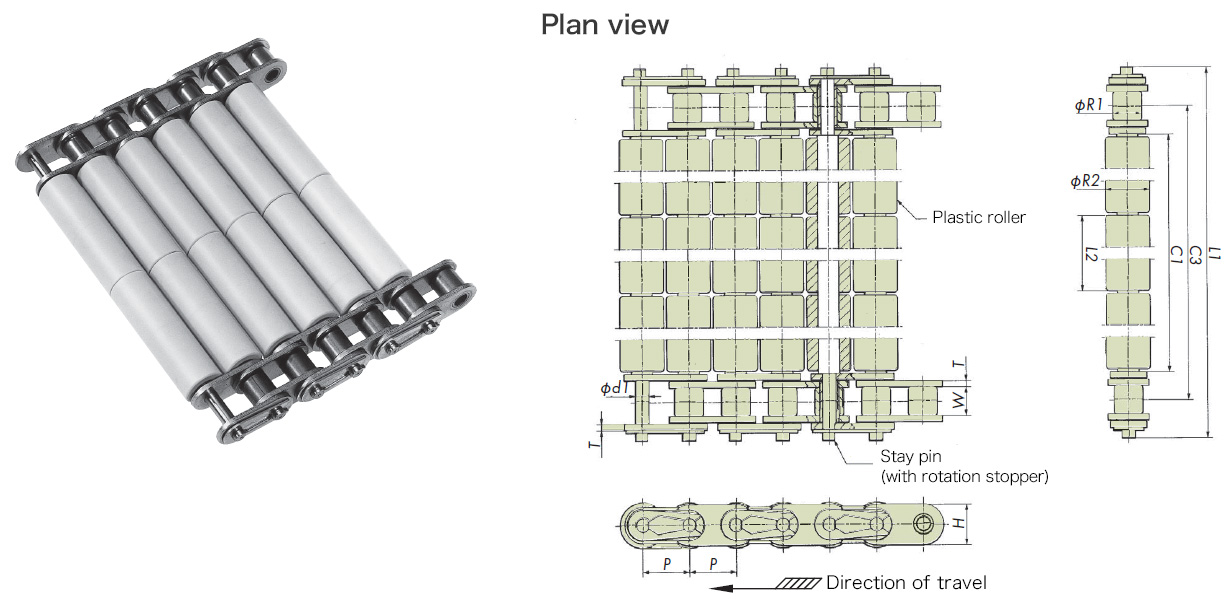

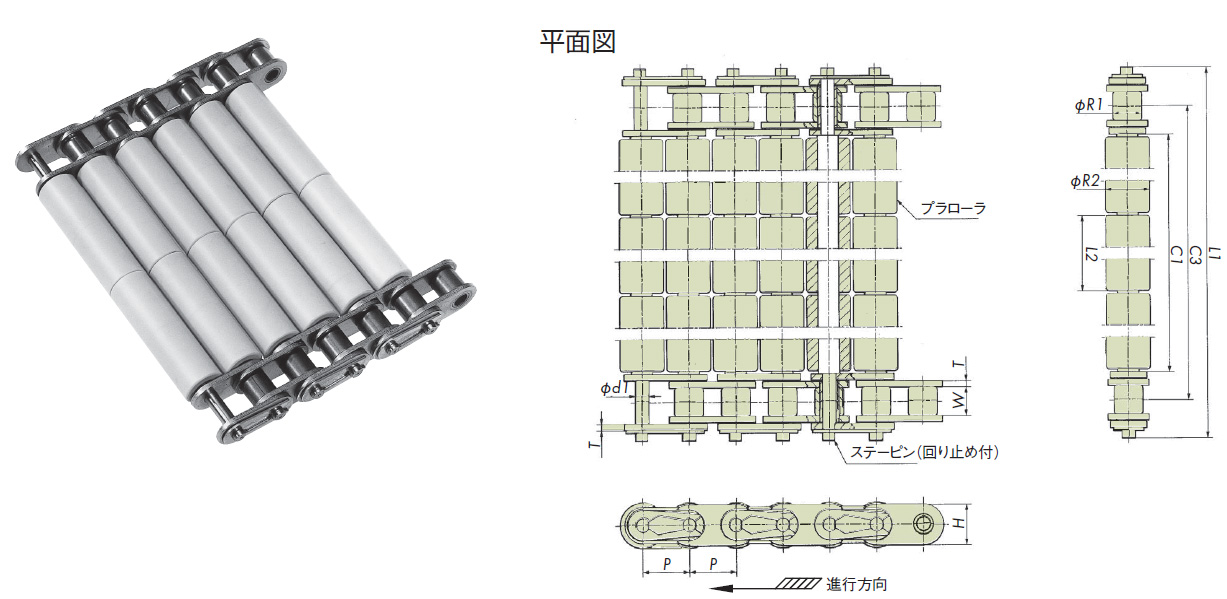

[Click to enlarge]

PDF outline drawing

お問合せください

DXF Drawing and 3D CAD data

Go to the CADENAS WEB2CAD website

※	3D CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity."
※	For inquiries about 3D CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032

Catalogs and Instruction Manuals

Major Specifications, price, delivery

format
(

Click to see the format
View details.)

Specification

loading
Tolerance
weight
kg/m ²

Dimensions in mm

pitch
P

Inner width
W

Laura
(Bush)
Outer diameter
R1

Plate

Plastic Roller

pin
Outer diameter
d1

width
H

Thickness
T

Outer diameter
R2

length
L2

RT300 type

SS Series

9.525

4.78

(5.08)

8.2

1.25

9.2

10.0

3.54

Model	Dimensions in mm			Estimated mass kg/m
Model	Effective width C1	center distance C3	Pin Length L1	Estimated mass kg/m
RT305-SS	50.0	60.4	74.2	1.68
RT310-SS	100.0	110.4	124.2	2.61
RT315-SS	150.0	160.4	174.2	3.54
RT320-SS	200.0	210.4	224.2	4.47

RT400 type

SS Series

200

12.70

7.95

7.92

11.1

1.5

12.2

50.0

3.92

Model	Dimensions in mm			Estimated mass kg/m
Model	Effective width C1	center distance C3	Pin Length L1	Estimated mass kg/m
RT404-SS	101.2	115.6	135.6	4.03
RT406-SS	151.2	165.6	185.6	5.40
RT408-SS	201.2	215.6	235.6	6.76
RT410-SS	251.2	265.6	285.6	8.12
RT412-SS	301.2	315.6	335.6	9.48
RT414-SS	351.2	365.6	385.6	10.85
RT416-SS	401.2	415.6	435.6	12.21

RT500 type

SS Series

300

15.875

9.53

10.16

13.9

2.0

15.2

50.0

5.00

Model	Dimensions in mm			Estimated mass kg/m
Model	Effective width C1	center distance C3	Pin Length L1	Estimated mass kg/m
RT504-SS	101.2	119.0	142.8	5.80
RT506-SS	151.2	169.0	192.8	7.66
RT508-SS	201.2	219.0	242.8	9.48
RT510-SS	251.2	269.0	292.8	11.34
RT512-SS	301.2	319.0	342.8	13.17
RT514-SS	351.2	369.0	392.8	15.03
RT516-SS	401.2	419.0	442.8	16.89
RT518-SS	451.2	469.0	492.8	18.75
RT520-SS	501.2	519.0	542.8	20.54
RT522-SS	551.2	569.0	592.8	22.40
RT524-SS	601.2	619.0	642.8	24.23

RT600 type

SS Series

300

19.05

12.70

11.91

16.8

2.4

18.3

50.0

5.96

Model	Dimensions in mm			Estimated mass kg/m
Model	Effective width C1	center distance C3	Pin Length L1	Estimated mass kg/m
RT604-SS	101.2	124.0	153.6	6.73
RT608-SS	201.2	224.0	253.6	10.38
RT612-SS	301.2	324.0	353.6	14.03
RT616-SS	401.2	424.0	453.6	17.68
RT620-SS	501.2	542.0	553.6	21.32
RT624-SS	601.2	624.0	653.6	24.97

Note
1. "○": Made to order.
We cannot manufacture any specifications that are not listed in the chain specification table above.
2. The RT300 type base chain (#35) is a bushed type without rollers.
3. The allowable load mass varies depending on the width and length of Plastic Roller table, so please refer to the transport capacity table.

Applicable sprocket

*Click on the model number to display detailed information. Click on the image to enlarge.

Applicable chain size	Model number	Number of teeth	Pitch circle diameter mm	Shaft hole diameter mm
Applicable chain size	Model number	Number of teeth	Pitch circle diameter mm	Pilot bore	Maximum
RS35	RS35-1B14TQ-R	14	42.81	9.5	15
	RS35-1B15TQ-R	15	45.80	9.5	16
	RS35-1B16TQ-R	16	48.82	9.5	19
	RS35-1B17TQ-R	17	51.84	9.5	20
	RS35-1B18TQ-R	18	54.85	12.7	23
	RS35-1B19TQ-R	19	57.87	12.7	26
	RS35-1B20TQ-R	20	60.89	12.7	28
	RS35-1B21TQ-R	21	63.91	12.7	30
RS40	RS40-1B13TQ-R	13	53.07	12.7	20
	RS40-1B14TQ-R	14	57.07	12.7	23
	RS40-1B15TQ-R	15	61.08	12.7	26
	RS40-1B16TQ-R	16	65.10	12.7	28
	RS40-1B17TQ-R	17	69.12	12.7	32
	RS40-1B18TQ-R	18	73.14	12.7	35
	RS40-1B19TQ-R	19	77.16	12.7	38
	RS40-1B20TQ-R	20	81.18	12.7	41
	RS40-1B21TQ-R	21	85.21	12.7	45
	RS40-1B22TQ-R	22	89.24	12.7	47
RS50	RS50-1B14TQ-R	14	71.34	12.7	31
	RS50-1B15TQ-R	15	76.35	12.7	35
	RS50-1B16TQ-R	16	81.37	12.7	38
	RS50-1B17TQ-R	17	86.39	12.7	43
	RS50-1B18TQ-R	18	91.42	12.7	46

Note
1. All models have hardened tooth tips.
2. Numbers of teeth greater than those listed in the table above can be used with RS B-type sprockets.
3. The RT600 model can be used with RS sprockets B type 12T or larger.
4. The same applies to stainless steel specifications.
5. This product is made to order.
