Plastic top Chain TPUMF-T/TPUMF-TB Type
- チェーンピッチ
19.05mm - For curved transport
- By adopting a chain pitch of 19.05mm, half that of the conventional TPU type (chain pitch 38.1mm), it is effective in saving space at conveyor transfer points.
- Chain with float-preventive tabs.
- Prevents scratches on the top surface of the plate at corners, on ascending and descending conveyors, and on return-way.
Features
-
・Chains can be selected to suit transport conditions

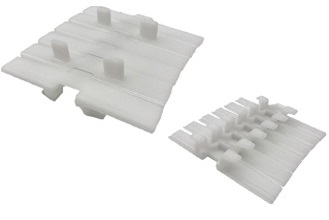

Features Curved conveyor chain with a flat conveying surface The three-convex shape of the conveying surface prevents the conveyed object from slipping off. Inclined transport is possible by combining with TPUMF-T and TPUMF-TB types using flighted links. Model TPUMF1200-T

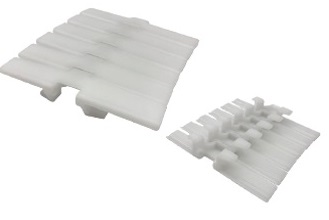

TPUMF1200-TB

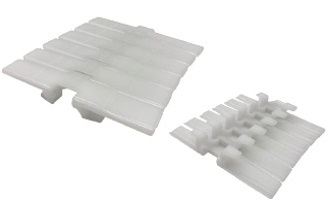

TPUMF1200F-T

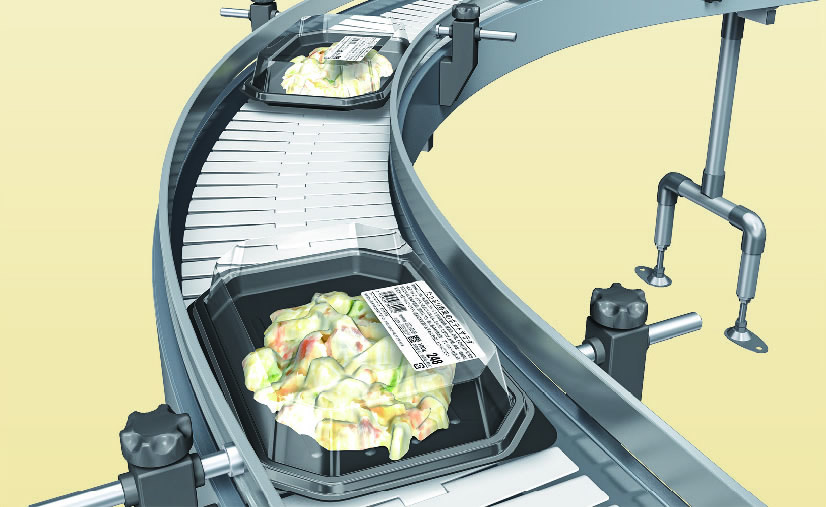

Application example
- Notes: 1. The top surface of the TPUMF1200-TB plate is glossy and has no grain.
- 2. The top surface of the TPUMF1200F-T plate and flights are glossy and free of grain.
-

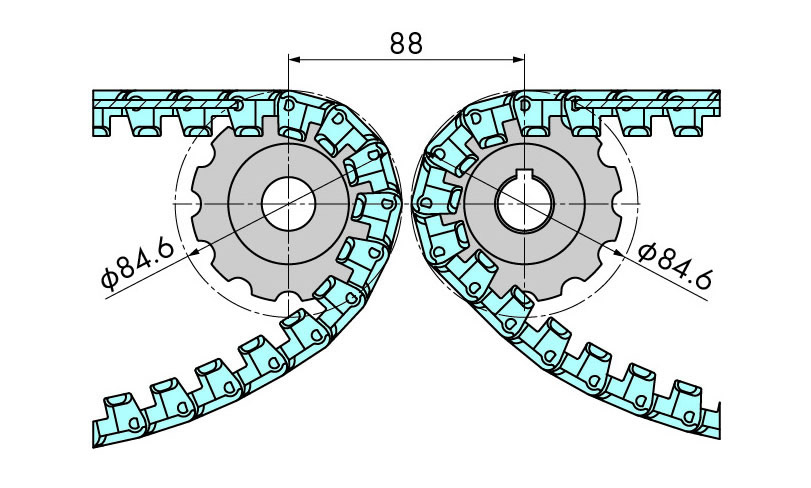

・Short pitch reduces transfer space
The chain pitch is 19.05mm, which is half the chain pitch of conventional TPU types.
in-line layout minimizes dead space, allowing for smooth transfers.
-

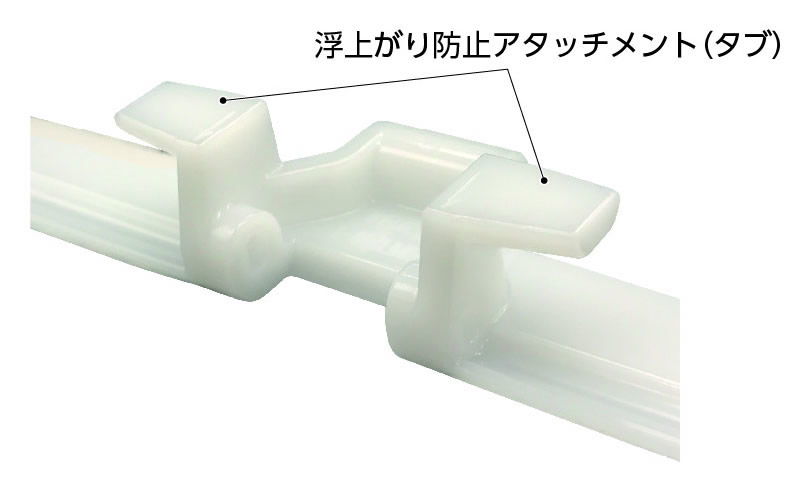

-float-preventive tabs prevents floating and scratches on the conveying surface
float-preventive tabs prevents the chain from lifting up at corners or on ascending or descending conveyors.
In addition, return-way is supported by float-preventive tabs to prevent scratches on the conveying surface, making it ideal for conveying food.
-

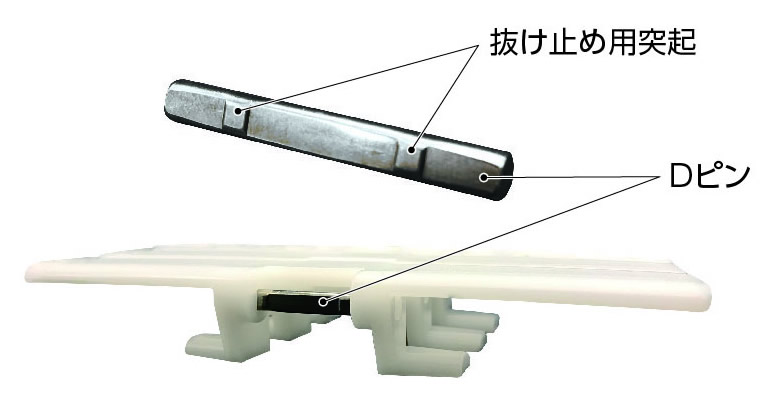

・D-pins are used for the connecting pins to prevent outside link hole cracks
The cross section of the connecting pin is D-shaped and has two protrusions to prevent it from coming loose.
This protrusion catches on the inside of outside link hole in the main link, preventing the pin from coming out.
The D-pin and outside link hole of the chain are slip fit, which makes it less likely for fitting stress to occur in outside link hole of the main link, preventing cracks.
-
- Complies with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370)
The standard (W) and Low Friction / Anti-Wear (LFG) specifications comply with the Food Sanitation Act (Ministry of Health and Welfare Notification No. 370).
The standard (W) specification uses FDA (U.S. Food and Drug Administration) approved materials.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | ||||||||
| Medium | △ | △ | △ | △ | ○ | ||||
| Small | ○ | ○ | ○ | ○ | ● | ||||
Purpose

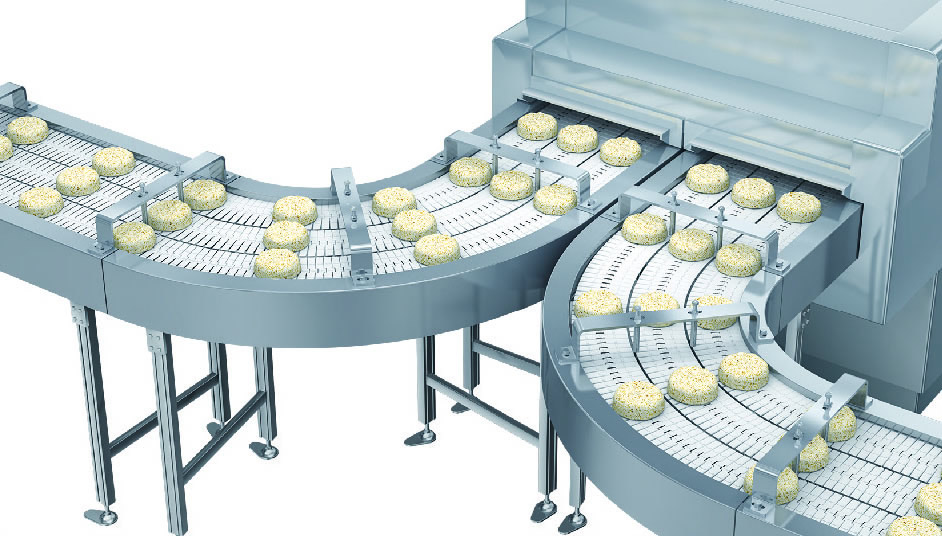

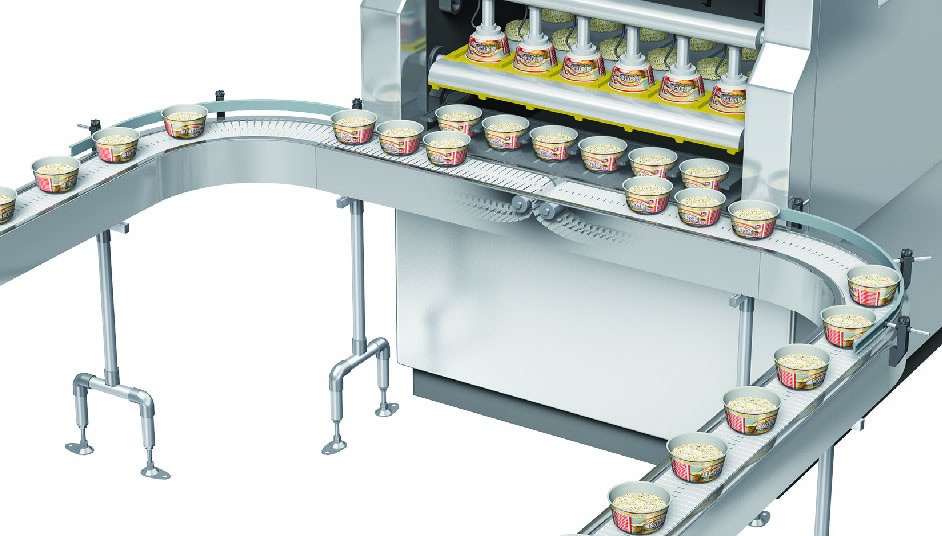

- ■ Noodle production line
Note: 1. When using chains for direct food transport, detailed chain usage information and a safety confirmation document must be obtained in accordance with the Product Liability Act.
2.The usage examples are for illustrative purposes only.
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 19.05 | ||
|---|---|---|---|
| Purpose | For curved transport | ||
| Chain Type | - | ||
| - | |||
| Main body chain specifications | - | ||
| Pin Type | Stainless steel pin type | ||
| Pin Material | SUS304 | ||
| Pin Shape | D-pin | ||
| Top plate thickness mm | 3.5 | ||
| Pusher Material | - | ||
| Other features | Includes float-preventive tabs | Includes float-preventive tabs Link with Flight |
|
| Model | TPUMF1200-T | TPUMF1200-TB | TPUMF1200F-T |
 |
 |
 |
|
| Top plate width mm | 120 | ||
