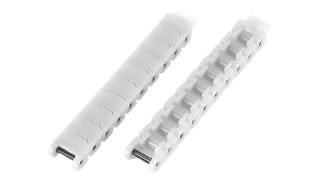

Plastic block chain RSP/RSP-P Type
- Chain pitch
9.525, 12.7, 15.875, 19.05, 25.4mm - For straight running
- Various chain pitches and link widths allow for use in a wide range of applications
- RS sprockets can be used.
Features
- The pitch is smaller than that of Plastic top chain, allowing for a smaller sprocket outer diameter, which is effective in saving space at transfer points.
- Protects transported items and prevents scratches caused by sliding. Rust-free and hygienic.
- The self-lubricating nature of the plastic means it can be used without oil, making it ideal for environments where oil is undesirable.It is also suitable for transporting small items and pallets.
- The plastic pin type is lightweight, making it easy to install and replace, and is expected to have a longer life than the stainless steel pin type when used with water lubrication.
Note
1. RS sprockets (14T or more teeth) can be used.
2. If using at temperatures below -20°C, a special sprocket will be required. Please contact us for details.
About the model change
Plastic block chain RSP40 and RSP60 stainless steel pin type were redesigned in July 2008.
-
- Changed the shape of the top surface of the link
Thin-walled sections that may crack or deform have been eliminated, and the chip-resistant shape has been standardized to RSP35 and RSP50.
-
・The joint pin has been changed from a knurled pin to a D pin.
This reduces damage to the connecting part (outside link hole) and prevents pins from coming loose.
Note
1. Model change products cannot be connected to conventional products.
2. When replacing, please replace one chain at a time.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Small | ● | ● | ● | ● | ● | ● | ● | ● | ● |
Purpose
- ■ Small item transport
- ■Pallet transport
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 9.525, 12.7, 15.875, 19.05, 25.4 | 12.7, 19.05 |
|---|---|---|
| Purpose | For straight running | |
| Chain Type | - | |
| - | ||
| Main body chain specifications | - | |
| Pin Type | Stainless steel pin type | Plastic pin type |
| Pin Material | SUS304, titanium | Special engineering plastics |
| Pin Shape | D-pin, Diamond knurl | D-pin |
| Top plate thickness mm | - | |
| Pusher Material | - | |
| Other features | - | |
| Model | RSP | RSP-P |
|
 |
|
| Chain width mm | 13, 20, 22.5, 30, 40 | 20, 30 |
| Organizational Unit | - | |
Note
1. Only the super chemical resistant (SY) specification has Diamond knurl pins.
2. The RSP40 and RSP60 underwent a model change in July 2008.
