Product Guide Parts Guide Brackets/Adjustable Heads/Knobs/Spacers
- Guide bracket/Adjustable head/Knob/Spacer
- Use in conjunction with a clamp pin such as guide channel clamp to secure the guide.
- We also offer a lineup of spacers for adjusting the height and width of guide brackets.
-
Purpose
Guide bracket/adjustable head/knob:
Use to secure the guide.Spacer:
Use this to adjust the height and width of the guide bracket. -
Usage image
■ Guide brackets/spacers
[Click to enlarge]
[Click to enlarge]
[Click to enlarge]
■Adjustable head/knob
[Click to enlarge]
[Click to enlarge]
For a list of product guide parts and combinations, please refer to the product guide parts combination list below.

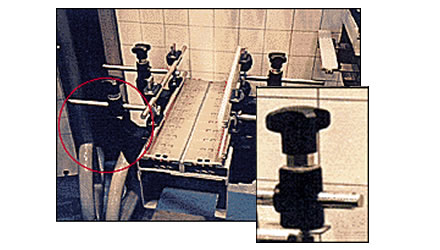

Guide bracket application example
Parts used
- ・Guide bracket
- ・Adjustable head
- ·Knob
Key points and benefits of hiring
- -Guide channel can be adjusted forward and backward.
- -If used in combination with a spacer, the height and width can also be adjusted.
Guide bracket/adjustable head/knob/spacer list
Guide bracket
| Model number | TP-C13696T-GRB | TP-C13697T-GRB | TP-C13054T-GRB | TP-C13055T-GRB |
|---|---|---|---|---|
| type | fixed | Turning | ||
| Pin diameter mm | Φ12 | Φ14 | Φ12 | Φ14 |
| Applicable guide bracket model number | - | |||
| shape |  |
 |
||
| Body material | reinforced polyamide | |||
| Body exterior color | black | |||
| Adjustable Head Material |
- | reinforced polyamide | ||
| Adjustable Head Appearance color |
- | black | ||
| Knob Material | Brass + Ni-plated nut inserted into polyamide | |||
| Knob exterior color | black | |||
| Eyebolt Material | stainless steel | - | ||
| Bolt and nut material | - | stainless steel | ||
| Adjustment pin material | - | |||
| MB equivalent product | MB107-68200N-GRB, MB107-6820-GRB |
MB107-67821N-GRB, MB107-67821-GRB |
MB637-648372-GRB, MB257-64591-GRB |
MB637-648382-GRB, MB257-64601-GRB |
| Model number | TP-A0 |
|---|---|
| type | fixed |
| Pin diameter mm | Φ14 |
| Applicable guide bracket model number | - |
| shape |  |
| Body material | reinforced polyamide |
| Body exterior color | black |
| Adjustable Head Material |
- |
| Adjustable Head Appearance color |
- |
| Knob Material | - |
| Knob exterior color | - |
| Eyebolt Material | Brass |
| Bolt and nut material | - |
| Adjustment pin material | stainless steel |
| MB equivalent product | - |
Spacer
| Model number | TP-C13400T-SP | TP-C13019T-SP | TP-C13752T-SP |
|---|---|---|---|
| type | For width adjustment | For height adjustment | |
| Pin diameter mm | - | ||
| Applicable guide bracket model number | TP-C13696T-GRB, TP-C13697T-GRB |
TP-C13054T-GRB, TP-C13055T-GRB |
|
| shape |  |
 |
 |
| Body material | reinforced polyamide | ||
| Body exterior color | black | ||
| Adjustable Head Material |
- | ||
| Adjustable Head Appearance color |
- | ||
| Knob Material | - | ||
| Knob exterior color | - | ||
| Eyebolt Material | - | ||
| Bolt and nut material | - | ||
| Adjustment pin material | - | ||
| MB equivalent product | MB61-50870N-SP, MB61-5087-SP |
MB142-6587-SP | MB227-61931-SP |
Adjustable Head
| Model number | TP-C13028T-SH | TP-C13029T-SH | TP-C13037T-SH | TP-C13038T-SH |
|---|---|---|---|---|
| type | - | |||
| Applicable adjustable head model number | - | |||
| Pin diameter mm | - | |||
| shape |  |
 |
||
| Material | - | |||
| Head Material | reinforced polyamide | |||
| Head exterior color | black | |||
| Materials other than the head | stainless steel | |||
| Body Material | - | |||
| Body exterior color | - | |||
| Element Material | - | |||
| Plate Material | - | |||
| Plate exterior color | - | |||
| Washer Material | - | |||
| MB equivalent product | MB255-6967-SH | MB255-6968-SH | MB256-64561-SH | MB256-64571-SH |
Knob
| Model number | TP-C13355T-HD |
|---|---|
| type | - |
| Applicable adjustable head model number | TP-C13037T-SH, TP-C13038T-SH |
| Pin diameter mm | - |
| shape |  |
| Material | - |
| Head Material | reinforced polyamide |
| Head exterior color | black |
| Materials other than the head | Brass + Ni plating |
| Body Material | - |
| Body exterior color | - |
| Element Material | - |
| Plate Material | - |
| Plate exterior color | - |
| Washer Material | - |
| MB equivalent product | MB183-54921-HD |
