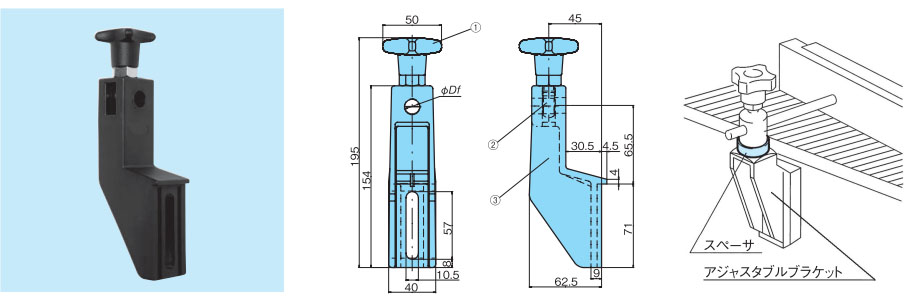

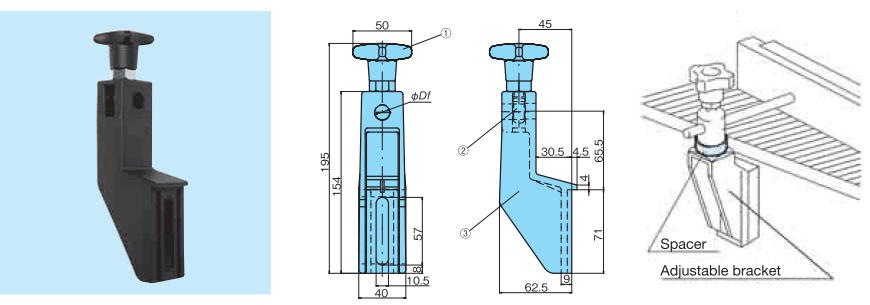

Adjustable Bracket (GRB)
Use in conjunction with a clamp to secure the guide.
[Click to enlarge]
| Model number | Material | Df | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
||
|---|---|---|---|---|---|---|---|---|---|
| 1. Nobu | 2. Eyebolt | 3. Bracket | |||||||
| TP-C13696T-GRB | Polyamide and brass Ni-plated nut insert (Exterior color: Black) |
stainless steel | reinforced polyamide (Exterior color: Black) |
12 | MB107-68200N-GRB MB107-6820-GRB |
DXF | Please contact us | Please contact us | |
| TP-C13697T-GRB | 14 | MB107-67821N-GRB MB107-67821-GRB |
DXF | Please contact us | Please contact us | ||||
Note
1. For pins to use, see the Clamp Pins and Bracket Pins section.
2. The TP-C13250T-TS and TP-C13255-TS (tray supporter) can be attached to the groove on the back of the main unit.
[Click to enlarge]
| Model number | Material | Df | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| 1.Adjustable head (360° rotation possible) |
2. Nobu | 3. Nut | 4. Bracket | |||||||
| TP-C13054T-GRB | reinforced polyamide | stainless steel | stainless steel | reinforced polyamide | 12 | MB637-648372-GRB MB257-64591-GRB |
DXF | Please contact us | Please contact us | |
| TP-C13055T-GRB | 14 | MB637-648382-GRB MB257-64601-GRB |
DXF | Please contact us | Please contact us | |||||
Note
1. For pins to use, see the Clamp Pins and Bracket Pins section.
2. The TP-C13250T-TS and TP-C13255-TS (tray supporter) can be attached to the groove on the back of the main unit.

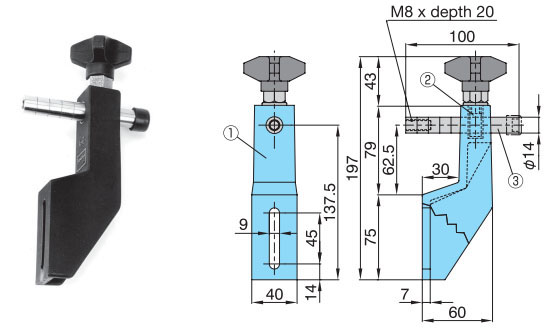

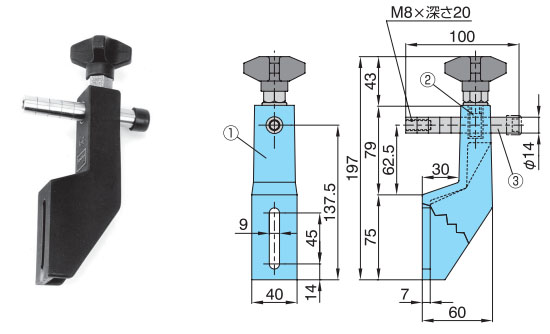

Guide bracket
[Click to enlarge]
| Model number | Material | DXF Drawing data |
Price | Delivery | PDF Dimensions |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|
| 1. Main unit | 2. Eyebolt | 3. Adjustment pin | ||||||
| TP-A0 | reinforced polyamide | Brass | Stainless steel | DXF | Please contact us | Please contact us | 3DCAD | |
Note
1.A0 (A Zero).

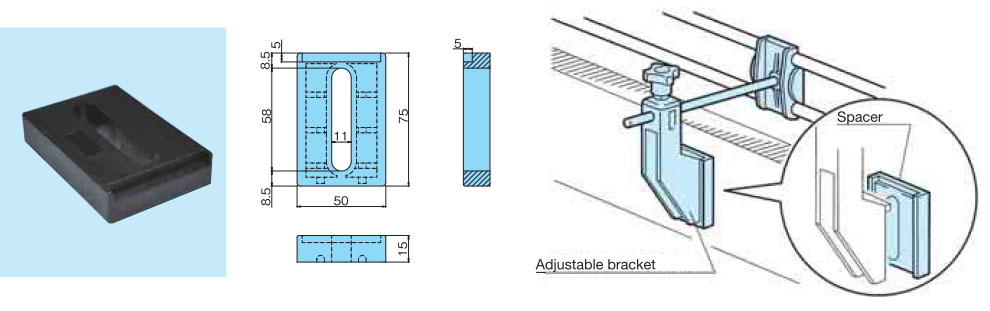

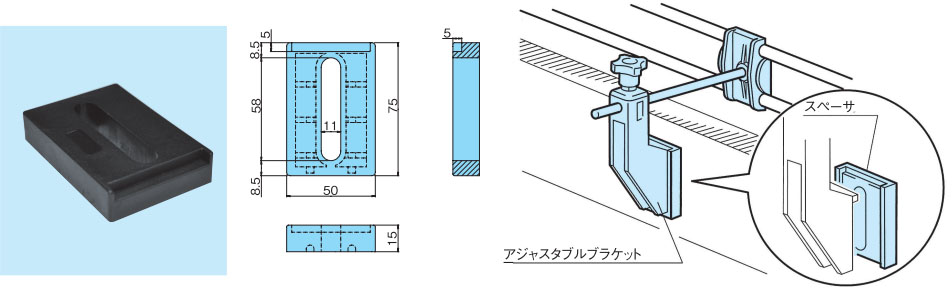

Spacer (SP)
Use this to adjust the height and width of the adjustable bracket.
[Click to enlarge]
| Model number | Material | Applicable adjustable bracket |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|
| TP-C13400T-SP | reinforced polyamide | TP-C13696T-GRB TP-C13697T-GRB |
MB61-50870N-SP MB61-5087-SP |
DXF | Please contact us | Please contact us |
Note
1. There are grooves on the back for installing the TP-C13250T-TS and TP-C13255-TS (tray supporter).
[Click to enlarge]
| Model number | Material | Applicable adjustable bracket |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|

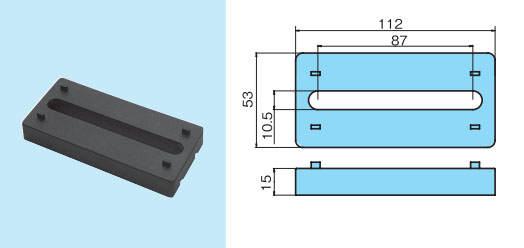

| TP-C13019T-SP | reinforced polyamide | TP-C13054T-GRB TP-C13055T-GRB |
MB142-6587-SP | DXF | Please contact us | Please contact us |
Note
1. There are grooves on the back for installing the TP-C13250T-TS and TP-C13255-TS (tray supporters). Multiple trays can be stacked.

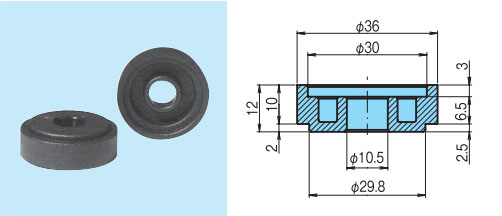

[Click to enlarge]
| Model number | Material | Applicable adjustable bracket |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|
| TP-C13752T-SP | reinforced polyamide | TP-C13054T-GRB TP-C13055T-GRB |
MB227-61931-SP | DXF | Please contact us | Please contact us |

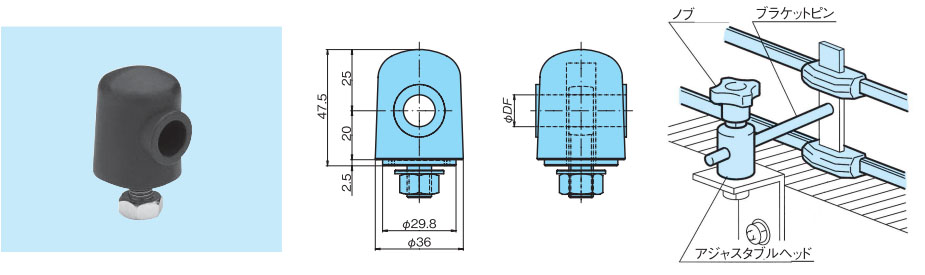

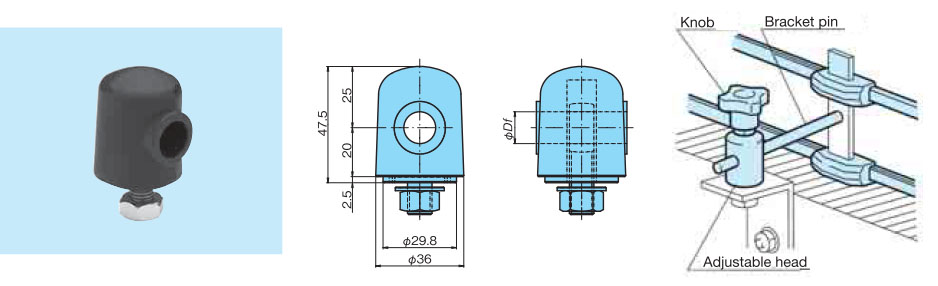

Adjustable Head (SH)
Use in conjunction with a clamp to secure the guide.
[Click to enlarge]
| Model number | Material | Df | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|
| head | Other than the head | |||||||
| TP-C13028T-SH | reinforced polyamide | stainless steel | 12 | MB255-6967-SH | DXF | Please contact us | Please contact us | |
| TP-C13029T-SH | 14 | MB255-6968-SH | DXF | Please contact us | Please contact us | |||

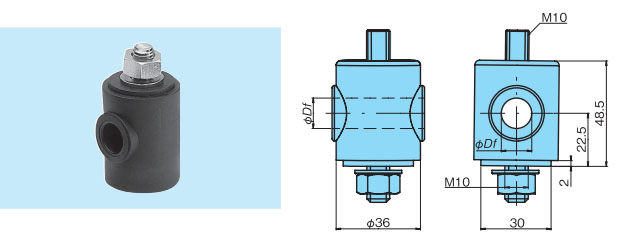

[Click to enlarge]
| Model number | Material | Df | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|
| head | Other than the head | |||||||
| TP-C13037T-SH | reinforced polyamide | stainless steel | 12 | MB256-64561-SH | DXF | Please contact us | Please contact us | |
| TP-C13038T-SH | 14 | MB256-64571-SH | DXF | Please contact us | Please contact us | |||
Note
1.Use in combination with the TP-C13355T-HD knob.

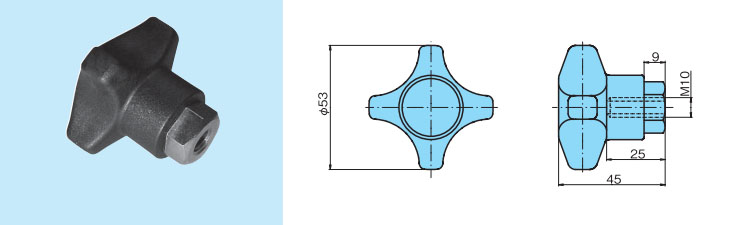

Nobu (HD)
[Click to enlarge]
| Model number | Material | Applicable adjustable bracket |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|
| Knob | Threaded part | |||||||
| TP-C13355T-HD | reinforced polyamide | Brass + Ni plating | TP-C13037T-SH TP-C13038T-SH |
MB183-54921-HD | DXF | Please contact us | Please contact us | |

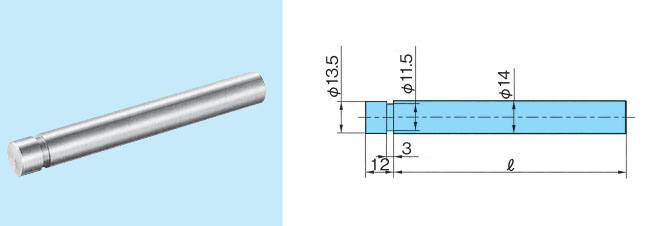

Guide pin (GP)
This is a dedicated pin for TP-C13006NVT-GRC (guide channel clamp).
[Click to enlarge]
| Model number | Material | ℓ | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|---|---|---|---|---|---|---|---|
| TP-C14-100T-GP | stainless steel | 100 | MB14-100-GP | DXF | Please contact us | Please contact us | |
| TP-C14-200T-GP | 200 | MB14-200-GP | DXF | Please contact us | Please contact us |

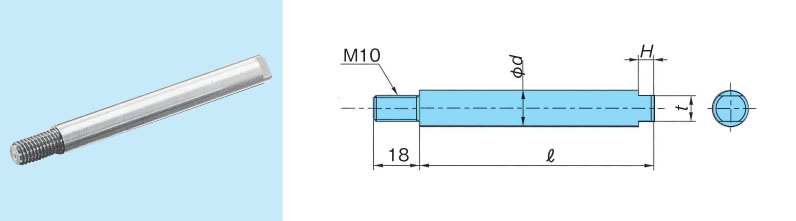

Clamp pin (CP)
The fixed side is a male thread type. Please use it in conjunction with guide channel clamp and adjustable bracket.
[Click to enlarge]
| Model number | Material | size | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| d | ℓ | H | t | |||||||
| TP-C12-100T-CP | stainless steel | 12 | 100 | 5 | 8 | MB12-100-CP | DXF | Please contact us | Please contact us | |
| TP-C12-200T-CP | 12 | 200 | 5 | 8 | MB12-200-CP | DXF | Please contact us | Please contact us | ||
| TP-C14-100T-CP | 14 | 100 | 6 | 10 | MB14-100-CP | DXF | Please contact us | Please contact us | ||
| TP-C14-200T-CP | 14 | 200 | 6 | 10 | MB14-200-CP | DXF | Please contact us | Please contact us | ||
| TP-C16-100T-CP | 16 | 100 | 8 | 13 | MB16-100-CP | DXF | Please contact us | Please contact us | ||
| TP-C16-200T-CP | 16 | 200 | 8 | 13 | MB16-200-CP | DXF | Please contact us | Please contact us | ||

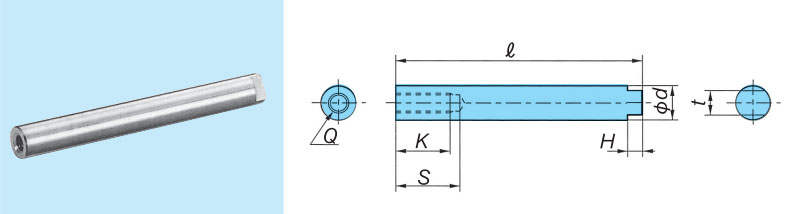

Bracket pin (BP)
The fixed side is a female thread type. Please use in conjunction with guide channel clamp and adjustable bracket.
[Click to enlarge]
| Model number | Material | size | MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | ℓ | H | t | Q | S | K | |||||||
| TP-C12-100T-BP | stainless steel | 12 | 100 | 5 | 8 | M6 | 24 | 20 | MB12-100-BP | DXF | Please contact us | Please contact us | |
| TP-C12-200T-BP | 12 | 200 | 5 | 8 | M6 | 24 | 20 | MB12-200-BP | DXF | Please contact us | Please contact us | ||
| TP-C14-100T-BP | 14 | 100 | 6 | 10 | M8 | 26 | 22 | MB14-100-BP | DXF | Please contact us | Please contact us | ||
| TP-C14-200T-BP | 14 | 200 | 6 | 10 | M8 | 26 | 22 | MB14-200-BP | DXF | Please contact us | Please contact us | ||
| TP-C16-100T-BP | 16 | 100 | 8 | 13 | M10 | 30 | 27 | MB16-100-BP | DXF | Please contact us | Please contact us | ||
| TP-C16-200T-BP | 16 | 200 | 8 | 13 | M10 | 30 | 27 | MB16-200-BP | DXF | Please contact us | Please contact us | ||
