Frame Support Parts Threaded Tube End
- Threaded Tube End
- Insert into a pipe and combine with a universal foot to use as a leg for the conveyor frame.
-
Purpose
Insert into a pipe, combine with a universal foot, and use as a leg for the conveyor frame.
-
Usage image
[Click to enlarge]
Threaded tube end installation example
[Click to enlarge]
For a list of frame support parts and applicable part combinations for each pipe, please refer to the applicable part combination table by pipe size below.
Features

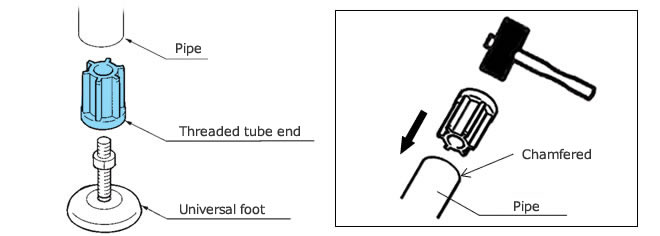

Easy to install
- - Can be installed by simply hammering it into the chamfered pipe.
No welding is required, making this a safe and easy-to-use part. - -Even if you need to make a stand in a hurry, you can quickly make one using commercially available pipes.
Note: Please prepare a pipe with a thickness of 1.65 mm.

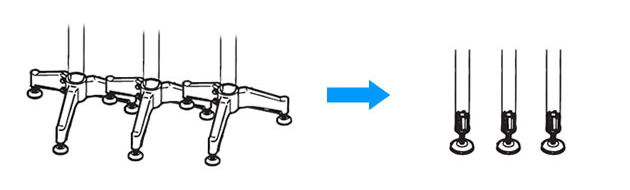

Compact and low cost
It is suitable for supporting lightweight conveyors and when supporting multiple legs such as multiple strand conveyors. It is also less expensive than a support base.
Threaded Tube Ends
| Model number | TP-C14767T-SRB | TP-C14791T-SRB |
|---|---|---|
| type | - | |
| Pipe nominal diameter mm | Φ48.6 | Φ60.5 |
| Pipe outer diameter mm | 1½ | 2 |
| Bolt size | - | |
| shape | |
|
| Body material | reinforced polyamide | |
| Body exterior color | black | |
| Bolt, nut and washer materials | - | |
| Bolt Material | - | |
| Bush Material | Brass + Ni plating | |
| Nut Material | - | |
| Foot bolt and nut material | - | |
| Anti-slip rubber pad material | - | |
| Anti-slip rubber pad exterior color | - | |
| MB equivalent product | MB180-63081-SRB | MB180-65154-SRB |
