Frame support parts Major Specifications
Catalogs and Instruction Manuals
Threaded Tube End (SRB)

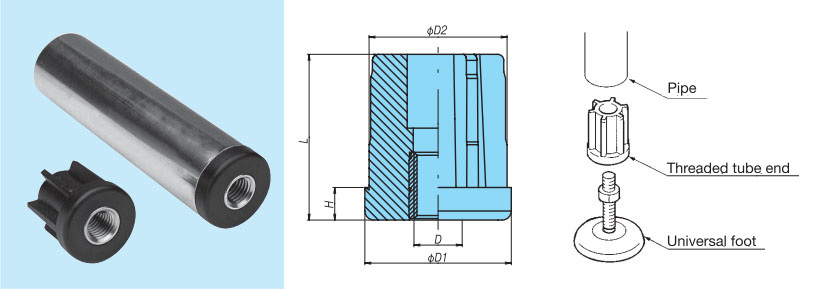

By inserting it into a pipe and combining it with a universal foot, it can be used as a leg for a conveyor frame.

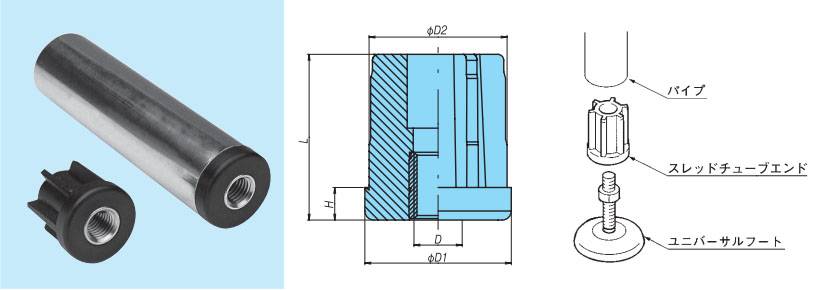

[Click to enlarge]
| Model number | Material | Pipe outer diameter used mm (nominal diameter) |
DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|
| Main unit | Bush | ||||||
| TP-C14767T-SRB | polyamide | Brass + Ni plating | 48.6 (1½) | DXF | Please contact us | Please contact us | |
| TP-C14791T-SRB | polyamide | Brass + Ni plating | 60.5 (2) | DXF | Please contact us | Please contact us | |
| Model number | D | D1 | D2 | H | L | MB equivalent product |
|---|---|---|---|---|---|---|
| TP-C14767T-SRB | M16 | 48 | 45.8 | 10 | 55 | MB180-63081-SRB |
| TP-C14791T-SRB | M16 | 60 | 58 | 12 | 50 | MB180-65154-SRB |
Note
1. Use a pipe with a thickness of 1.65 mm.
