Frame support parts Side top bracket
- Side Top Bracket
- The conveyor frame can be supported from the side.
-
Purpose
Supports the conveyor frame from the side.
Suitable for attaching trays to the bottom of conveyors or for conveyors with simple structures.
-
Usage image
[Click to enlarge]
[Click to enlarge]
Use as an attachment
[Click to enlarge]
For a list of frame support parts and applicable part combinations for each pipe, please refer to the applicable part combination table by pipe size below.
Side top bracket list
| Model number | TP-C14748NT-STB |
|---|---|
| type | - |
| Pipe nominal diameter mm | Φ48.6 |
| Pipe outer diameter mm | 1½ |
| Bolt size | - |
| shape | |
| Body material | reinforced polyamide |
| Body exterior color | black |
| Bolt, nut and washer materials | stainless steel |
| Bolt Material | - |
| Bush Material | - |
| Nut Material | - |
| Foot bolt and nut material | - |
| Anti-slip rubber pad material | - |
| Anti-slip rubber pad exterior color | - |
| MB equivalent product | MB199-59171-STB |
Side top bracket handling instructions
If you remove the partition plate from the side top bracket, you can use it as a mounting hole for a reinforcing round bar.

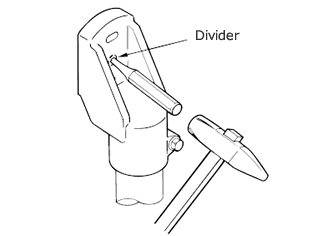

[Partition plate removal procedure]
Place the punch on the dotted line as shown in the right figure and tap lightly with a hammer to remove the partition.
