Frame support parts Major Specifications
Catalogs and Instruction Manuals
Side Top Bracket (STB)

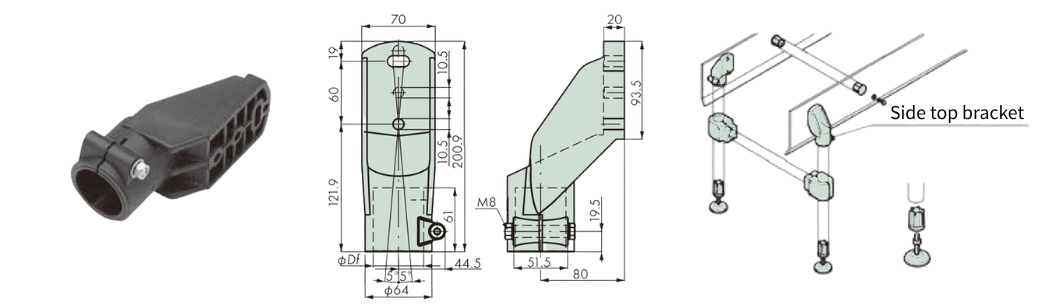

Supports the conveyor frame from the side. Use this when placing trays under the conveyor or for conveyors with simple structures.

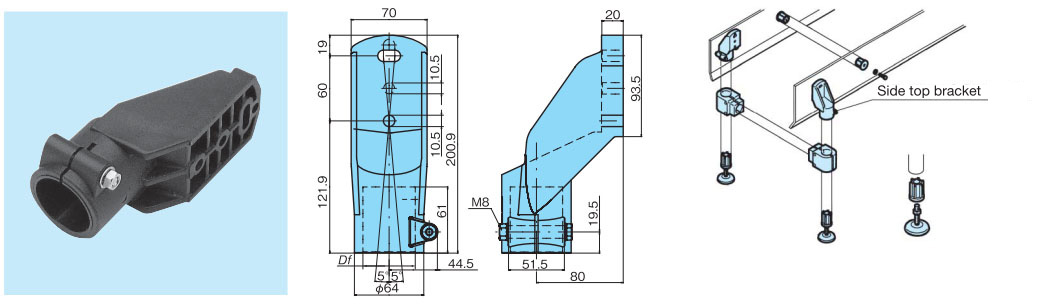

[Click to enlarge]
| Model number | Material | color | Pipe outer diameter used mm (nominal diameter) Df |
Bracket Possible tilt angle |
MB equivalent product | DXF Drawing data |
Price | Delivery | PDF Dimensions |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | bolt, nut, Washer |
|||||||||
| TP-C14748NT-STB | reinforcement polyamide |
stainless steel (SUS304) |
black | 48.6 (1½) | 5° | MB199-59171-STB | DXF | Please contact us | Please contact us | |
