End fixture
- End bolts and connecting links used in hanging devices, etc.
- By attaching it to end RS roller chain, a reliable suspension device can be achieved.
- It has strength equal to or greater than that of RS roller chain, and is connected to the chain with appropriate clearance, allowing it to fully demonstrate the performance of RS roller chain.
| ※ | CAD data will be provided via a link to CADENAS Web2CAD Co., Ltd.'s CAD Drawing Library site "PARTcommunity." |
| ※ | For inquiries about CAD data and PARTcommunity, please contact Cadenas Web2CAD. Cadenas Web to CAD Co., Ltd. TEL: (03)5961‐5031 FAX: (03)5961‐5032 |
Catalogs and Instruction Manuals
End bolt (for RS roller chain)
Bolts used to secure the chain to the device.
variety
[Click to enlarge]
| Model number | Applicable chain | L mm |
A mm |
B mm |
C mm |
M mm |
O mm |
D mm |
CW mm |
SW mm |
H mm |
Approximate Mass kg |
DXF Data 3D CAD Data |
Standard price | Delivery |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RS40EB | RS40-1 | 61.0 | 41.5 | 38 | 6.0 | M8 | 4.00 | 15 | 11.2 | 13.0 | 6.5 | 0.04 | DXF・3DCAD | お問合せください | お問合せください |
| RS50EB | RS50-1 | 72.5 | 48.5 | 44 | 7.5 | M10 | 5.12 | 19 | 13.8 | 17.0 | 8.0 | 0.07 | DXF・3DCAD | お問合せください | お問合せください |
| RS60EB | RS60-1 | 89.1 | 60.0 | 55 | 9.1 | M12 | 5.99 | 21 | 17.8 | 19.0 | 10.0 | 0.12 | DXF・3DCAD | お問合せください | お問合せください |
| RS80EB | RS80-1 | 117.1 | 79.0 | 73 | 12.1 | M16 | 7.98 | 28 | 22.6 | 24.0 | 13.0 | 0.27 | DXF・3DCAD | お問合せください | お問合せください |
| RS100EB | RS100-1 | 145.1 | 98.0 | 91 | 15.1 | M20 | 9.58 | 34 | 27.5 | 30.0 | 16.0 | 0.51 | DXF・3DCAD | お問合せください | お問合せください |
| RS120EB | RS120-1 | 173.1 | 117.0 | 108 | 18.1 | M24 | 11.15 | 40 | 35.5 | 35.5 | 19.0 | 0.86 | DXF・3DCAD | お問合せください | お問合せください |
Note
1. The SW dimension is designed to fit the wrench 2-face width.
2. The nuts are made to the old JIS B1181 (Type 1), and the spring washers are made to JIS B1251.
3. 3. It has a black oxide finish.

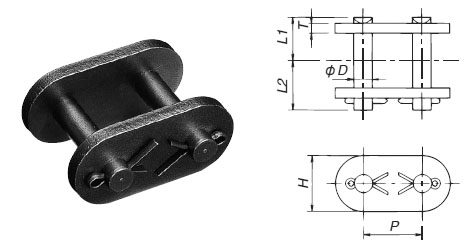

End bolt dedicated connecting link (for RS roller chain)
Connect the end of the chain to the end bolt.
variety
[Click to enlarge]
| Model number | Applicable chain | P mm |
H mm |
D mm |
T mm |
L1 mm |
L2 mm |
Approximate Mass kg |
DXF Data 3D CAD Data |
Standard price | Delivery |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RS40EB-JL | RS40-1 | 12.70 | 12.0 | 3.97 | 2.0 | 8.8 | 10.2 | 0.01 | DXF・3DCAD | お問合せください | お問合せください |
| RS50EB-JL | RS50-1 | 15.875 | 15.0 | 5.09 | 2.4 | 10.7 | 12.3 | 0.02 | DXF・3DCAD | お問合せください | お問合せください |
| RS60EB-JL | RS60-1 | 19.05 | 18.1 | 5.96 | 3.2 | 13.95 | 16.05 | 0.04 | DXF・3DCAD | お問合せください | お問合せください |
| RS80EB-JL | RS80-1 | 25.40 | 24.0 | 7.94 | 4.0 | 17.45 | 20.05 | 0.09 | DXF・3DCAD | お問合せください | お問合せください |
| RS100EB-JL | RS100-1 | 31.75 | 28.6 | 9.54 | 4.8 | 20.95 | 23.65 | 0.156 | DXF・3DCAD | お問合せください | お問合せください |
| RS120EB-JL | RS120-1 | 38.10 | 34.4 | 11.11 | 5.6 | 26.05 | 29.55 | 0.264 | DXF・3DCAD | お問合せください | お問合せください |
Note
1. If there is a risk of side force being applied, use an F-type connecting link.
2. Please contact us for connecting links and end links with different shapes.
