Plastic Series Long travel length & heavy load TKHP-R type
- Cable Carrier (CABLEVEYOR) with a maximum length of 1500m, Long travel length, high load capacity, and outdoor use
- - Can handle travel length up to 1500m.
- - The inner width can be set in 1mm increments, making it easy to assemble and replace parts.
- - Bolt connection provides excellent durability even in harsh environments.
- - The arms are made of aluminium, which is highly resistant to wear, providing excellent protection for the cable.
- ・Consultation with us is required to select and order this product.
We also accept quotes and consultations only, so please fill out the inquiry form and contact us.
Catalogs and Instruction Manuals
Features
The built-in rollers enable a maximum travel length of 1500m.
Can be used outdoors or in harsh environments
Can be used outdoors where UV degradation occurs
The flat surface prevents debris from accumulating, reducing the risk of malfunctions
High frequency and high speed driving possible
Roller-type rolling structure ensures smooth running
The rollers are designed to be resistant to clogging and require no maintenance.
Reduces the risk of machine stoppage due to arm coming off
The bolted connection eliminates the risk of the arm or lock stay coming off.

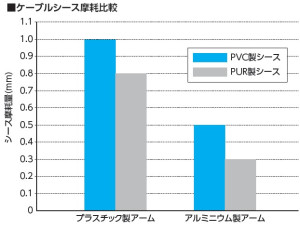

Cable is less prone to wear
Uses an aluminum arm with excellent wear resistance
Reduces risk of cable damage compared to plastic
Reduce workload
The link connections are fixed with bolts, making assembly and disassembly reliable and easy.
No need to apply force like with snap fitting
The inner width can be set to suit the space required by the customer.
The aluminum arm allows the inner width to be adjusted in 1mm increments.
Comparison with conventional methods (cable reel method and curtain rail method)

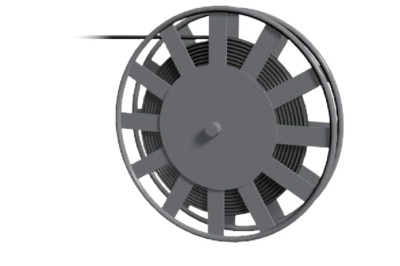

Replacement for cable reel system
 |
 |
 |
| Cable reel system | TKHP-R Series | |||
|---|---|---|---|---|
| Large number of parts make it difficult to maintain |
 |
|
Maintenance-free |  |
| Reel drum space required |
 |
Compact installation possible |  |
|
| Dedicated motors and Control unit required |
|
No power source or control panel required (Only installed in the moving part) |
|
|
| Limited to low speed and low acceleration |  |
Can handle high speeds and high accelerations |  |
|
| Damage to the cable is difficult to notice Custom cable makes repair difficult |
Easy cable inspection and replacement | |||
| The cable is always under tension | Minimal stress on the cable | |||
| The cable is long (required for travel length) | The cable is short (about half travel length) | |||
| Requires a customized dedicated cable (Power cable and control cable combined) Difficult to add cables |
Can protect a wide variety of cables Can also accommodate optical fibers and thin cables Easy to add cables |
|||

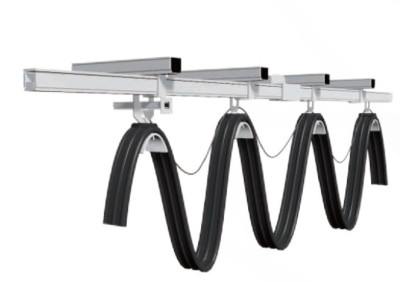

Replacement for curtain rail system
 |
|
|
| Curtain rail system | TKHP-R Series | |||
|---|---|---|---|---|
| Difficult to replace the cable |  |
|
Easy cable inspection and replacement |  |
| Vulnerable to strong winds |  |
Strong wind resistance |  |
|
| Limited to low speed and low acceleration |  |
Can handle high speeds and high accelerations |  |
|
| Cable bending restrictions It is not costly and the load is heavy |
 |
Minimal stress on the cable |  |
|
| Many consumable parts | Maintenance-free | |||
| Hanging space required | Compact installation possible | |||
| The cable is long (requires 130% of the operating stroke) | The cable is short (about half travel length) | |||
| Dedicated cable required | Can protect a wide variety of cables Can also accommodate optical fibers and thin cables Strong wind resistance No power source or control panel required (Only installed in the moving part) |
|||

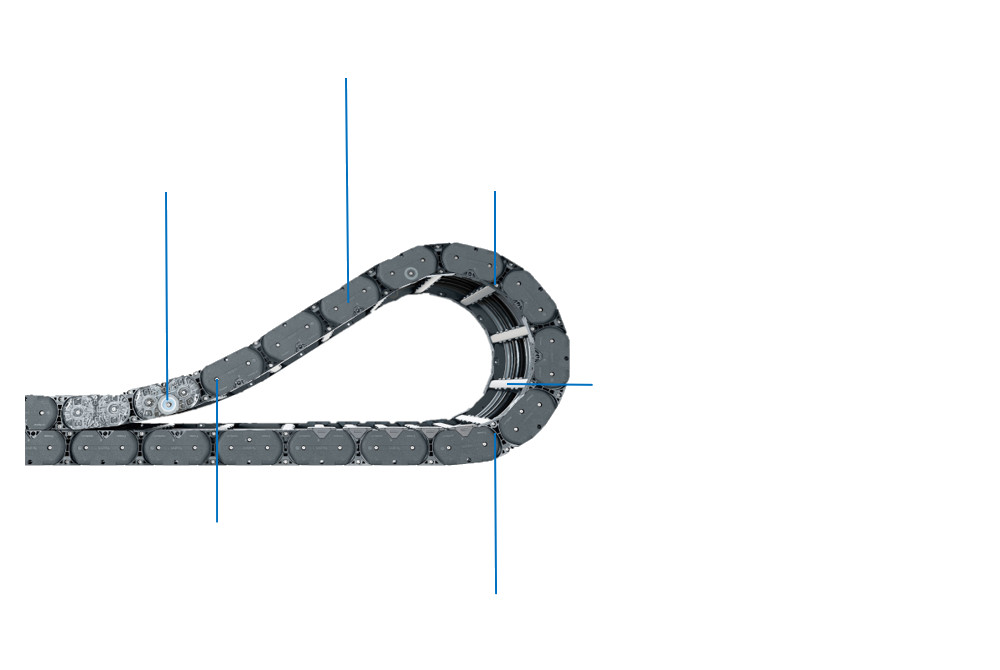

Structure
(1) Arm (stay) (made of aluminum)
(Size can be changed in 1mm increments)
(2) Links (plastic)
(3) Built-in roller
(4) Partition plate
(5) Sliding shoe
*Cannot be used in conjunction with the optional built-in roller
(6) Bolts (stainless steel)
(7) Mounting bracket (stainless steel)
Accessories
*We have a wide range of accessories available. We will suggest the best one to suit your usage conditions.

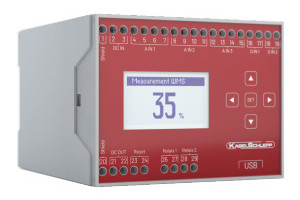

Monitoring System
Monitors the pushing and pulling force of Cable Carrier (CABLEVEYOR).
It can be used as an automatic emergency stop system.
Cable
This cable is ideal for operating Long travel length
in Cable Carrier (CABLEVEYOR) mode.

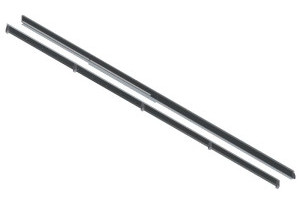

Guide channel
It guides Cable Carrier (CABLEVEYOR) so that it can operate without meandering.
(steel or stainless steel)
Installation and after-sales service
We provide installation work and installation confirmation.
There may be some restrictions due to site conditions and customer requests, but we will consult with you to find the best way to handle the situation.
After-sales service is also available after purchasing the product.
Please take advantage of our various after-sales services (TSUBAKI ProService), including handling support, inspection and diagnostic services.
Product List
*Click to display detailed information.
| Cables ・Hose Maximum Outer Diameter mm |
Inner Height mm |
Inner width mm |
bending radius mm |
Pitch mm |
Product name |
|---|---|---|---|---|---|
| 46 | 58 | 100～800 | 240・300・350・400 | 85 | TKHP85-R |
| 73 | 92 | 100～800 | 250・310・360・500 | 90 | TKHP90-R |
