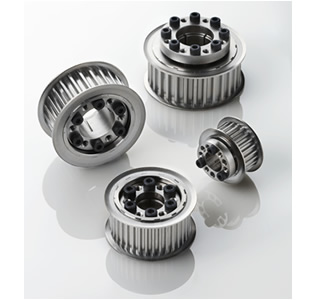

Lock Belt Sprockets S Type

The most standard type of Lock Belt Sprockets
*Strong fastening allows use with Ultra PX Belt
*Flat mounting is lightweight and space-saving
*The pulley body is made of extra-super duralumin "S-type aluminum" and electroless nickel-plated type are also available.
* Effective in further reducing weight and inertia

Features

* Strong, non-backlash connection between shaft and pulley.
*No need for keys or axial retainers, positioning and phase alignment can be easily performed.
*Easy to install and remove with only a few bolts.
* Easy ordering by model number. No need to create a shaft bore machining drawing.

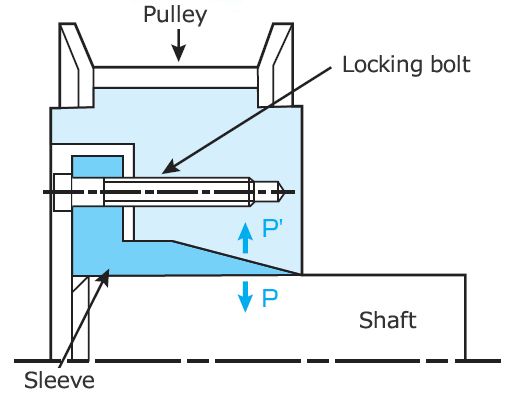

1. Fastening Principle

The inner diameter of Belt Sprockets and the outer diameter of the sleeve are tapered, and by tightening the tightening bolts,
Belt Sprockets move by sliding on a tapered surface.

At this time, a wedge action generates forces P and P' that press against the shaft and the inner surface of the tapered surface.
This P and P' force generates a frictional force that tightly fastens Belt Sprockets and shaft together.

*Click to enlarge the illustration

2. Lock Belt Sprockets S type, plated

The S-type Lock Belt Sprockets is plated with electroless nickel plating.

- The pulley body and sleeve are electroless nickel plated, and the bolts are specially coated.
- In addition to strong, zero-backlash fastening, it also has improved corrosion resistance and dry fastening that does not require lubrication.

Catalogs and Instruction Manuals

カタログデータ(日本語)

Product model number list

*Click on the model number to display detailed information.

type	Pitch mm	Material	Basic model number	Tooth number range	Belt width mm
type	Pitch mm	Material	Basic model number	Tooth number range	10	15	25	40	60
rock Pulley S	2	The C-type Lock Belt Sprockets supports a pitch of 2 mm.
	3	The C-type Lock Belt Sprockets and N-type Lock Belt Sprockets are compatible with a pitch of 3 mm.
	5	carbon steel	P5M10AF-□S□□□ P5M10BF-□S□□□	24T～72T	○
			P5M15AF-□S□□□			○
			P5M25AF-□S□□□				○
		aluminum	P5M10AF-A-□S□□□ P5M10BF-A-□S□□□	24T～60T	○
			P5M15AF-A-□S□□□			○
			P5M25AF-A-□S□□□				○
		Plating specifications	P5M10AF-□S□□□-K	25T～72T	○
			P5M15AF-□S□□□-K			○
			P5M25AF-□S□□□-K				○
	8	carbon steel	P8M15AF-□S□□□ P8M15BF-□S□□□	20T～72T		○
			P8M25AF-□S□□□ P8M25BF-□S□□□				○
			P8M40AF-□S□□□ P8M40BF-□S□□□					○
			P8M60AF-□S□□□ P8M60BF-□S□□□	28T～72T					○
		aluminum	P8M15AF-A-□S□□□	20T～60T		○
			P8M25AF-A-□S□□□	20T～60T			○
			P8M40AF-A-□S□□□	24T～60T				○
		Plating specifications	P8M15AF-□S□□□-K	20T～72T		○
			P8M25AF-□S□□□-K	20T～72T			○
			P8M40AF-□S□□□-K	24T～72T				○
			P8M60AF-□S□□□-K	26T～72T					○
	14	carbon steel	P14M40AF-□S□□□ P14M40BF-□S□□□	28T～72T				○
		carbon steel	P14M60AF-□S□□□ P14M60BF-□S□□□	28T～72T					○
		aluminum	---
		Plating specifications	P14M40AF-□S□□□-K	28T～50T				○
		Plating specifications	P14M60AF-□S□□□-K	28T～50T					○
