PX Belt

Product Photos
  • With the release of PX Belt RC Type, PX Belt will be sold while supplies last.
    Learn more
  • Developing Synchronous Belts with higher performance
  • The use of a rational arc tooth profile based on precise meshing theory has resulted in Synchronous Belts with dramatically improved performance.
  • A wide range of sizes are available, helping to improve the performance of any device.

Features

  • *Rational meshing: A rational arc tooth profile is used, enabling high load transmission.
  • *Large tooth skipping torque: Large belt teeth provide high tooth skipping performance.

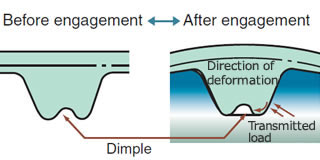

  • *Low noise: Special dimples on the tooth tips result in low noise.
  • *High precision: The meshing with the pulley is perfect, with both the tooth tip and tooth root contacting, enabling even more precise power transmission.

dimple

dimple

Just Touch Method

Just Touch Method

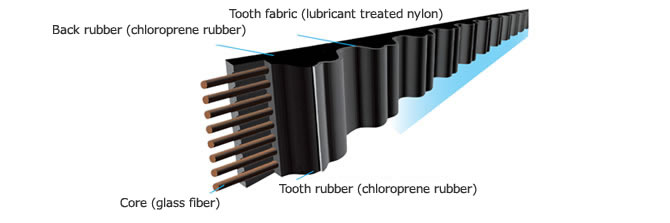

Structure

Structure

Catalogs and Instruction Manuals

Model number display example

BG 300 P 5M 10
｜
｜
｜		 ｜
Belt length
mm		 ｜
｜
｜		 ｜
Types
(pitch)		 ｜
Belt width
mm
Synchronous Belt P:PX
UP: Ultra PX

Product List

*Click to display detailed information.

Pitch
mm		 Basic model number Belt width mm
10 15 25 40 60 80 100 120
5 P5M10 ○
P5M15 ○
P5M25 ○
8 P8M15 ○
P8M25 ○
P8M40 ○
P8M60 ○
14 P14M40 ○
P14M60 ○
P14M80 ○
P14M100 ○
P14M120 ○
