Smart Replaceable Series Large Size Conveyor Chain Sprockets

Product Photos
  • Smart Replaceable Series is a sprocket with a tooth-replaceable structure for Large size conveyor chain.
  • Since only the tooth portion can be replaced without removing the shaft, the burden of replacement work is reduced.
  • Efficient maintenance is possible even under conditions where replacement was previously time-consuming, such as for equipment installed at high altitudes or equipment using multiple panels.
  • We offer a lineup of various types to suit different applications.

Features

Three "smart"

  • *The teeth can be replaced without removing it from the shaft.
  • * Indicator pins notifies​ you when it's time to replace it
  • *Three types available to accommodate a wide range of usage environments
Type Split Type Ring replacement teeth type Block replacement tooth type
Split Type Ring replacement teeth type Block replacement tooth type
Features

Divide the sprocket (tooth part and hub part) into two parts
Easy replacement

Split Type

  • - Sprocket split into two parts with no gaps in the shaft hole
  • - Install by tightening the bolts on the hub
  • ・Split sprockets can be replaced without removing other parts
  • ・Compatible with all roller types

Ring-shaped replacement teeth
Easy replacement

Ring replacement teeth type

  • ・Ring-shaped replacement teeth are fastened to the mounting base with bolts and nuts.
  • ・The teeth can be replaced without removing the mounting base from the shaft.
  • ・Compatible with all roller types

Wear-resistant block-shaped teeth
Easy replacement

Block replacement tooth type

  • - Block-shaped replacement teeth are fastened to the mounting base with bolts and nuts.
  • ・Block replacement teeth can be replaced without removing the mounting base
  • - Lightest weight per replacement tooth, making it easy to handle

Indicator pins ​(Replacement notification mark)

You can determine at a glance when it's time to replace the sprocket.


Conventional inspection

Conventional inspection

Determine the gap between the worn area and the tooth gauge

Indicator pins inspection​​

Indicator pins inspection<sup></sup>

The teeth will wear down and when they reach the mark, they are at the limit of their usable life.

Selectable tooth fastening methods

For ring-type and block-type replaceable teeth, you can choose between spot welding or HARDLOCK Nut fastening methods for the bolts and nuts on the teeth.

Spot welding installation

Spot welding installation

HARDLOCK nut​ installation

HARDLOCK nut<sup></sup> installation

HARDLOCK​ is a registered trademark of HARDLOCK Industry Co., Ltd.

Features of HARDLOCK Nut mounting specification

HARDLOCK Nut mounting specification requires no welding and is a safe installation method that does not involve the use of fire.
This nut is designed for replacement, offering high vibration resistance and streamlining the replacement process.
The reason it is resistant to vibration is due to the following anti-loosening principle.

Principle of preventing loosening

Principle of preventing loosening

It consists of two types of nuts, one with a protruding and one with a concave shape. First, the wedge-shaped, eccentrically machined convex nut, which acts as the tightening nut, is tightened, and then the perfectly round concave nut, which acts as the locking nut, is placed over it and tightened.
This creates an effect where the entire threaded portion of the convex nut is pressed against the bolt, while the entire threaded portion of the concave nut is pressed against the bolt thread on the opposite side.

[Quoted from the website of HARDLOCK Industry Co., Ltd.]
* HARDLOCK Nut mounting specification uses HARDLOCK Nut from HARDLOCK Industry.

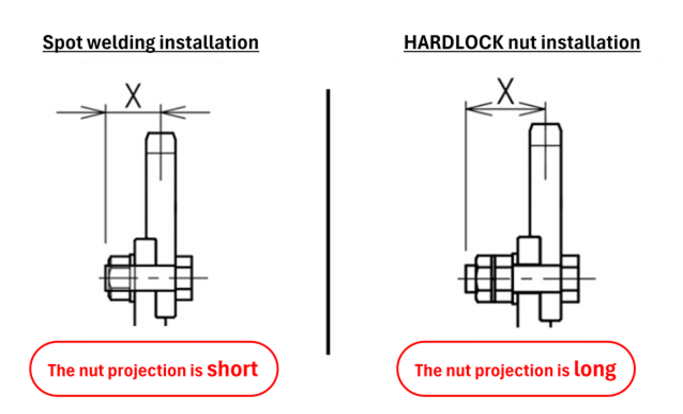

※Note
The amount of nut protrusion differs between spot welding and HARDLOCK Nut installation.
Please check that it does not interfere with equipment, chains, buckets, aprons, etc.

Nut protrusion

Note)
Please refer to the dimension table for the X dimension.
When using a chain with a GA4 attachment, interference will occur if the GA4 attachment is located on the side where HARDLOCK Nut is installed.
Please ensure that the GA4 attachment and HARDLOCK Nut mounting side are not the same.
You can also specify the installation location of HARDLOCK Nut; please contact us for details.

Solution Case Study using Smart Replaceable Series

Here are some examples of how Smart Replaceable series has been used to solve problems.

Case Study 1 | Significant Reduction in Workload and Costs

This design allows for the replacement of only the worn teeth without removing the sprocket shaft.
We achieved reductions in labor hours, equipment downtime, and costs.

View Case Study

Case Study 2 | Extending Lifespan and Improving Maintenance Efficiency

The adoption of specially shaped ring replacement teeth improves durability.
This is an example of how reducing the frequency of replacements led to increased efficiency in maintenance work.

View Case Study

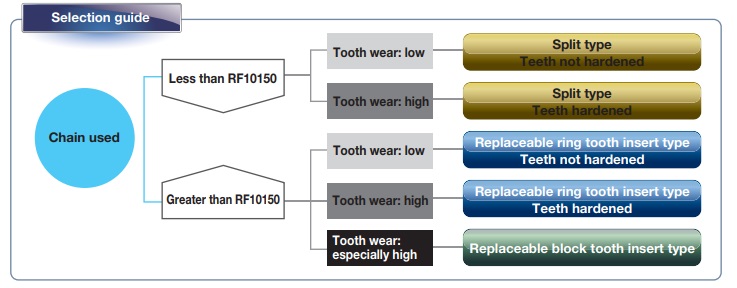

Please refer to the following guidelines for selecting the appropriate type based on your usage conditions.

Selection Guide

Catalogs and Instruction Manuals

Model number display example

Split Type

RF10150 S 10T - BW Q - S TS - E
｜
Compatible chain model number		 ｜
｜		 ｜
｜		 |
Hub format
BW:
Welded single hub
CW:
Welded dual hub		 ｜
Tooth tip hardening treatment
N: No tooth tip hardening
Q: Tooth tip hardening treatment		 ｜
｜
｜
｜
｜		 ｜
｜		 ｜
Indicator pins
Roller type Number of teeth |
Split type
Smart Replaceable Series

Ring replacement teeth type

RF26300 S 10T - BW1 Q - S RK - E
｜
Compatible chain model number		 ｜
｜		 ｜
｜		 |
Hub format
BW1:
Welded single hub
CW1:
Welded dual hub		 ｜
Tooth tip hardening treatment
N: No tooth tip hardening
Q: Tooth tip hardening treatment		 ｜
｜
｜
｜
｜
｜
｜		 ｜
｜		 ｜
Indicator pins
Roller type Number of teeth |
Ring-type replaceable teeth
RK: Spot welding
RN: HARDLOCK Nut
Smart Replaceable Series
* Replacement tooth model number (for replacement only)
RF26300 S 10T - RE Q - S RK - E
｜
Replacement		 |
RK: Spot welding
RN: HARDLOCK Nut
(One set includes replacement teeth for one sprocket, a bolt, washer, and nut.)
(Note) The drawing number of the initial delivered product is required to specify the specifications. Please provide the drawing number when placing your order.

Block replacement tooth type

RF12200 S 10T - BW1 Q - S BK - E
｜
Compatible chain model number		 ｜
｜		 ｜
｜		 |
Hub format
BW1:
Welded single hub
CW1:
Welded dual hub		 ｜
Tooth tip hardening treatment
N: No tooth tip hardening
Q: Tooth tip hardening treatment		 ｜
｜
｜
｜
｜
｜
｜		 ｜
｜		 ｜
Indicator pins
Roller type Number of teeth |
Block replacement tooth type
BK: Spot welding
BN: HARDLOCK Nut
Smart Replaceable Series
* Replacement tooth model number (for replacement only)
RF12200 S 10T - RE Q - S BK - E
｜
Replacement		 |
BK: Spot welding
BN: HARDLOCK Nut
(One set includes replacement teeth for one sprocket, bolts, nuts, and special adhesive.)
(Note) The drawing number of the initial delivery is required to specify the specifications. Please inform us of the drawing number when placing your order.
We are unable to manufacture replacement teeth in a quantity different from the number of teeth on the mounting base.

Product List

  • [Product Precautions]
  • - We may be able to manufacture sprockets with different tooth counts, hub diameters, etc., than those listed in the table below, so please contact us for details.
    - Please check that there is no interference between the outer diameter of the teeth and the bucket, apron, etc.
    - There is a gap between the joints of each replacement tooth.
    - The squares in the model numbers in the table indicate whether or not the tooth tips are hardened (Q/N) and the mounting type. The squares in the model numbers in the table indicate the number of teeth.
    - In the table, "-" indicates a variety that is not supported.
    - The approximate mass shown in the table is for roller type S. Please inquire about the mass for other roller types.
    Please refer to Instruction Manuals for installation and removal procedures.

Split Type

List of varieties and dimensions

*Click on the model number to display detailed information.

Size Chain pitch tooth width Roller
Type		 Hub type BW CW
Model
RF03075 75 12 R Basic model number RF03075R■T-BW□-STS-E RF03075R■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF03100 100 12 Basic model number RF03100R■T-BW□-STS-E RF03100R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF05100 100 18 Basic model number RF05100R■T-BW□-STS-E RF05100R■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF05125 125 18 Basic model number RF05125R■T-BW□-STS-E RF05125R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF05150 150 18 Basic model number RF05150R■T-BW□-STS-E RF05150R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF10100 100 22 Basic model number RF10100R■T-BW□-STS-E RF10100R■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF10125 125 22 Basic model number RF10125R■T-BW□-STS-E RF10125R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF10150 150 22 Basic model number RF10150R■T-BW□-STS-E RF10150R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF214 101.6 24 Basic model number RF214R■T-BW□-STS-E RF214R■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF430 101.6 18 Basic model number RF430R■T-BW□-STS-E RF430R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF450 101.6 22 Basic model number RF450R■T-BW□-STS-E RF450R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF650 152.4 22 Basic model number RF650R■T-BW□-STS-E RF650R■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF03075 75 9 F Basic model number RF03075F■T-BW□-STS-E RF03075F■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF03100 100 9 Basic model number RF03100F■T-BW□-STS-E RF03100F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF05100 100 12 Basic model number RF05100F■T-BW□-STS-E RF05100F■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF05125 125 12 Basic model number RF05125F■T-BW□-STS-E RF05125F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF05150 150 12 Basic model number RF05150F■T-BW□-STS-E RF05150F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF10100 100 15 Basic model number RF10100F■T-BW□-STS-E RF10100F■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF10125 125 15 Basic model number RF10125F■T-BW□-STS-E RF10125F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF10150 150 15 Basic model number RF10150F■T-BW□-STS-E RF10150F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF450 101.6 15 Basic model number RF450F■T-BW□-STS-E RF450F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF650 152.4 18 Basic model number RF650F■T-BW□-STS-E RF650F■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF03075 75 12 S Basic model number RF03075S■T-BW□-STS-E RF03075S■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF03100 100 12 Basic model number RF03100S■T-BW□-STS-E RF03100S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF05075 75 18 Basic model number RF05075S■T-BW□-STS-E RF05075S■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF05100 100 18 Basic model number RF05100S■T-BW□-STS-E RF05100S■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF05125 125 18 Basic model number RF05125S■T-BW□-STS-E RF05125S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF05150 150 18 Basic model number RF05150S■T-BW□-STS-E RF05150S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF10100 100 22 Basic model number RF10100S■T-BW□-STS-E RF10100S■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF10125 125 22 Basic model number RF10125S■T-BW□-STS-E RF10125S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF10150 150 22 Basic model number RF10150S■T-BW□-STS-E RF10150S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF205 78.11 28 Basic model number RF205S■T-BW□-STS-E RF205S■T-CW□-STS-E
Number of teeth 10/12 10/12
RF214 101.6 24 Basic model number RF214S■T-BW□-STS-E RF214S■T-CW□-STS-E
Number of teeth 8/10/12 8/10/12
RF430 101.6 18 Basic model number RF430S■T-BW□-STS-E RF430S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF450 101.6 22 Basic model number RF450S■T-BW□-STS-E RF450S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12
RF650 152.4 22 Basic model number RF650S■T-BW□-STS-E RF650S■T-CW□-STS-E
Number of teeth 6/8/10/12 6/8/10/12

Ring replacement teeth type

List of varieties and dimensions

*Click on the model number to display detailed information.

Size Chain pitch tooth width Roller
Type		 Hub type BW1 CW1
Model
RF10150 150 22 R Basic model number RF10150R■T-BW1□-SR□-E RF10150R■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF12200 200 28 Basic model number RF12200R■T-BW1□-SR□-E RF12200R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF12250 250 28 Basic model number RF12250R■T-BW1□-SR□-E RF12250R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF17200 200 40 Basic model number RF17200R■T-BW1□-SR□-E RF17200R■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF17250 250 40 Basic model number RF17250R■T-BW1□-SR□-E RF17250R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF17300 300 40 Basic model number RF17300R■T-BW1□-SR□-E RF17300R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF26250 250 45 Basic model number RF26250R■T-BW1□-SR□-E RF26250R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF26300 300 45 Basic model number RF26300R■T-BW1□-SR□-E RF26300R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF36300 300 55 Basic model number RF36300R■T-BW1□-SR□-E RF36300R■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF6205 152.4 28 Basic model number RF6205R■T-BW1□-SR□-E RF6205R■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF10150 150 15 F Basic model number RF10150F■T-BW1□-SR□-E RF10150F■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF12200 200 18 Basic model number RF12200F■T-BW1□-SR□-E RF12200F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF12250 250 18 Basic model number RF12250F■T-BW1□-SR□-E RF12250F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF17200 200 28 Basic model number RF17200F■T-BW1□-SR□-E RF17200F■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF17250 250 28 Basic model number RF17250F■T-BW1□-SR□-E RF17250F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF17300 300 28 Basic model number RF17300F■T-BW1□-SR□-E RF17300F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF26250 250 30 Basic model number RF26250F■T-BW1□-SR□-E RF26250F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF26300 300 30 Basic model number RF26300F■T-BW1□-SR□-E RF26300F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF36300 300 33.7 Basic model number RF36300F■T-BW1□-SR□-E RF36300F■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF6205 152.4 18 Basic model number RF6205F■T-BW1□-SR□-E RF6205F■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF10150 150 22 S Basic model number RF10150S■T-BW1□-SR□-E RF10150S■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF12200 200 28 Basic model number RF12200S■T-BW1□-SR□-E RF12200S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF12250 250 28 Basic model number RF12250S■T-BW1□-SR□-E RF12250S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF17200 200 40 Basic model number RF17200S■T-BW1□-SR□-E RF17200S■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF17250 250 40 Basic model number RF17250S■T-BW1□-SR□-E RF17250S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF17300 300 40 Basic model number RF17300S■T-BW1□-SR□-E RF17300S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF26200 200 45 Basic model number RF26200S■T-BW1□-SR□-E RF26200S■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF26250 250 45 Basic model number RF26250S■T-BW1□-SR□-E RF26250S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF26300 300 45 Basic model number RF26300S■T-BW1□-SR□-E RF26300S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF36250 250 55 Basic model number RF36250S■T-BW1□-SR□-E RF36250S■T-CW1□-SR□-E
Number of teeth 10/12 10/12
RF36300 300 55 Basic model number RF36300S■T-BW1□-SR□-E RF36300S■T-CW1□-SR□-E
Number of teeth 8/10/12 8/10/12
RF6205 152.4 28 Basic model number RF6205S■T-BW1□-SR□-E RF6205S■T-CW1□-SR□-E
Number of teeth 10/12 10/12

Block replacement tooth type

List of varieties and dimensions

*Click on the model number to display detailed information.

Size Chain pitch tooth width Roller
Type		 Hub type BW1 CW1
Model
RF10150 150 22 S Basic model number RF10150S■T-BW1Q-SB□-E RF10150S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF12200 200 28 Basic model number RF12200S■T-BW1Q-SB□-E RF12200S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF17200 200 40 Basic model number RF17200S■T-BW1Q-SB□-E RF12250S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF17250 250 40 Basic model number RF17250S■T-BW1Q-SB□-E RF17200S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF26200 200 45 Basic model number RF26200S■T-BW1Q-SB□-E RF17250S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF26250 250 45 Basic model number RF26250S■T-BW1Q-SB□-E RF17300S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF26300 300 45 Basic model number RF26300S■T-BW1Q-SB□-E RF26250S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
RF6205 152.4 28 Basic model number RF6205S■T-BW1Q-SB□-E RF26300S■T-CW1Q-SB□-E
Number of teeth 10/12 10/12
