Power Cylinder Eco series servo type

This electric cylinder is capable of high-speed, high-precision operation, making the most of the servo motor's performance.
A wide range of speeds and thrusts are possible. The lineup includes precision planetary reducers, which allows for a reduction in servo motor capacity, resulting in a lighter, more compact design and reduced initial costs.
We also provide mounts so that servo motors from various manufacturers can be attached. By coding the mounts, it is now possible to display the model number of the main unit.
Allowable thrust: 150N to 15,000kN
Nominal speed: 30-333mm/s

Features

- Maximizes servo motor performance

The combination of a highly efficient Ball screw and a highly rigid, lightweight disc coupling maximizes the performance of the servo motor.
- Achieves high stopping accuracy

High stopping accuracy is achieved by using a high-precision Ball screw. Repeated positioning accuracy is ±0.02 mm, and stopping accuracy is within ±0.1 mm. Accuracy is not affected even when a precision planetary reducer is installed.
・Effects of a precision planetary reducer

By reducing the size of the servo motor, peripheral devices such as amplifiers can also be made smaller, which reduces initial costs and also reduces power consumption, resulting in reduced running costs.
・Servo motor can be selected

We can install the servo motor of your choice. When requesting a quote, please let us know the servo motor manufacturer or mounting code.
・Achieves high speed and a wide range of thrust

It can be used at high speeds and with large thrust.

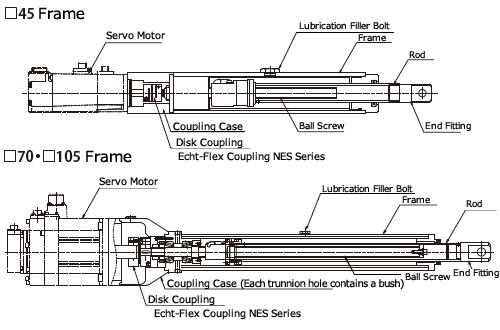

[Motor]
You can choose from servo motors from various manufacturers. The servo motors will be installed or supplied by the customer.

[Coupling]
This product uses our company's ECHT-FLEX coupling NES series, which is one of the lightest and most rigid in the industry, maximizing the performance of the servo motor.

[Ball screw]
A highly efficient Ball screw is used, which can withstand high frequency operation and is expected to have a long life.

Frame
An aluminum frame is used to reduce weight, and even when a magnetic sensor is installed, the cylinder's external dimensions remain the same.

Model number	Allowable thrust N {kgf}	speed mm/s	stroke mm	Screw diameter mm	screw Lead mm	frame size
LPES15F	150 {15.3}	300	100 200 300	Φ12	6	□45
LPES30F	300 {30.6}	300	100 200 300	Φ12	6	□45
LPES150F	1500 {153}	300	100 200 300 400 500 600	Φ20	6	□70
LPES300F	3000 {306}	300	100 200 300 400 500 600	Φ20	6	□70
LPES1500F	15000 {1530}	333	200 300 400 500 600 800 1000	Φ30	10	□105

*The speed is the value when inputting 3000 r/min. (However, for the LPES1500F only, the value is when inputting 2000 r/min.)

LPES	1500	R	5	T	10	G5L	A	SUJ
｜ Series Name Power Cylinder Eco Series Servo Type	｜ Allowable thrust □45 frames 15: 150N {15.3kgf} 30: 300N {30.6kgf} □70 frames 150: 1500N {153kgf} 300: 3000N {306kgf} □105 frames 1500: 15,000N {1,530kgf}	｜｜｜｜｜｜｜｜｜｜｜｜｜｜｜｜	｜｜｜｜｜｜｜｜	｜｜｜｜｜	｜ stroke 3： 300mm 10：1000mm	｜｜｜｜｜｜｜｜｜｜｜｜	｜｜｜｜｜｜｜｜	｜ option W: Waterproof IP65 (70 and 105 frames only) M: Rod anti-rotation specification (45mm square frame only) S: With 3 magnetic sensors U: U-shaped End fitting (no symbol indicates I-shaped End fitting) N: N-type End fitting (45mm frame only) J: Bellows (70 and 105mm frames only)
				Body shape T: Straight
			Reduction ratio 3：1 / 3 4：1 / 4 5：1 / 5 7：1 / 7 9：1 / 9 A：1 / 10				｜ Motor handling A: Customer installation B: Provided by customer
						｜ Mount Code G5L: Example: Mitsubishi Electric 750W
		Motor installation method F: Direct motor connection (no reduction ratio) R: With precision planetary reducer

Please use sizing content to select the motor to be used and the required specifications.

*Click on the model number to display detailed information.

Reduction ratio	speed Input Rotation Speed 3000 r/min (LPES1500F is 2000 r/min) time	stroke mm	Allowable thrust
Reduction ratio		stroke mm	150 N {15.3 kgf}	300 N {30.6 kgf}	1500 N {153 kgf}	3000 N {306 kgf}	15000 N {1530 kgf}
motor Direct connection	LPES15～300 300mm/s LPES1500 333mm/s	100	LPES15FT1	LPES30FT1	LPES150FT1	LPES300FT1	---
		200	LPES15FT2	LPES30FT2	LPES150FT2	LPES300FT2	LPES1500FT2
		300	LPES15FT3	LPES30FT3	LPES150FT3	LPES300FT3	LPES1500FT3
		400	---	---	LPES150FT4	LPES300FT4	LPES1500FT4
		500	---	---	LPES150FT5	LPES300FT5	LPES1500FT5
		600	---	---	LPES150FT6	LPES300FT6	LPES1500FT6
		800	---	---	---	---	LPES1500FT8
		1000	---	---	---	---	LPES1500FT10

・Special support is available to suit your usage conditions.
