Power-Lock AD-N Series
- Large capacity torque transmission type.
- -It has a transmission torque capacity 1.5 to 3 times greater than the AS series.
- * Centering function included. No need for troublesome boss step processing.
- * The boss does not move during assembly.
- *Assembly and removal requires careful work. Please refer to the video for details.
Standard Specifications
- · It has the same inner and outer diameter as the AS series, making it easy to replace multiple AS series units.
- ・Tsubaki is the only company that offers a lineup starting from Φ19. Leave the transmission of large torque on small diameter shafts to us.
- Applicable shaft diameter: Φ19 to Φ300
- トルク範囲：382～429000N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6
Electroless nickel plating specifications
- - The main body is electroless nickel plated, which does not peel off.
- - The tightening bolts have been given a special surface treatment that provides lubrication, so there is no need to apply oil during assembly.
- ・The dimensions and transmission torque are the same as the standard AD-N specifications. There is no torque reduction.
- - Suitable for applications requiring large torque, such as fixing the wheel axles of trolleys in clean rooms.
- Applicable shaft diameter: Φ50 to Φ100
- トルク範囲：4210～26500N・m
- Applicable tolerance: Shaft: h8 Hub bore: H8
- Applicable surface roughness: Ra1.6

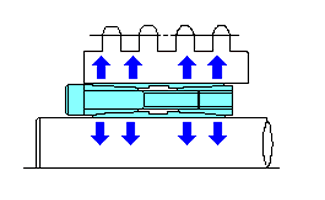

Structure
Double Taper

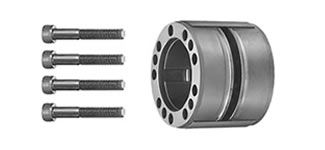

- The AD-N series has an integrated structure except for the bolts, and customers cannot remove anything other than the bolts.
Holes that do not have bolts inserted at the time of shipment are tapped holes.
Handling Instructions
Catalogs and Instruction Manuals
Model number display example
| PL | 019 | X | 047 | AD-N | - | KP |
| ｜ Shaft diameter |
｜ Outer diameter |
｜ Series Name |
｜ specification |
|||
| None: Standard specification KP: Electroless nickel plating |
||||||
Product List
*Click to display detailed information.
| Electroless nickel plating specifications |
|---|
| PL050X080AD-N-KP |
| PL055X085AD-N-KP |
| PL060X090AD-N-KP |
| PL065X095AD-N-KP |
| PL070X110AD-N-KP |
| PL075X115AD-N-KP |
| PL080X120AD-N-KP |
| PL085X125AD-N-KP |
| PL090X130AD-N-KP |
| PL095X135AD-N-KP |
| PL100X145AD-N-KP |
