Jaw-Flex Coupling LN Series (Elastomer Coupling)

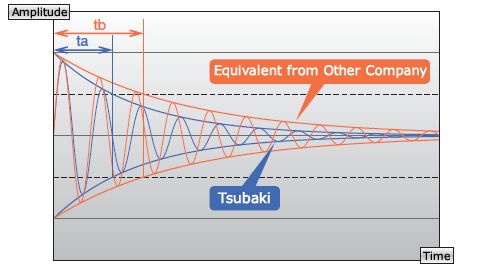

A new material has been used for the spider, achieving unprecedented vibration damping.
Torque can be transmitted without backlash, and servo motor drive provides excellent shock absorption.
・Applicable shaft diameter: Φ12mm to Φ42mm
Torque range: 60 to 405 Nm

Features

- Servo motor drive provides excellent vibration countermeasures and shock absorption during start-up and shutdown.
- The optimal combination of spider and hub allows torque to be transmitted without backlash, even though it is Jaw-Flex coupling.
-You can choose from two types of spiders: 98A, which has excellent vibration damping properties, and 64D, which has high torsional rigidity and excellent wear resistance.
- It has a simple structure consisting of two hubs and one spider, and the clamp-type shaft fastening method makes installation easy.
・Taper lock fastening is also available. Please contact us.

Model number	spider		Spider Performance Torque		Torsional rigidity N m/rad
Model number	hardness	color	Regular use (N・m)	Maximum (N・m)	Torsional rigidity N m/rad
LN24	98A	red	60	120	2200
LN24	64D	green	75	150	5400
LN28	98A	red	160	320	4000
LN28	64D	green	200	400	8800
LN38	98A	red	325	650	6600
LN38	64D	green	405	810	14600

・Clamp specifications

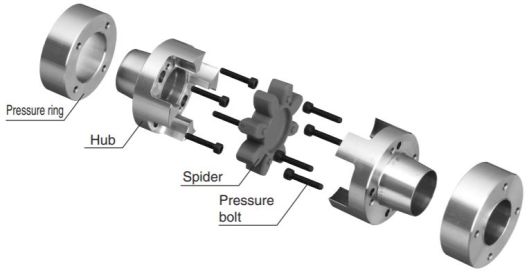

-Taper lock specification

*Click on the model number to display detailed information.
