DCBL Hypoid Motor

Product Photos
  • This DCBL gear motor has a hypoid gear head and an orthogonal right-angle shaft for compactness.
    Equipped with communication functions, it allows various controls.

  • Although it is called DCBL Hypoid Motor, it is a motor that is powered by an AC power source.
    *It is called DCBL Hypoid Motor because of its operating principle.

  • *The motor and driver must be used together.

banner

Features

  • -Excellent speed control

    The motor's built-in Hall IC detects the rotation speed and provides feedback to the driver, ensuring stable operating speed even when the load fluctuates.

  • -High efficiency

    DCBL Hypoid Motor use a permanent magnet in the rotor, so there is no need to pass an induced current through the stator like in induction motors, and because there are no sliding parts, they achieve efficiency equivalent to IE4 at the motor stand-alone level.

    High Efficiency Graph

    High efficiency means less loss, and the motor's compact size makes the overall motor length approximately 38% smaller than an induction motor.
    It also makes it possible to eliminate the need for a cooling fan, improving environmental resistance.

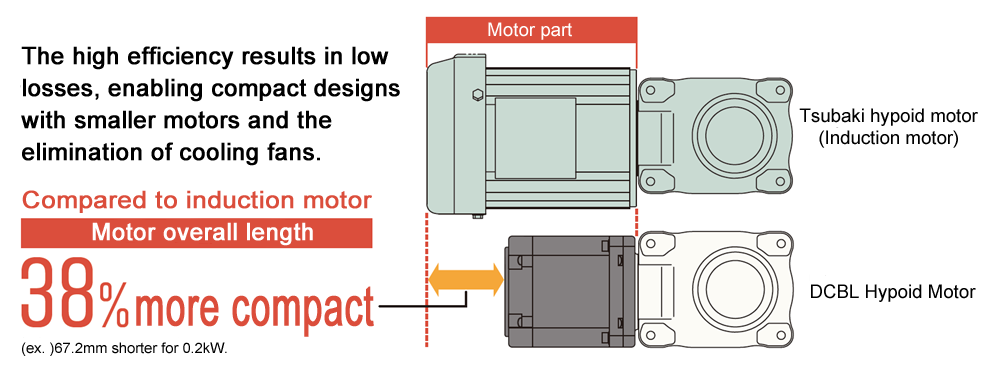

    Highly efficient volume

  • ・Tenacious torque

    Combined with Tsubaki's hypoid gear, it maximizes the tenacious torque inherent in a motor that does not step out.

  • ・Wide variable speed range

    The motor's rotational speed range is 100-2500 r/min, allowing for a wide range of speed changes from low to high, so this single unit can be used in devices that previously required changing the reduction ratio depending on the rotational speed.

  • -Built-in temperature sensor prevents burnout

    A temperature sensor is built into the motor to constantly monitor the winding temperature, protecting the motor from burnout. This allows for safe use even in applications where the motor is started frequently.

  • ・The optimum drive source can be selected depending on the application

    DCBL Hypoid Motor have been added as a third option, and it is now possible to select the optimum motor, such as a three-phase motor reducer or a servo motor reducer, depending on cost and required precision.

    DCBL Hypoid Motor reducer Three-phase motor reducer Servo motor reducer
    DCBL Hypoid Motor reducer Three-phase motor reducer Servo motor reducer

Model list

Motor Capacity Reduction ratio
0.2kW 1/10～1/60
0.4kW 1/10～1/50
0.75kW 1/10～1/50

Catalogs and Instruction Manuals

Model number display example

DCHM 020 - 22 U 10 S B
｜
｜
｜
｜
｜		 ｜
Motor Capacity		 ｜
Frame number		 ｜
｜
｜
｜
｜		 ｜
Reduction ratio		 ｜
｜
｜
｜
｜		 ｜
Specification Code
020：0.2kW
040：0.4kW
075：0.75kW 		10：1/10 B: With brake
No symbol: No brake
Series Name
DCBL Hypoid Motor		 Mounting Type
U: Face mount type
H: Hollow shaft type		 Shaft arrangement
T: Output shaft on both sides
S: Output shaft on one side
No symbol: Hollow shaft type

■ Tsubaki model No. navigation

Selectable model number:

View product details

*To generate the correct model number, select items in order from left to right.

series Motor Capacity Frame No. Mounting Type Reduction ratio Shaft arrangement Specification Code


20











series

DCHM: A DCBL brushless gear motor with a hypoid gear head that pursues compactness with right-angle shaft.

Motor Capacity

The motor capacity.

Frame No.

This indicates the size of the reducer. For most models, this is the same value as the output shaft diameter.

It is automatically determined from the motor capacity and reduction ratio.

Mounting Type

H: The output shaft is hollow.

U: The output shaft is a solid type and is face mounted.

Reduction ratio

Indicates the reduction ratio.

Shaft arrangement

T: A type with a solid output shaft on both sides.

S: When the mounting format is face mount (U), the solid output shaft protrudes toward the mounting surface.

No symbol: If the mounting format is a hollow shaft type (H), the shaft arrangement symbol is not required.

Specification Code

No symbol: If there is a motor but no brake, or if there is no motor and it is a double-shaft type, no specification symbol is required.

B: Add this when a motor is equipped with a brake.

Option symbol

・Cable position

M1: 90° Offset M1: 180° Offset M1: 270° Offset

・Hollow shaft hole diameter

　S1：Φ20　　S2：Φ25　　S3：Φ30

Product List

*Click on the model number to display detailed information. Open all Close all

DCBL Hypoid Motor 0.2kW (model number DCHM020~)

DCBL Hypoid Motor 0.4kW (model number DCHM040~)

DCBL Hypoid Motor 0.75kW (model number DCHM075~)

option

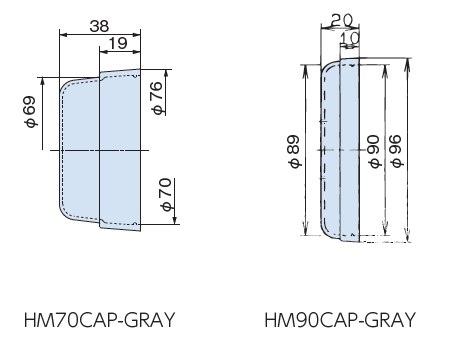

Shaft end cover

- For hollow shaft type, a cover is available to be attached to the end of the hollow shaft opposite the mounting end.
(Material: Polypropylene resin, Color: Light gray)


・Dimensions (unit: mm), PDF drawing, standard price and delivery list


Model number Applicable capacity, speed ratio PDF Drawings Standard price Delivery
HM70CAP-GRAY DCHM020-20H10～60 PDF お問合せください お問合せください
HM90CAP-GRAY DCHM040-30H10～50
DCHM075-35H10～50		 PDF お問合せください お問合せください

Torque arm

- For hollow shaft types, torque arms are available for on-shaft mounting. also compatible with adapters and double-shaft types. (material: SS400)

It can be installed in either position depending on the installation condition of the reducer.

・Dimensions (unit: mm), PDF drawing, standard price and delivery

Model number Applicable capacity, speed ratio A B C D H L R1 R2 R3 ΦZ1 ΦZ2 Recommendation
bolts		 Plate thickness
t		 PDF Drawings Standard price Delivery
HM100TA 60W 1/5～1/240
90W 1/5～1/240
0.1kW 1/5～1/120
0.2kW 1/5～1/60		 100 62 38 70 82 126 9 11 37 9 11 M10 4.5 PDF お問合せください お問合せください
HM150TA 0.1kW 1/160～1/480
0.2kW 1/80～200
0.4kW 1/5～1/50		 150 103 47 88 129 157 11 15 47 11 13 M12 6 PDF お問合せください お問合せください
HM200TA 0.1kW 1/600～1/1200
0.2kW 1/300～1/480
0.4kW 1/60～1/200
0.75kW 1/5～1/50		 200 142 58 106 171 188 12 17 47 13 17 M16 6 PDF お問合せください お問合せください
