Plastic top Chain TTUPM838H Type
- チェーンピッチ
25.4mm - For curved transport
- Special double-layer D-shaped plastic pins are used, which combine special engineering plastics and metal.
- The plastic pin type has the advantage of long life under wet conditions, and the magnetic force of the metal pin prevents the chain from floating up.
Features
-
・Special two-layer D-shaped plastic pins are used
We have adopted a "special two-layer D-shaped plastic pin" that combines plastic and metal pins.While retaining the properties of plastic, the magnetic force of the magnet prevents it from floating up.
The "special two-layer D-shaped plastic pin" uses a special engineering plastic for the sliding part with the chain, so the properties of the special engineering plastic in a water atmosphere suppress wear elongation, and you can expect a longer life for the chain.
It is 15% lighter and more energy-efficient than all-metal pins.

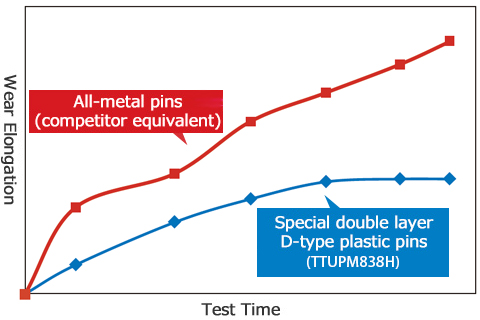

Comparison of wear elongation

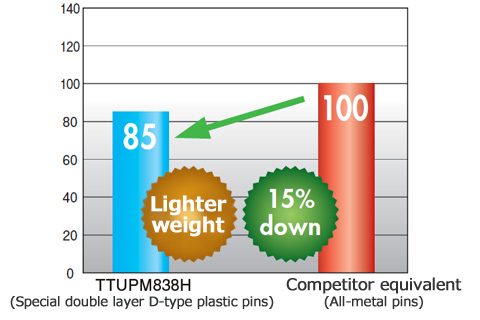

Reduced chain mass
*The mass of the chain with all metal pins
Comparison when set to 100

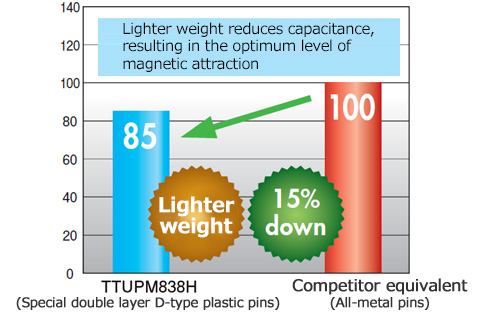

Reduces electricity consumption
*All-metal pins for electrical charge
Comparison when set to 100
*Click on each graph to enlarge.
-
・Structure of TTUPM838H type
-
・Bevedolphin series, ideal for transporting beverage containers
By combining the Bevedolphin series, conveyor design can be standardized.
-
・Combination of TTUPM838H and WT2515G-M types
*The illustration shows an example of installation.

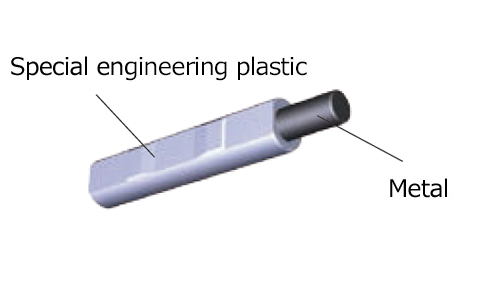

Special double-layer D-shaped plastic pin
Link and pin combination

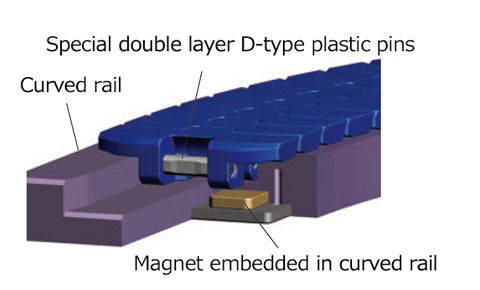

Rail and chain combination
The WT2515G-M type for straight running and the TTUPM838H type for curved transport can be installed on the same shaft.
Since the conveying level does not change, conveyor design is simple when arranging multiple strand. *The above diagram is an example of installation.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Medium | ● | ● | △ | ● | ● | △ | △ | △ | △ |
| Small | ● | ● | △ | ● | ● | △ | △ | △ | △ |
Purpose
- ■Conveying beverage containers
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For curved transport |
| Chain Type | - |
| - | |
| Main body chain specifications | - |
| Pin Type | Special double-layer D-shaped plastic pin |
| Pin Material | Special engineering plastic + metal |
| Pin Shape | Special double layer D pin |
| Top plate thickness mm | 8.7 |
| Pusher Material | - |
| Other features | - |
| Model | TTUPM838H |
 |
|
| Top plate width mm | 83.8 |
