Plastic top Chain Plastic Universal Chain TPUN Type
- チェーンピッチ
50mm - For curved transport
- The small side bending radius (R = 140) allows for free layout and is ideal for transport in narrow spaces.
- The pivot mis-insertion prevention structure prevents sprocket meshing problems caused by incorrect pivot insertion.
Features
-
- Uses a D-pin shape with a protrusion on one side
Compared to conventional knurled pin specifications, this prevents pins from coming loose and pin hole fitting cracks. It also prevents poor bending caused by the link legs collapsing when cut and connect.
-

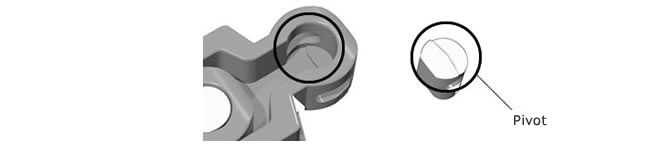

- Pivot mis-attachment prevention mechanism installed
The pivot and the back of the link are equipped with a mechanism to prevent mis-engagement. This prevents the pivot from being inserted in the wrong direction when assembling or cut and connect the chain, preventing poor engagement between the chain and sprocket.
-
・Stable transport
The plate structure reduces the gap between the links when bending sideways, making it suitable for stable transport of transported items.
-
-Minimum lateral bending radius 140 mm
The side bending radius is smaller than conventional Top chain (TTUP and TPU types), making it ideal for transport conveyors in tight spaces.
-
-Large allowable tension
allowable tension is approximately 1.8 times that of the TTUP type, making it ideal for high-load conditions.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | ● | △ | ● | ● | △ | ● | △ | △ |
| Medium | △ | ● | △ | ● | ● | △ | ● | △ | △ |
| Small | △ | ● | △ | ● | ● | △ | ● | △ | △ |
Purpose
- ■Plastic case and pallet transport
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 50 |
|---|---|
| Purpose | For curved transport |
| Chain Type | - |
| - | |
| Main body chain specifications | - |
| Pin Type | Stainless steel pin type |
| Pin Material | SUS304 |
| Pin Shape | D-pin |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | TPUN |
|
|
| Top plate width mm | 55.5 |
Note: Plastic pin type cannot be manufactured.
