Sprockets for WT1900 Series Plastic modular chain
- Sprockets for WT1900 Series Plastic modular chain
-
Purpose
This product transmits the motor's power to the chain.
Please attach it to the conveyor drive shaft before use.
-

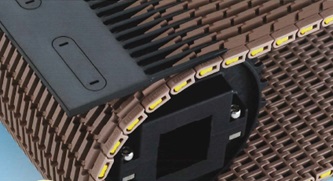

Usage image
[Click to enlarge]
[Click to enlarge]
List of sprockets for the WT1900 series Plastic modular chain
| type | split type | |
|---|---|---|
| Purpose | - | |
| Model number | WT-SW1900-25T40S | WT-SW1900-25T60S |
| Applicable chain type | WT1907-K | |
| Applicable chain pitch mm | 19.05 | |
| Applicable sprocket type | - | |
| Applicable guide flange | - | |
| Applicable hub | - | |
| shape |  |
|
| Body material | reinforced polyamide | |
| Material Grade | - | |
| Body exterior color | black | |
| Knob exterior color | - | |
| Bearing Material | - | |
| Seal Ring Material | - | |
| Structure | - | |
| Countersunk head screws | - | |
| Bolt and nut material | stainless steel | |
| Number of teeth | 25 | |
| effective number of teeth | - | |
| Shaft hole shape | square | |
| Shaft hole dimensions mm | □40 | □60 |
| pilot bore mm | - | |
| Maximum shaft bore diameter mm | - | |
| Width mm | - | |
| Length mm | - | |
| Chain side bending radius R mm | - | |
| type | Integrated type | |||
|---|---|---|---|---|
| Purpose | - | |||
| Model number | WT-S1900-17T | WT-S1900-21T | WT-S1900-24T | WT-S1900-25T |
| Applicable chain type | WT1907-K | |||
| Applicable chain pitch mm | 19.05 | |||
| Applicable sprocket type | - | |||
| Applicable guide flange | - | |||
| Applicable hub | - | |||
| shape |  |
|||
| Body material | Ultra-high molecular weight polyethylene | |||
| Material Grade | - | |||
| Body exterior color | green | |||
| Knob exterior color | - | |||
| Bearing Material | - | |||
| Seal Ring Material | - | |||
| Structure | - | |||
| Countersunk head screws | - | |||
| Bolt and nut material | - | |||
| Number of teeth | 17 | 21 | 24 | 25 |
| effective number of teeth | - | |||
| Shaft hole shape | Upon request, we will consider production. We will respond to your request. |
|||
| Shaft hole dimensions mm | Upon request, we will consider production. We will respond to your request. |
|||
| pilot bore mm | Φ20 | |||
| Maximum shaft bore diameter mm | - | |||
| Width mm | - | |||
| Length mm | - | |||
| Chain side bending radius R mm | - | |||
Model number display example
| WT | - | SW | 1900 | - | 25T | 40 | S |
| ｜ Model |
｜ ｜ ｜ ｜ |
｜ series 1900:WT1900 series |
｜ Number of teeth 25T: 25 |
｜ Shaft hole dimensions 40: Φ40mm |
｜ Shaft hole shape No symbol: circle S: square |
||
| Sprocket shape SW: Split type S: Integrated type (machined type) |
|||||||
