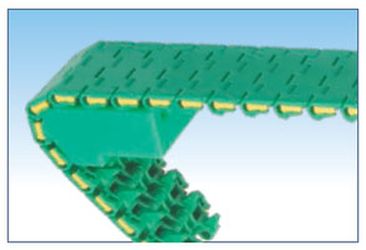

Plastic modular chain WT1515-W/WT1515G-W/WT1516-W type
- チェーンピッチ
15mm - For straight running
- Closed type
- Open type
- WT1510 series is ideal for replacing flat belt conveyors
- It is compatible with conveyor belts of 50mm and 100mm widths, making it ideal for replacing belt conveyors.
- It is ideal for transporting containers in the beverage industry as well as small containers and machine parts.
- Eliminate the labor required for troublesome conveyor design! Compatible with WinCS mini conveyor units that can be ordered simply by entering the model number.
Features
-
- Chain width suitable for replacing conveyor belts

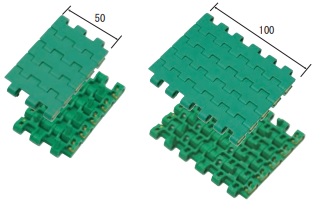

It is compatible with conveyor belts of widths of 50mm and 100mm, making it ideal for replacing belt conveyors.
-
- The use of slit pins makes cut and connect work smooth.
Chain widths of 50mm and 100mm use a "slit pin" with an integrated plug.
Chains can be easily cut and connect, reducing the amount of work required for chain installation and maintenance.
Chain width 50mm/100mm Chain width 150mm and up Slit pin specifications Main body + plug fastening method
*If the width exceeds 100mm, the main body pin + plug fastening method will be used.
-
・Comparison of Plastic modular chain conveyors and belt conveyors (orthogonal layout)
Compared to using a curved belt conveyor, it requires less space and fewer motors.

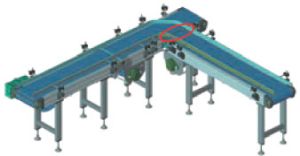

Plastic modular chain
Number of motors: 2 / Transfer adjustment: 1 location

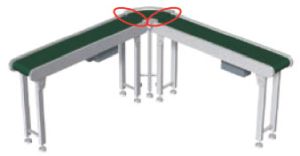

Belt conveyor example 1
Number of motors: 3 / Transfer adjustment: 2 locations
Belt conveyor example 2
Number of motors: 2 / Transfer adjustment: Height difference
○: Transfer adjustment points
-
・Nose bar in-line layout

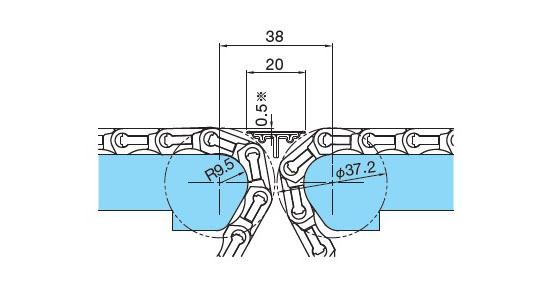

By using a nose bar, in-line joint layout is also possible.
Note) *The parts marked with an asterisk (*) may require adjustment depending on the transported items.
-
- Orthogonal layout
By combining it with the WT1500 series transover type (GTO type/TOD type chain), the excellent sliding properties of Plastic modular chain allow

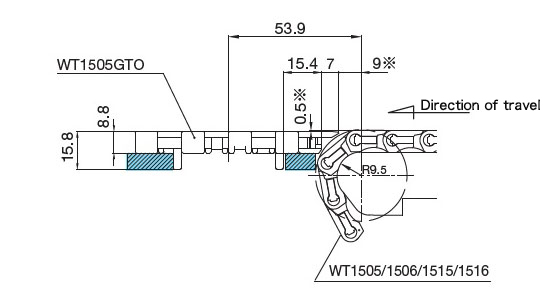

Orthogonal layout is also possible, with no remaining conveyed items.Orthogonal layout with WT1505GTO
Note) *The parts marked with an asterisk (*) may require adjustment depending on the transported items.

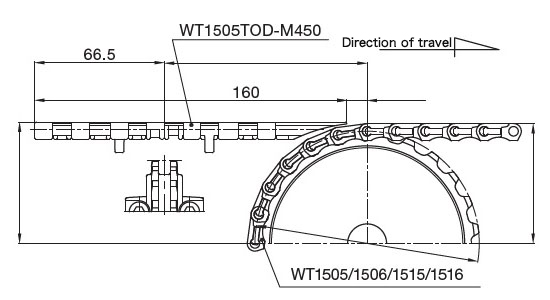

Orthogonal layout with WT1505TOD

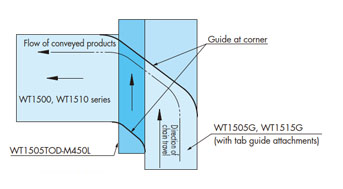

Orthogonal Layout Top View
-
-Meandering prevention attachment available
The WT1515G-W model comes with an attachment to prevent meandering, even at high speeds, and ensures stable transport even when transferring materials horizontally between conveyors.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | ○ | ○ | △ | ○ | ○ | ○ | ○ | ○ | ○ |
| Medium | ● | ● | △ | ● | ● | ● | ● | ●* | ● |
| Small | ● | ● | ○ | ● | ● | ● | ● | ●* | ● |
Purpose
- ■Transportation of small containers
- ■Container transportation in the beverage industry
- ■Transportation of machine parts
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 15 | ||
|---|---|---|---|
| Purpose | For straight running | ||
| Chain Type | Closed type | Open type | |
| - | |||
| Main body chain specifications | - | ||
| Pin Type | - | ||
| Pin Material | - | ||
| Pin Shape | - | ||
| Top plate thickness mm | - | ||
| Pusher Material | - | ||
| Other features | - | Meandering prevention attachment available | - |
| Model | WT1515-W | WT1515G-W | WT1516-W |
|
 |
 |
|
| Chain width mm | 50～2300 | 100～2300 | 50～2300 |
| Organizational Unit | Every 50mm | ||
