Plastic modular chain BTM8H type
- チェーンピッチ
25.4mm - For straight running
- Closed type
- Magnet type
- BT8 series with magnets embedded in the module link
- Ideal for suction transport of transported items (magnetic materials).
Features
- - Magnets embedded in the links attract the transported object (magnetic material), enabling inclined transport.
- - No flights are used, preventing damage caused by interference between the transported item and the flights.
- Note: As the magnet mounting position requires consultation with us, a special order is required.

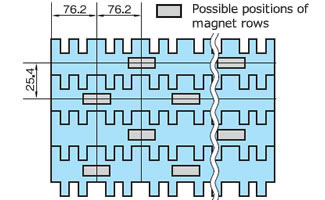

Magnet model diagram
- The magnet can be installed in any position possible and can be selected according to the application and transported items.
Note: Please refer to the diagram on the right for the installation position.
■Applications
Below are the industries we recommend:
It may not be possible to use this product depending on the conveying capacity (conveyor speed), conveyed items (weight, shape), environment, application, etc.
Please use this as a guide when making your selection.
If you have any applications or conditions not listed, please contact us.
Recommended industry/carrying size (●: Recommended ○: Usable △: Varies depending on carrying conditions)
| Transport size (weight) |
Industry | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Can manufacturing | beverage | tire | Machine parts | logistics | Medicines | Bakery and Food | secondary battery | semiconductor· Solar panel related |
|
| large | △ | △ | △ | ○ | △ | △ | ○ | △ | △ |
| Medium | ○ | ○ | △ | ● | △ | △ | ● | △ | △ |
| Small | ○ | ○ | △ | ● | △ | △ | ● | △ | △ |
Purpose
- ■Incline conveyance of metal parts
Product List
*Click on the format to display detailed information.
| Chain pitch mm | 25.4 |
|---|---|
| Purpose | For straight running |
| Chain Type | Closed type |
| Magnet type | |
| Main body chain specifications | - |
| Pin Type | - |
| Pin Material | - |
| Pin Shape | - |
| Top plate thickness mm | - |
| Pusher Material | - |
| Other features | - |
| Model | BTM8H |
|
|
| Chain width mm | 152.4～ |
| Organizational Unit | Every 152.4 mm |
