Plastic Top Chain TPUSR Type Dedicated Corner Disc
- Corner disc for TPUSR550/TPUSR826 plastic Plastic top chain
-
Purpose
Corner disc for TPUSR type.
If the curved layout requires a minimum lateral bending radius (R=150mm), we recommend using corner discs.
It is expected to reduce tension load and wear, and also suppress the occurrence of pulsation.
List of corner discs for Plastic top Chain TPUSR550/TPUSR826
| type | - | |||
|---|---|---|---|---|
| Purpose | Transport side | return-way | Transport side | return-way |
| Model number | TPUSR550-CD-R150C | TPUSR550-CD-R150R | TPUSR826-CD-R150C | TPUSR826-CD-R150R |
| Applicable chain type | TPUSR550, TPUSR550P | TPUSR826, TPUSR826P | ||
| Applicable chain pitch mm | 31.75 | |||
| Applicable sprocket type | - | |||
| Applicable guide flange | - | |||
| Applicable hub | - | |||
| shape | |
|||
| Body material | Ultra-high molecular weight polyethylene | |||
| Material Grade | - | |||
| Body exterior color | white | green | ||
| Knob exterior color | - | |||
| Bearing Material | - | |||
| Seal Ring Material | - | |||
| Structure | - | |||
| Countersunk head screws | stainless | |||
| Bolt and nut material | - | |||
| Number of teeth | - | |||
| effective number of teeth | - | |||
| Shaft hole shape | - | |||
| Shaft hole dimensions mm | - | |||
| pilot bore mm | - | |||
| Maximum shaft bore diameter mm | - | |||
| Width mm | - | |||
| Length mm | - | |||
| Chain side bending radius R mm | 150 | |||

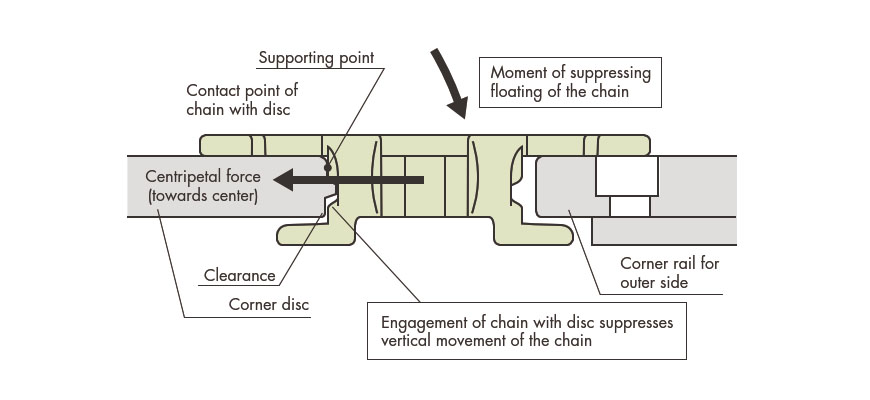

Floating prevention mechanism
Model number display example
| TPUSR826 | - | CD | - | R150 | R |
| ｜ Model |
｜ abbreviation CD: Corner disc |
｜ Chain side bending radius |
｜ R: For return-way |
