Major Specifications of Top chain accessories

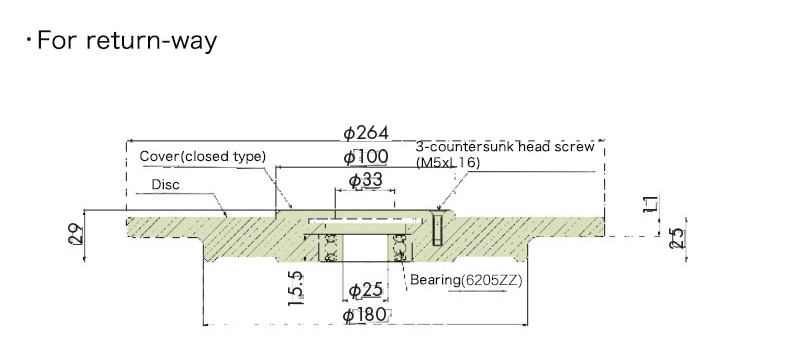

TPUSR826 dedicated corner disc: TPUSR826-CD-R150R
[Click to enlarge]
PDF outline drawing
DXF Drawing data
Please refer to the table below
(Click here for a list of DXF data)
Catalogs and Instruction Manuals
Applicable chain
TPUSR826, TPUSR826P
Major Specifications
| Applicable | For transport side | For the return side |
|---|---|---|
| Model number | TPUSR826-CD-R150C | TPUSR826-CD-R150R |
| Material | Made from ultra-high molecular weight polyethylene | |
| Appearance color | green | |
| Countersunk head screw material | Stainless steel | |
| Approximate mass kg | 1.0 | |
| Chain side bending radius mm | R150 | |
| Operating temperature range ℃ | -20～60 | |
| DXF Drawing data | DXF | DXF |
| Standard price | Please contact us | Please contact us |
| Delivery | Please contact us | Please contact us |
Note
1. This product is made to order.
2. If you require dimensions, bearings, materials, etc. other than those shown in the diagram above, please contact us.
3. It is recommended to use in a dry environment.
4. Stainless steel bearings are also available for use in environments where water is present.
